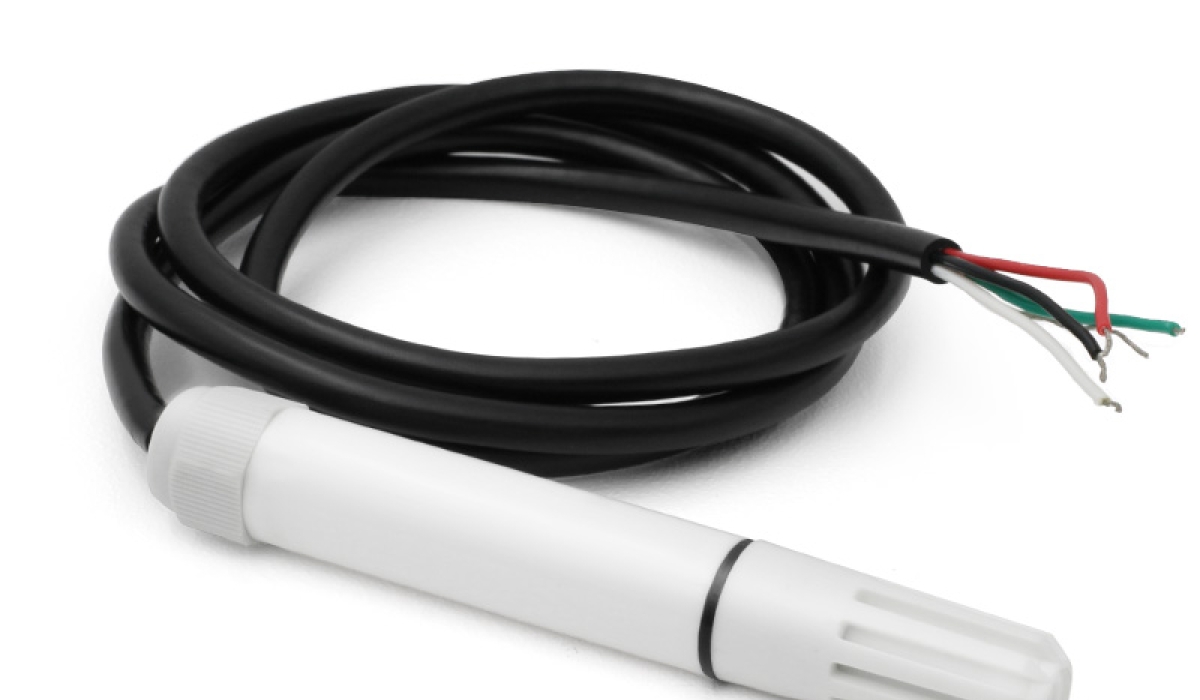

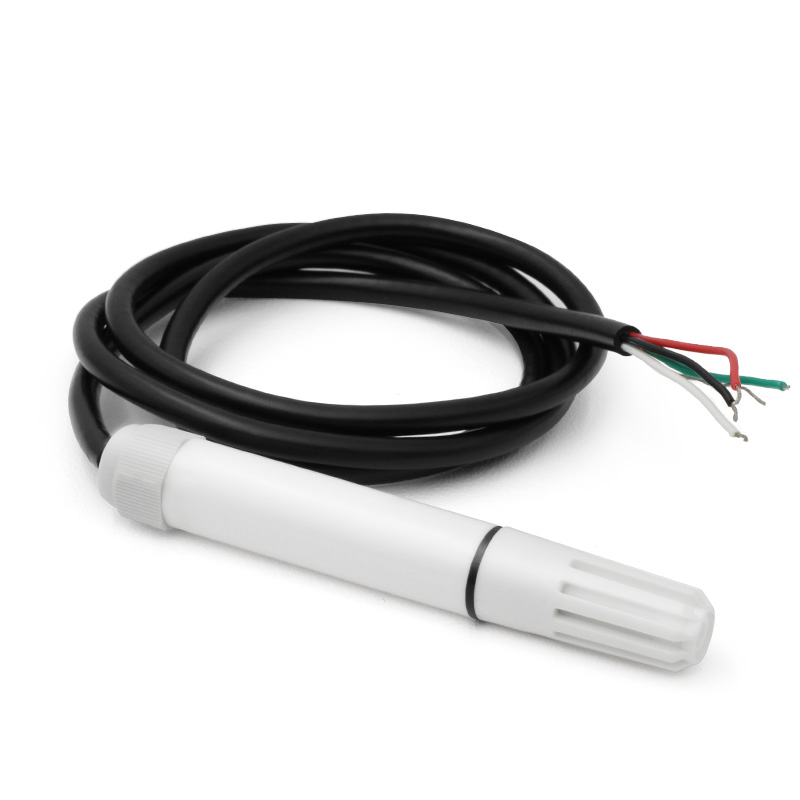

Temperature and Humidity Sensor Probe LFH51

LEFOO Temperature and Humidity Sensor Probe LFH51

Product Features

* Small size, easy installation

* Power supply and output with overvoltage protection and reverse polarity protection

* 12-36VDC wide range power supply

* High protection grade design, up to IP65

Product Description

LFH51 series temperature transmitter adopts high precision digital probe, with good long-term stability and anti-interference ability, compact size, simple installation and easy operation. There are two kinds of output options: voltage and RS485. It can be widely used in ventilation ducts, industrial workshops, warehouses and other places that need to measure temperature and humidity.

Technical Parameters

Temperature and Humidity Sensor Probe LFH51
Relative Humidity
Sensor Digital type
Measuring Range 0%~100%RH
Output RS485/Modbus,0~10VDC optional
Accuracy ±3%@ 20? & 60%RH

Temperature
Sensor Digital type
Output RS485/Modbus,0~10VDC optional
Accuracy ±0.3?@20?
Power Supply 12-36VDC
Shell Material PC shell
Work Temperature -40~85?,5%-95%RH(non-condensing)
Protection Grade IP65
