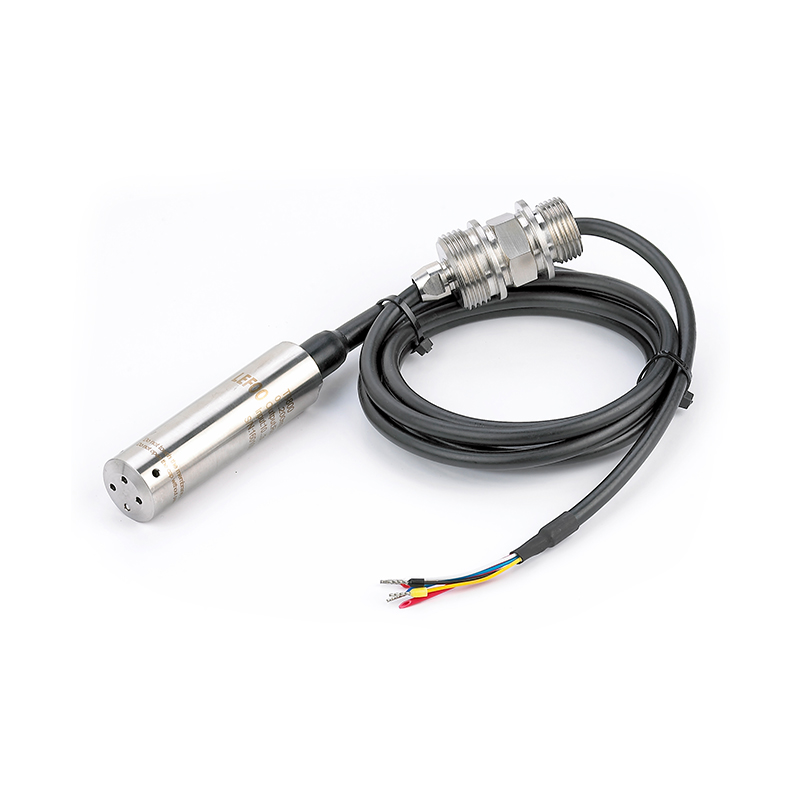

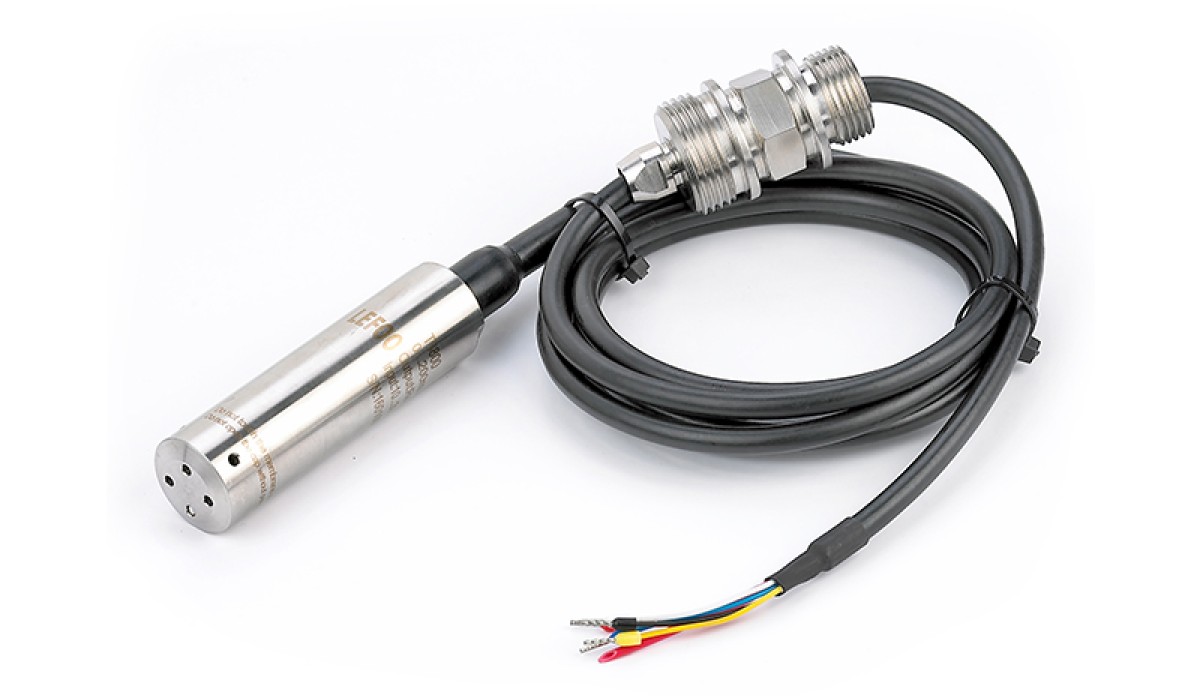

T3800 pressure transmitter is a product which is characterized by high reliability, high stability and digital output. It is widely used in testing gas and liquid pressure, such as water, oil, light hazardous liquid and gas. This product adopts 1Cr18Ni9Ti stainless steal structure and RS485 output.
Features and Application
Accuracy ±0.5%F.S; OEM is available; diffused silicone/ceramic resistance core; various of pressure range; RS485 digital output. It can be applied to constant pressure water supply, sewage disposal, chemo-metallurgy.
Specification
| MeasureRange | 0~2......200 mH2O |
| Overload Pressure | 1.5 times full scale |
| Broken Pressure | 3 times full scale |
| Accuracy | ±0.5%F.S |
| Stability | Typical 0.2%F.S per year |
| Operating Temperature | -40°C~85°C |
| Medium Compatibility | Corrosive medium compatible with stainless steel Cr18Ni9Ti |
| Signal Output | RS485 |
| Power Supply | 10~30Vdc |
| Insulation | 100M @50V |
| Electrical connection | Waterproof solid line sets |
| Pressure connection | Investment style,Threaded: M20×1.5, G1/4, G1/2, R1/2, NPT1/2 |
| Pressure type | Gauge G, Sealed gauge S |
| Response Time | 10ms |
| Electro Magnetic Compatibility | EM:EN50081-1/-2;EMS:EN50082-2 |
