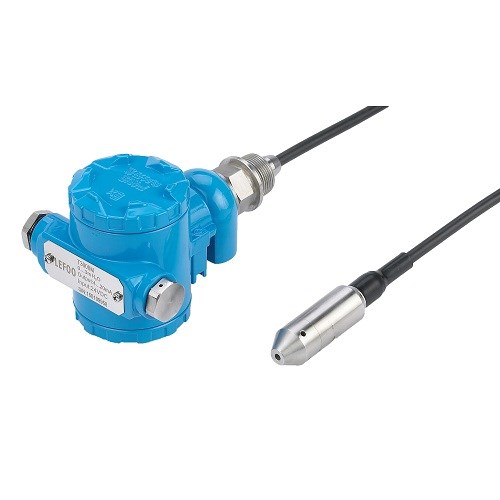

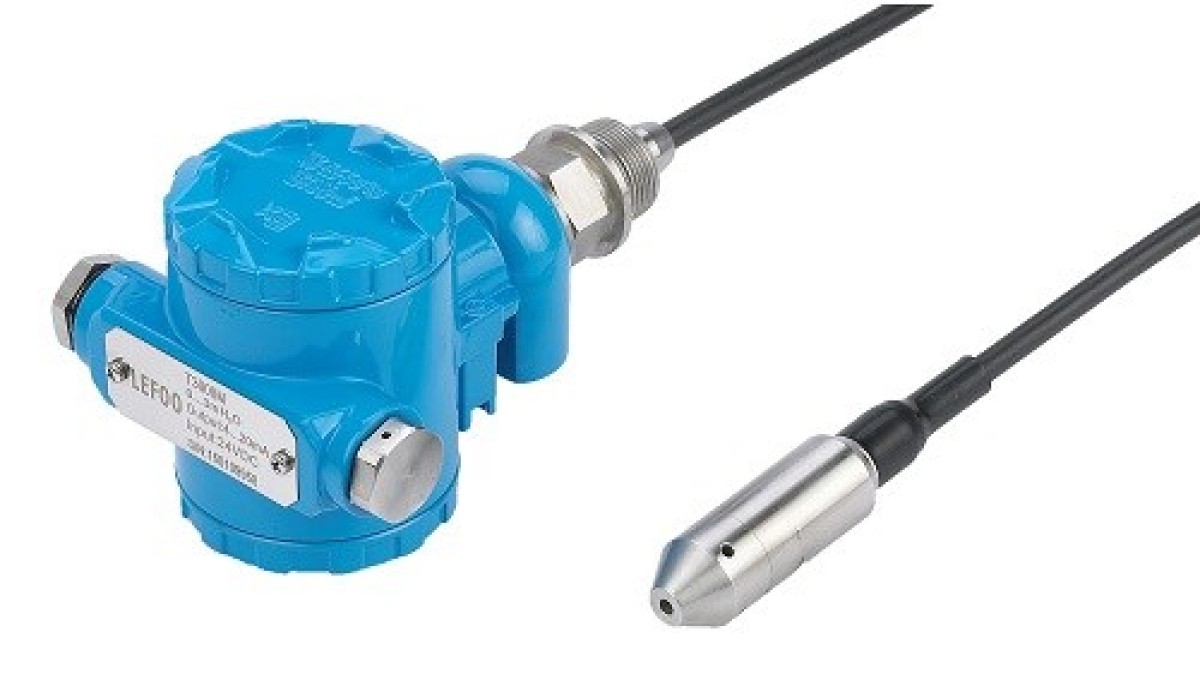

T3000M pressure transmitter is a separate type liquid level transmitter with high reliability, stability, accuracy, and compact size. It is widely used for level measurement of liquid in small diameter pipe and liquid storage tank, such as water, oil, and lightly corrosive liquid.
With 1Cr18Ni9Ti stainless steel housing, diffused silicon, amplifying and VI transmitter conversion circuit, it is convenient for calibration for zero point and full range and external programmable control of zero and measurement range.
According to different application, it can be equipped with dedicated ventilating cable which is wear resistant, oil resistant, anti acid and alkali and with high strength.T3000M is intrinsic safety, explosion proof and CE certificated. It is with non polar two wire current output and three wire DC or AC voltage output.
Features
±0.1?±0.25?±0.5%F.S accuracy
OEM available

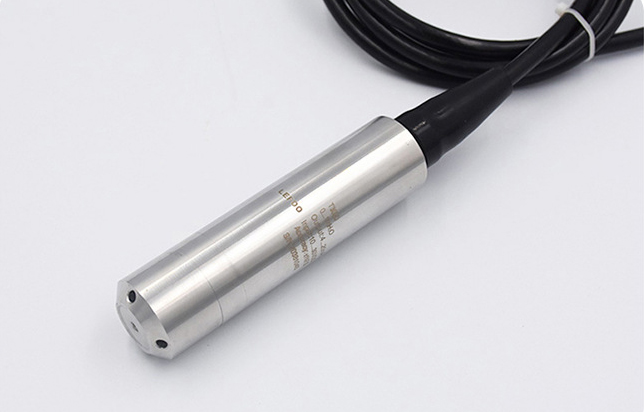

Separate type structure, With diffused silicon
Compact size with 24mm diameter
Various measurement range and signal output
Non polar two wire current output
Zero and full range
Application
Hydrological monitoring, Constant pressure water supply, Frequency water supply, Tail dam level measurement, Level measurement of liquid storage tank, Water saving irrigation, Circular fluid, Hydrology monitoring
Specification
| Measure Range | 0~1……200mH2O | ||
| Overload Pressure | 1.5times full scale | ||
| Broken Pressure | 3times full scale | ||
| Accuracy | ±0.1%F.S?±0.25%F.S?±0.5%F.S | ||
| Stability | Typical 0.1%F.S, Max 0.2%F.S | ||
| Operating Temprature | -40°C~85°C | ||
| Compensating Temprature | -10°C~70°C | ||
| Medium Compatibility | Corrosive medium compatible with stainless steel Cr18Ni9Ti,316L | ||
| Wires | Two-wire | Three-wire | |
| Signal Output | 4~20mA | 0/1~5Vdc | 0~10Vdc |
| Power Supply | 10~30Vdc | 6~24Vdc/ac | 11~30Vdc/ac |
| Load Resistance | (U-10)/0.02 | ?100k? | |
| Insulation | 100M @50V | ||
| Electric strength | 500V@60 second | ||
| Vibration/Impact | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms | ||
| Elecrical connection | five level protection.IP68 | ||
| Pressure Connection | Investment style: Transmission box wellhead connector sizeM27×1.5 | ||
| Response Time | 10ms | ||
| Pressure Type | Gauge G | ||
| Certificate | CE, Intrinsically safe E,Explosion-proof D | ||
| EMC | EMI:EN50081-1/-2 / EMS: EN50082-2 | ||
Ps: 1 box(10-100 pieces) minimum order.Quantity discounts.
