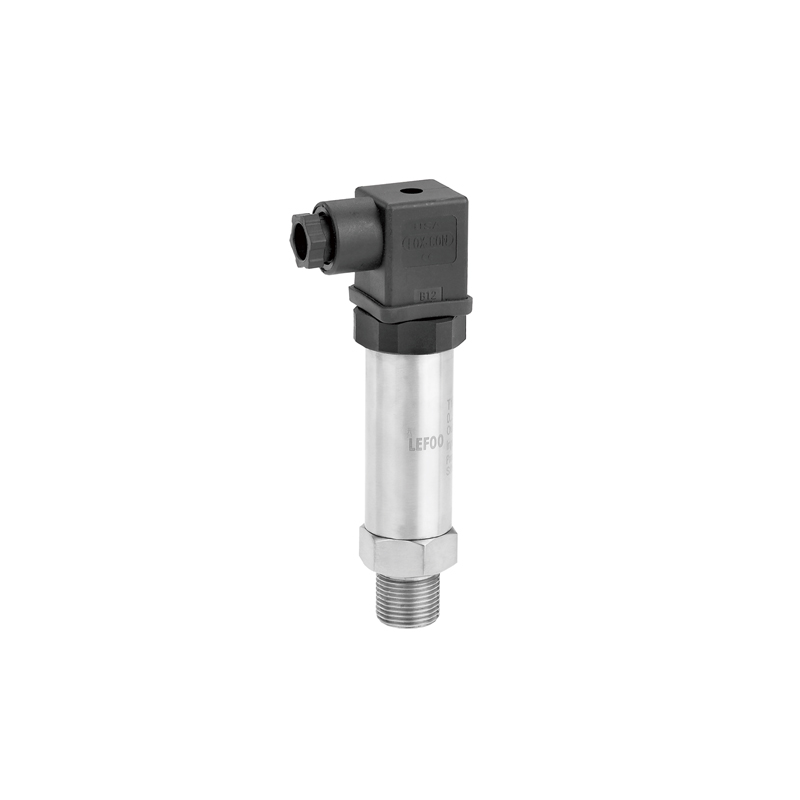

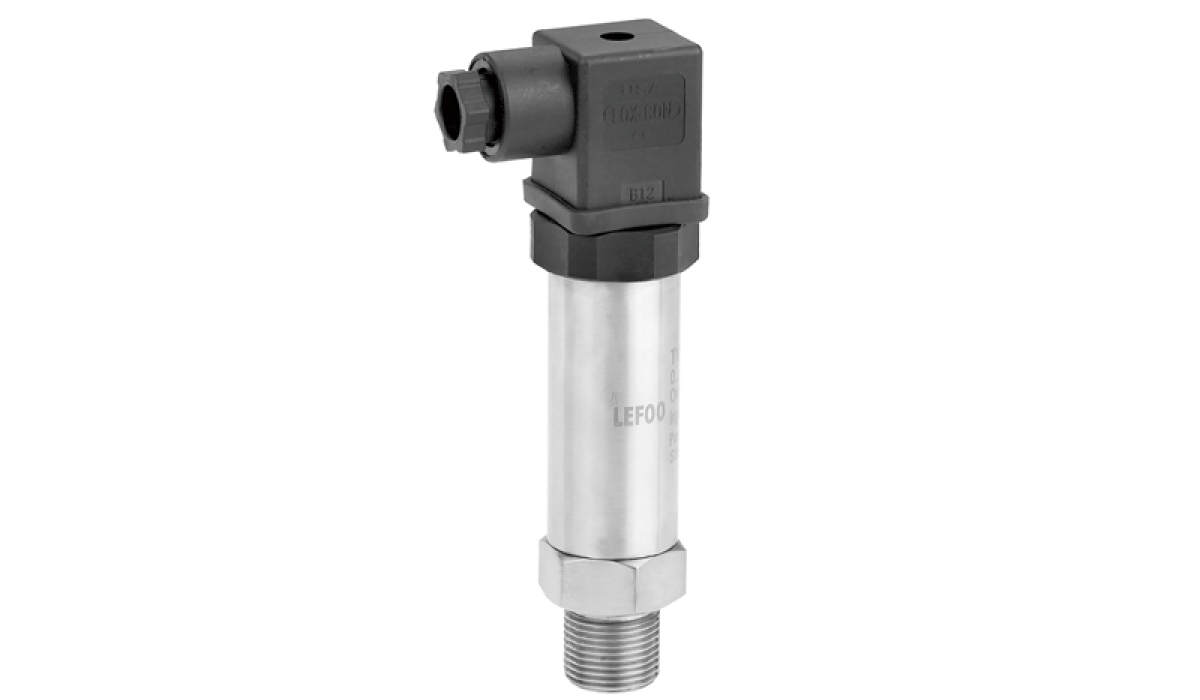

T1700 series pressure transducer is used for absolute measuring control, which has fully solved the problem of difficult vacuum measurement. All the existing pressure connections and electrical connections are available for T1700 series pressure transducer.
Features
Optional accuracy: ±0.25%F.S?±0.5%F.S
Can be customized of the brand for OEM use
Acceptable for MOQ from one unit
Flexible pressure ranges and output options
Non-polar two-wire current output
AC/DC voltage output
Applications
Atmospheric measurement, Aerospace and nautical field, Packing machinery, Petro – chemical, Meteorology monitoring, Automatic inspection system, Air pressure test in the mine ventilation system, high buildings management
| Measuring Range | Absolute pressure 0.01MPa……40MPa | ||
| Overload Capability | 1.5 times full scale | ||
| Burst Pressure | 3times full scale | ||
| Accuracy | ±0.25%F.S.,±0.5%F.S. | ||
| Stable | Typically 0.25%F.S., MAX:0.4%F.S | ||
| MediumTemperature Range | –40°C ~ 85°C (–40?~125? is available on request) | ||
| Compensated Temperature | –10°C ~ 70°C | ||
| Medium | compatible with stainless steel1Cr18Ni9Ti | ||
| Electrical overview | 2 wire | 3 wire | |
| Output | 4~20mA | 0~5V | 0~10V |
| Power Supply | 10~30Vdc | 6~24Vdc/10~36Vac | 11~30Vdc/20~36Vac |
| Load | (U-10)/0.02 | ?100k? | |
| Insulation reistance | 100M @50V | ||
| Electrical Connection | DIN43650, Protecting Class IP65 | ||
| GX16-7, Protecting Class IP45 | |||
| waterproof wire lead : Class5 ProtectingClassIP68 | |||
| Pressure Connection | M20×1.5,G1/2,G1/4,NPT1/4,NPT1/2 | ||
| Response time | 10ms | ||
| Electro Magnetic Compatibility | EN50081-1/-2 - EN50082-2 | ||
