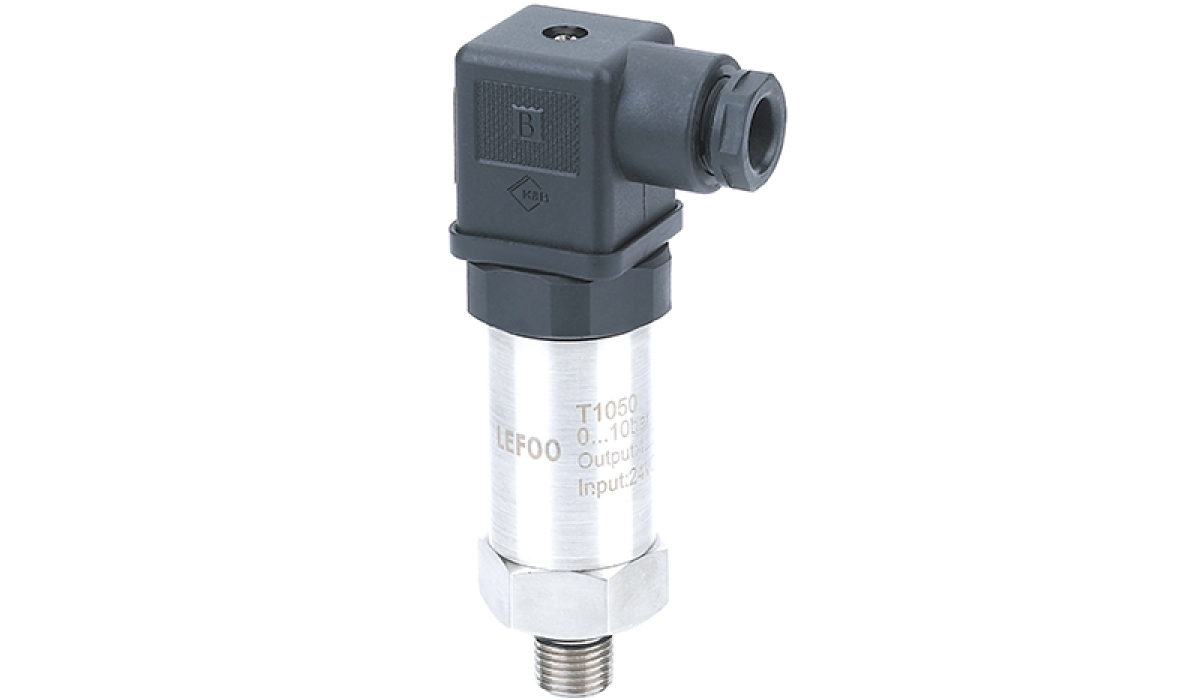

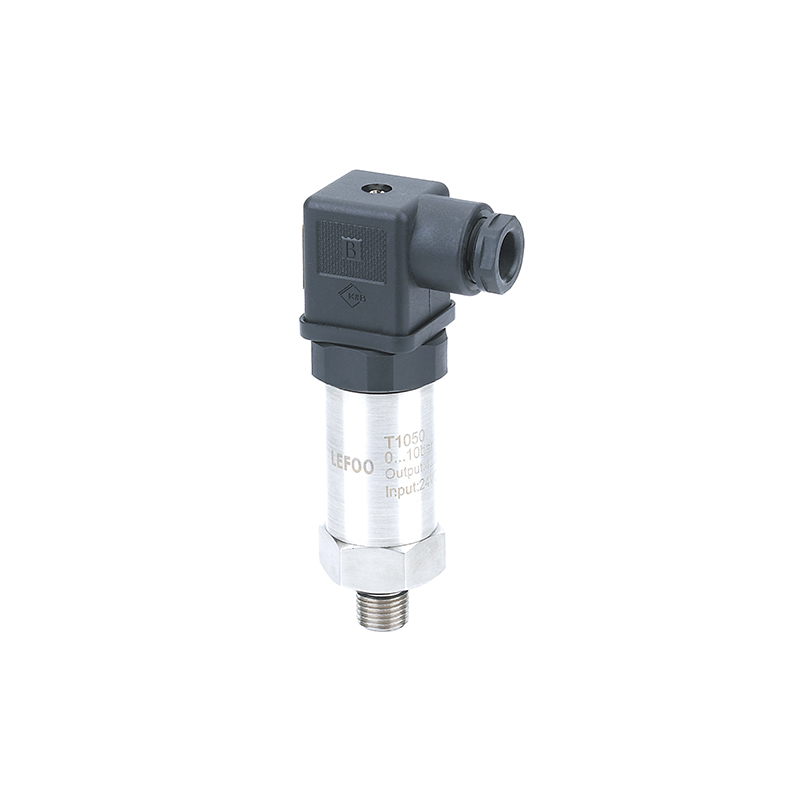

T1050 series are the cost effective products featuring mass production, low cost, extensive application for industrial and civil product. It’s widely used for measuring the pressure of gas and liquid, such as water, oil and mild corrosive liquid and gas.
The product is made of 1Cr18Ni9TI stainless steel and with selected pressure sensing elements which is from well-known international brand. The special circuits for V/I adaptor makes the zero and full range calibration more convenient.
Non-polar two-wire current and three-wire AC/DC voltage output are provided.Customized structures and output formats can be designed according to special application requirements, in addition to standards products.
Specification
| Measurement Range | 0~0.2MPa...60MPa | ||||
| Overload Pressure | 1.5 times of full scales | ||||
| Burst Pressure | 3 times of full scales | ||||
| Accuracy | ±0.5%F.S. | ||||
| Long Term Stability | Typical value: 0.25%F.S, Maximum: 0.4%F.S | ||||
| Medium Temperature | -40°C~120°C | ||||
| Compensated Temperature | -10°C~70°C | ||||
| Medium Compatibility | All corrosive medium compatible with 1Cr18Ni9Ti | ||||
| Output Mode | Two- wired | Three-wired | |||
| Output | 4~20mA | 0~5V | 1~5V | 0.5~4.5V | 0~10V |
| Power Supply | 10~30VDC | 8~30VDC | 5V(ratio) | 11~30VDC | |
| Load Resistance | (U-10)/0.02 | ?20k? | |||
| Insulation | 100M ?@50V | ||||
| Electrical Connection | DIN63650, IP65; GX16-7, IP45; Wire,IP68; | ||||
| Pressure Connection | M20×1.5, G1/4, G1/2, R1/2, NPT1/2 | ||||
| Response Time | 10ms | ||||
| Pressure Form | Gauge pressure, Seal Gauge Pressure | ||||
| Electromagnetic compatibility | Electromagnetic transmit: EN50081-1/-2;electromagnetic sensitivity: EN50082-2 | ||||
