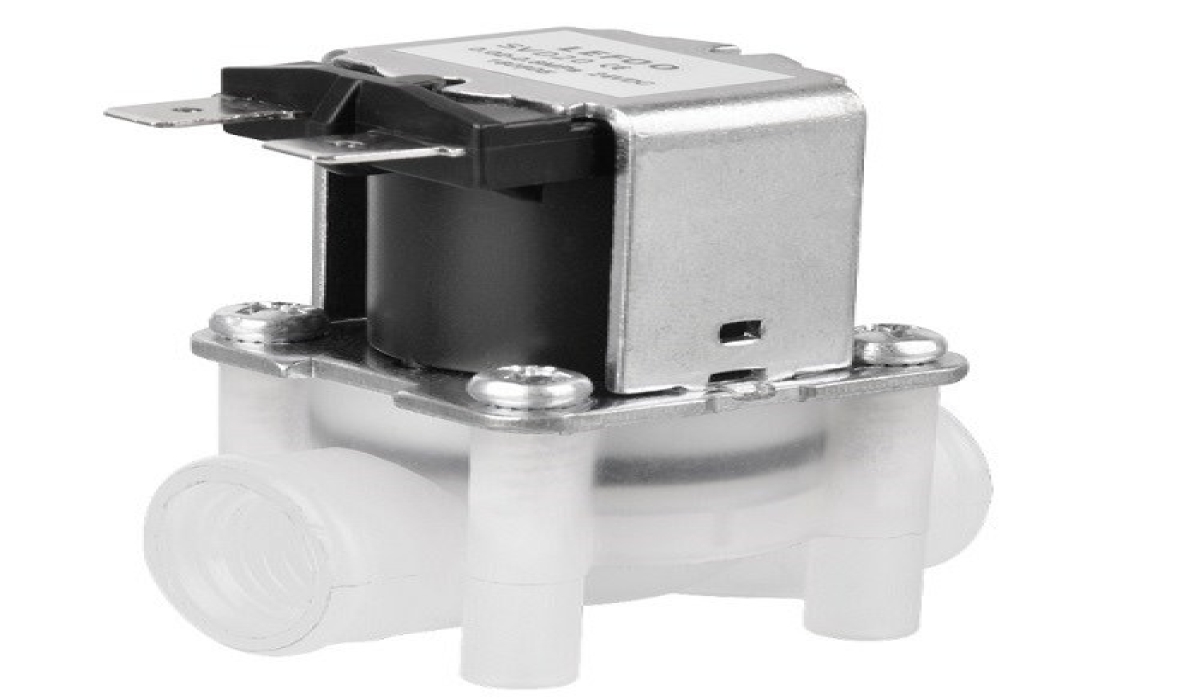

SVD30 series waste water solenoid valve has novel design and unique structure, which makes it have superior anti blocking and anti leakage performance.
It is widely used in all kinds of high-grade water dispensers, RO direct drinking machines, pipeline machines, water purifiers, coffee machines and other water appliances.
Technical parameter
| Rated voltage | DC12V | DC15V | DC24V | DC36V |
| working voltage | DC12V±15% | DC15V±15% | DC24V±15% | DC36V±15% |
| Water pressure range | 0.02 ~ 0.8MPa | |||
| Medium temperature | 0 ~ 100°C | |||
| active life | ≥100000 | |||
| Water pressure range | 0.3MPa | |||
| flow rate | 0.5MPa(15020030042055080010001500)±10% mL/min | |||
| Installation spacing | Bottom mounting 25×25mm Side mount 42±0.2mm | |||
| connector | Φ6.35mm?NPT1/4?1/4” | |||
