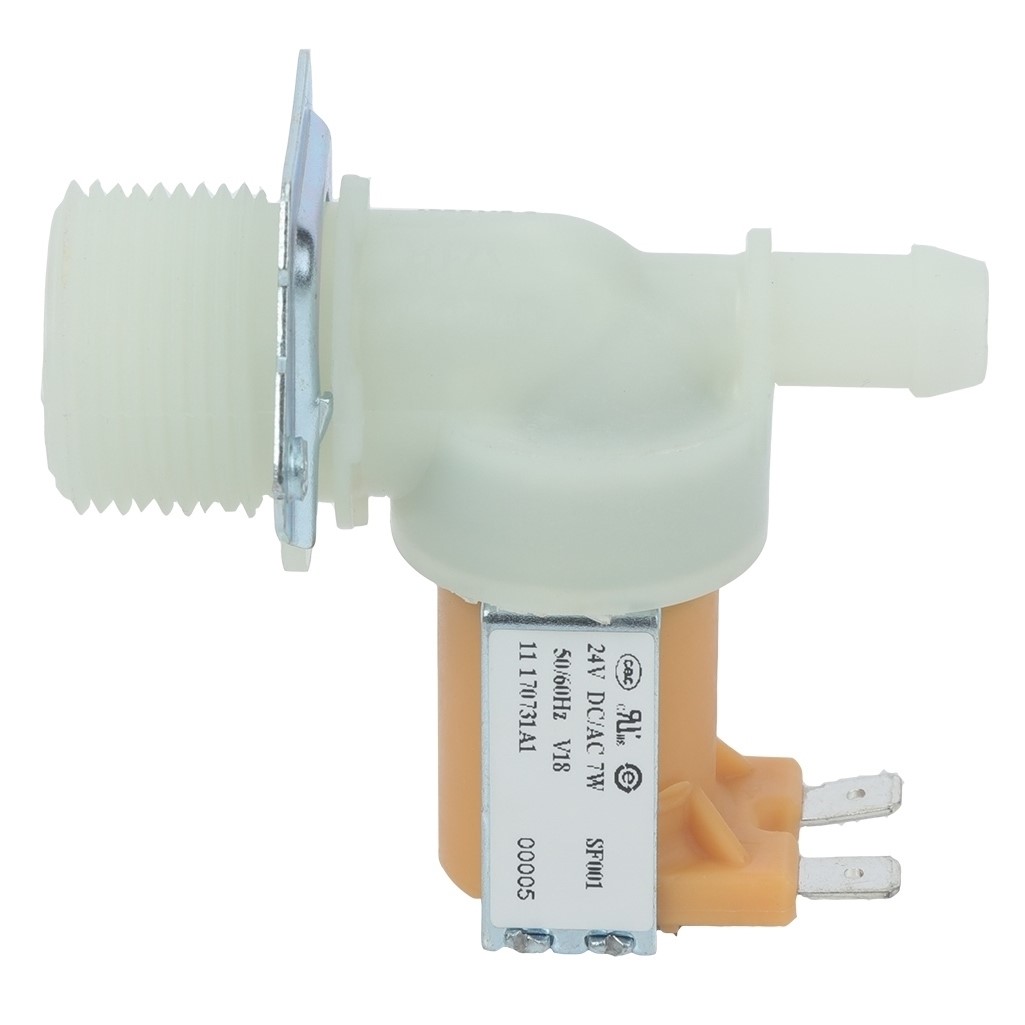

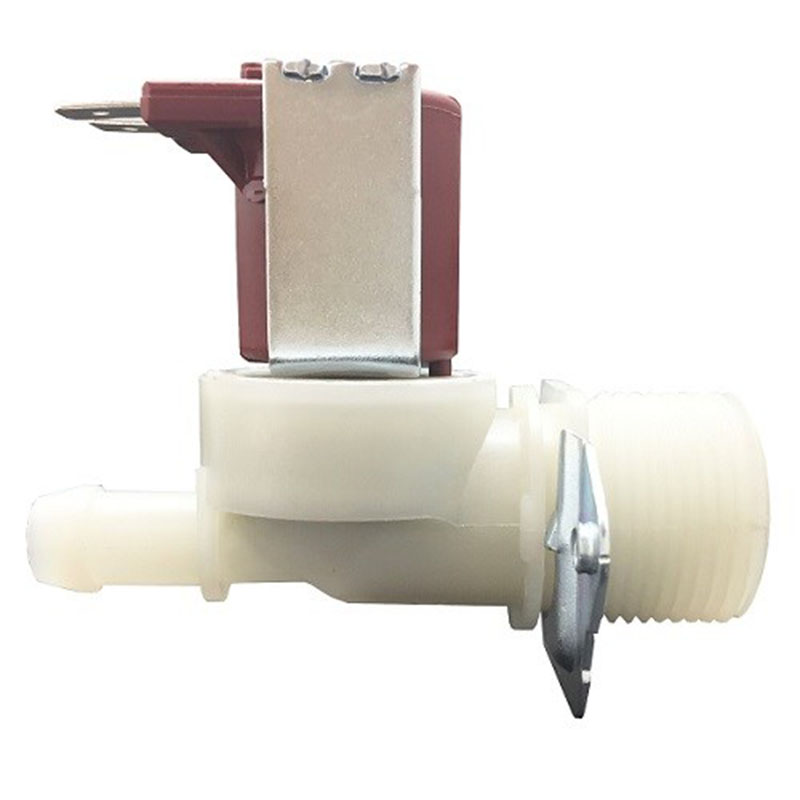

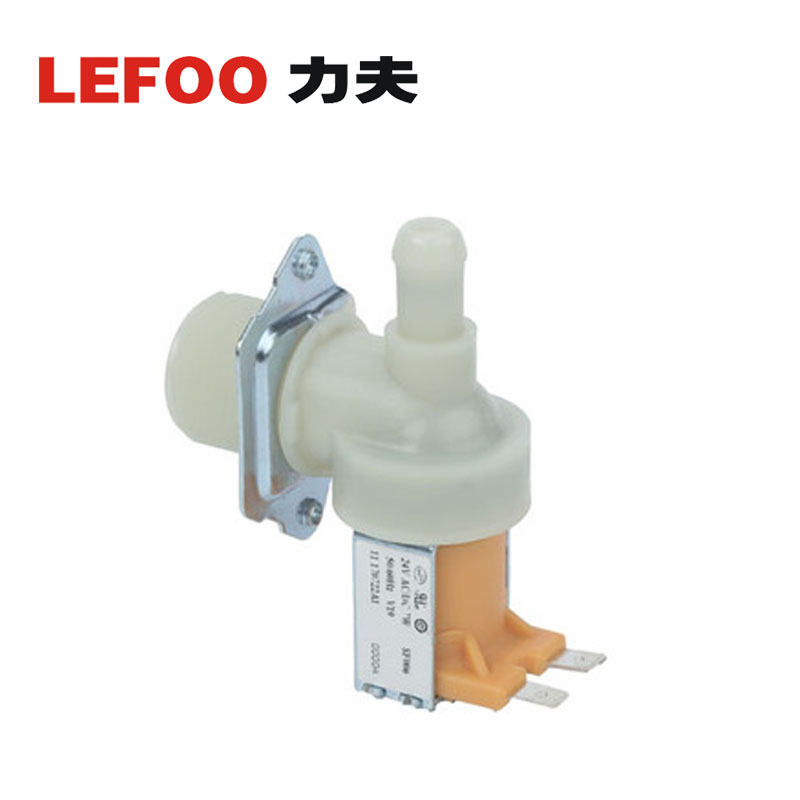

LFV18 series solenoid valves are mainly used in household appliance washing machines and dishwashers, water purifiers and coffee machines.
The coil is energized to generate magnetism, drive the valve core, change the internal pressure of the water inlet valve through the booster hole, and complete the action of water inlet switch.
Technical parameter
| Working voltage | DC12V | DC24V | AC110V | AC220V |
| Coil color | Black | Yello | Blue | Brown |
| Water pressure range | 0.02MPa~1.0MPa | |||
| Use water temperature | 0°C~90°C | |||
| Insulation grade | F | |||
| Ambient temperature | -10°C~60°C | |||
| Flow rate | 10L/min ± 15% | |||
