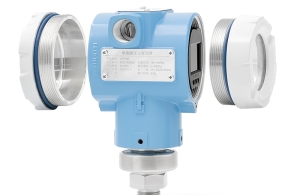

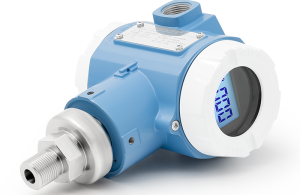

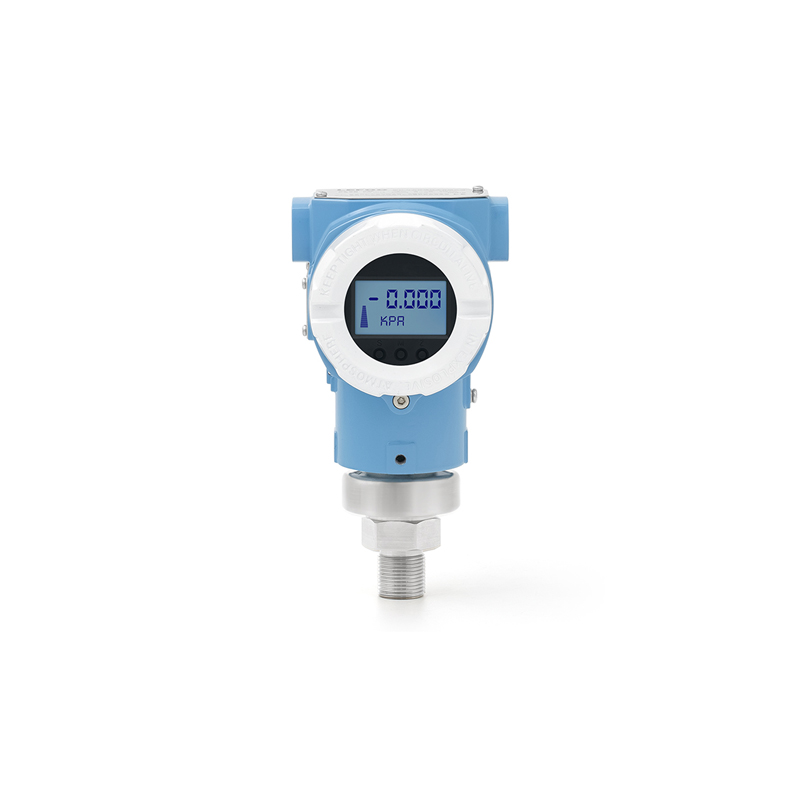

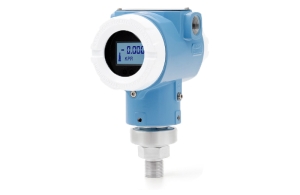

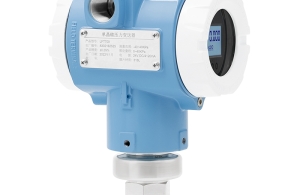

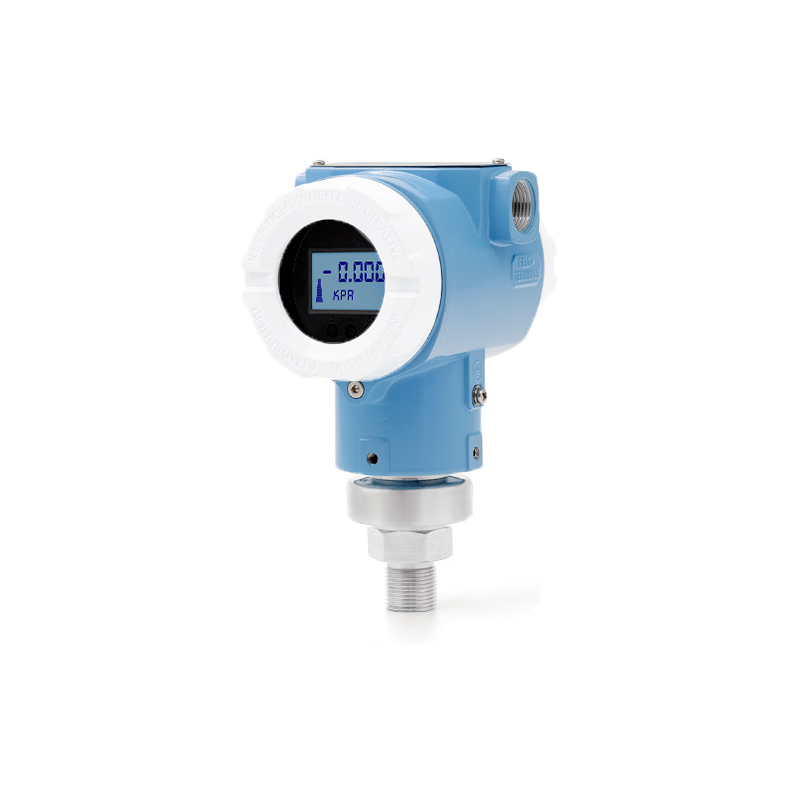

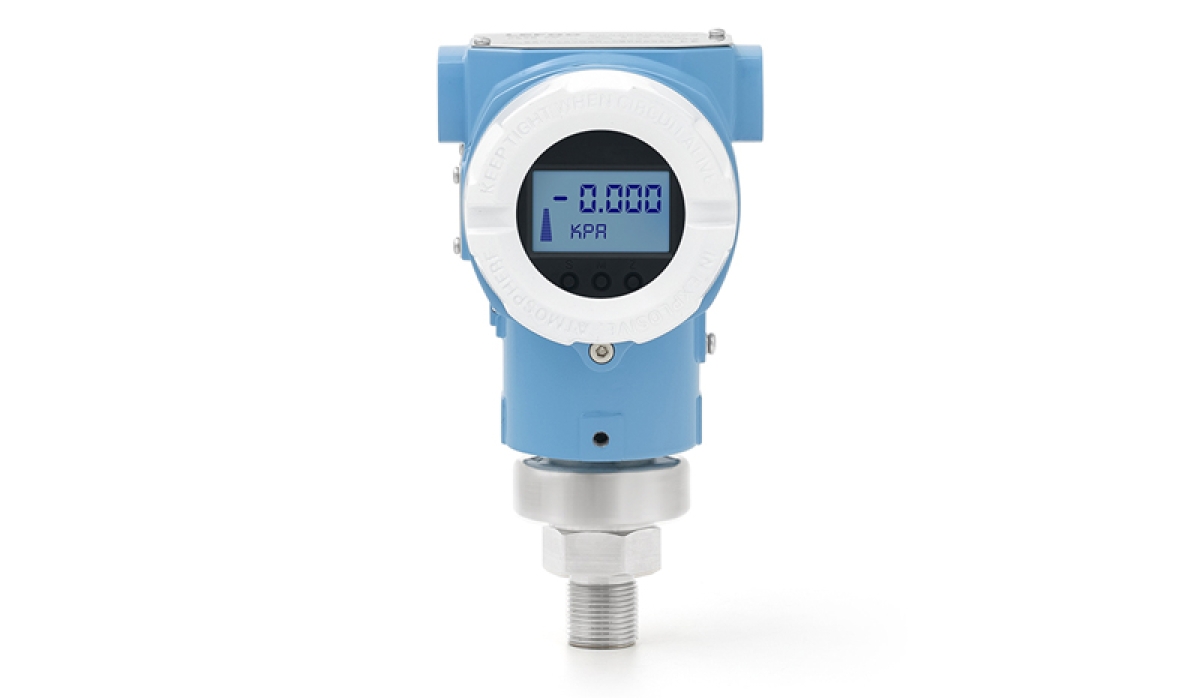

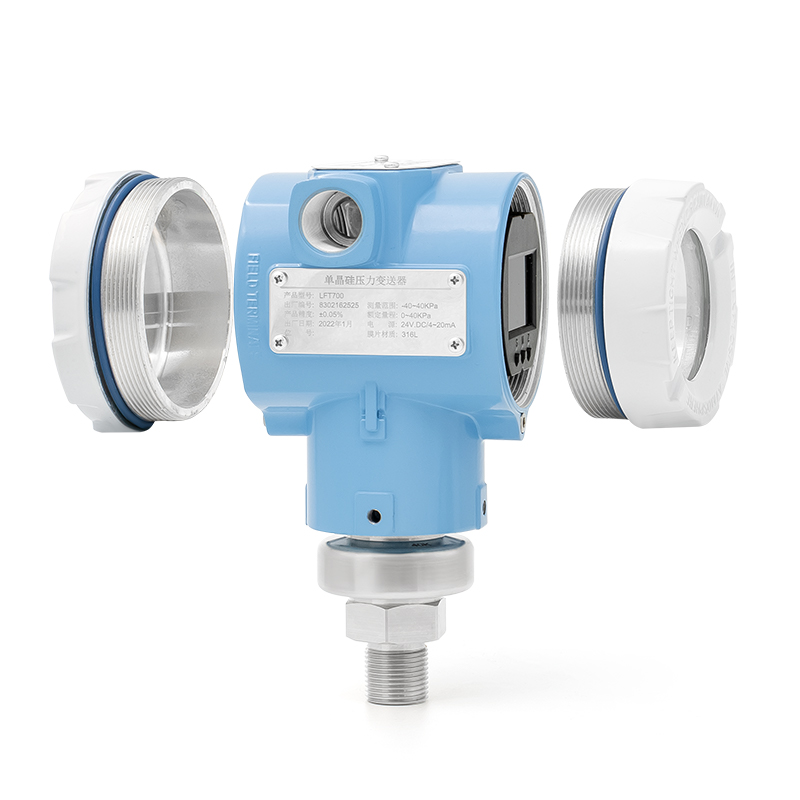

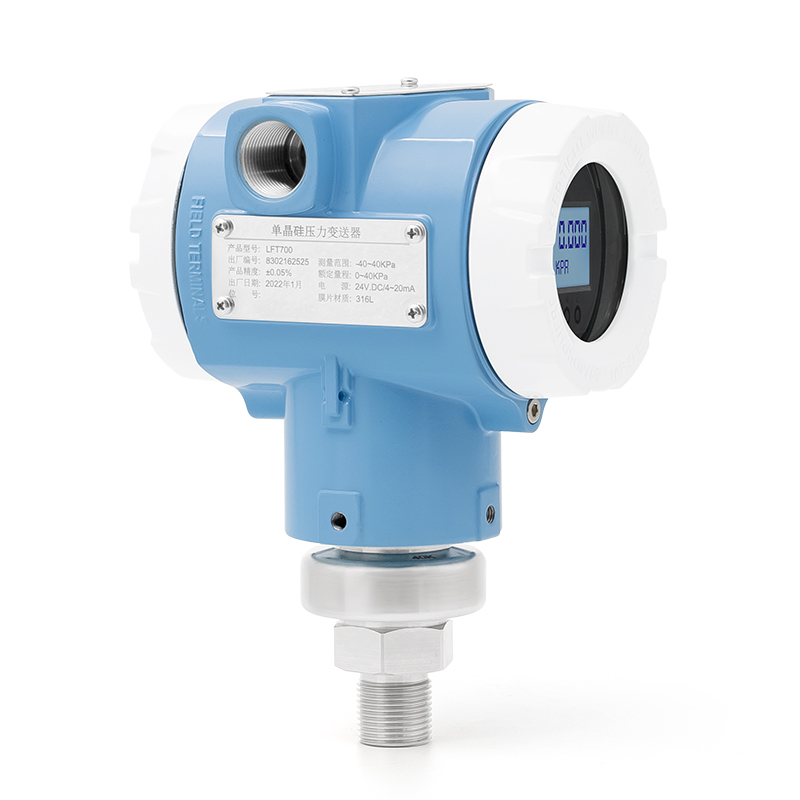

The LFT700 monocrystalline silicon pressure transmitter is used to measure the liquid level, density and pressure of liquid, gas or steam, and then convert it into 4~20mADC HART current signal output. It can also communicate with HART375 or HART475 hand-held communicator for parameter setting, process monitoring, etc.
Features
* High quality monocrystalline silicon core
* High accuracy: ±0.075%F.S, ±0.05%F.S
* Fast response
* Various output optional
* Customizable
Specification
| Product Name | Monocrystalline Silicon Pressure Transmitter |
| Measuring Range | can be customized, -1-0bar, 0-60bar, 60-600bar |
| Overload Capacity | 7.5MPa/70MPa |
| Measuring Medium | Universal for gas, liquid and steam |
| Output Signal | DC4~20mA HART(two-wire system) |
| Stable Performance | ±0.1%F.S/year |
| Temperature Effect | ±0.1%F.S/10°C |
| Accuracy Class | ±0.075% |
| Protection Class | IP67 |
| Damping Time | 0.1S |
| Power Supply | DC24V |
| Operating Temperature | -20°C~70°C |
| Ambient Temperature | -40°C~85°C |
