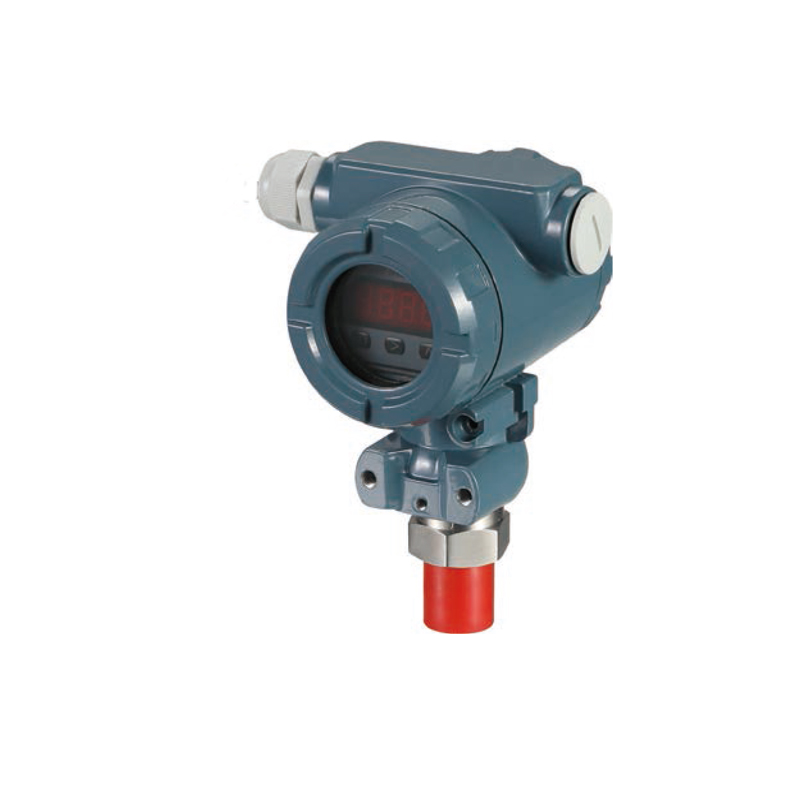

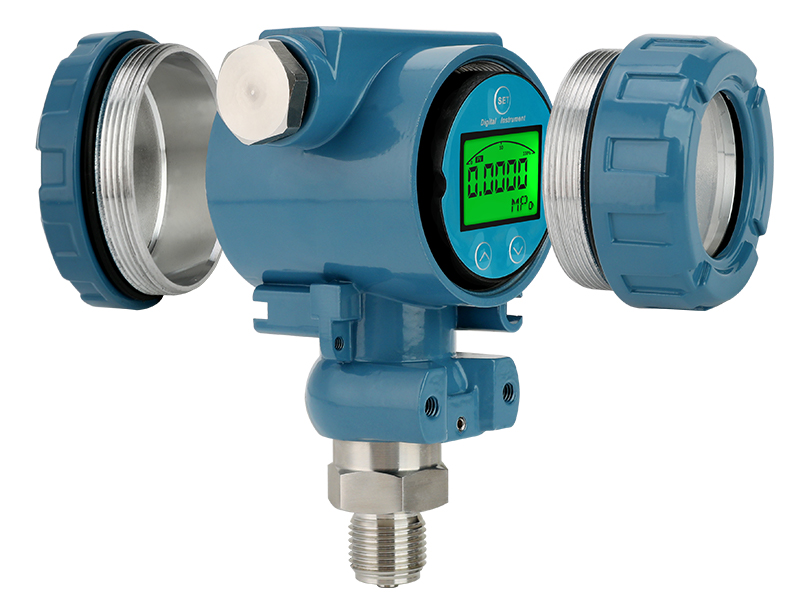

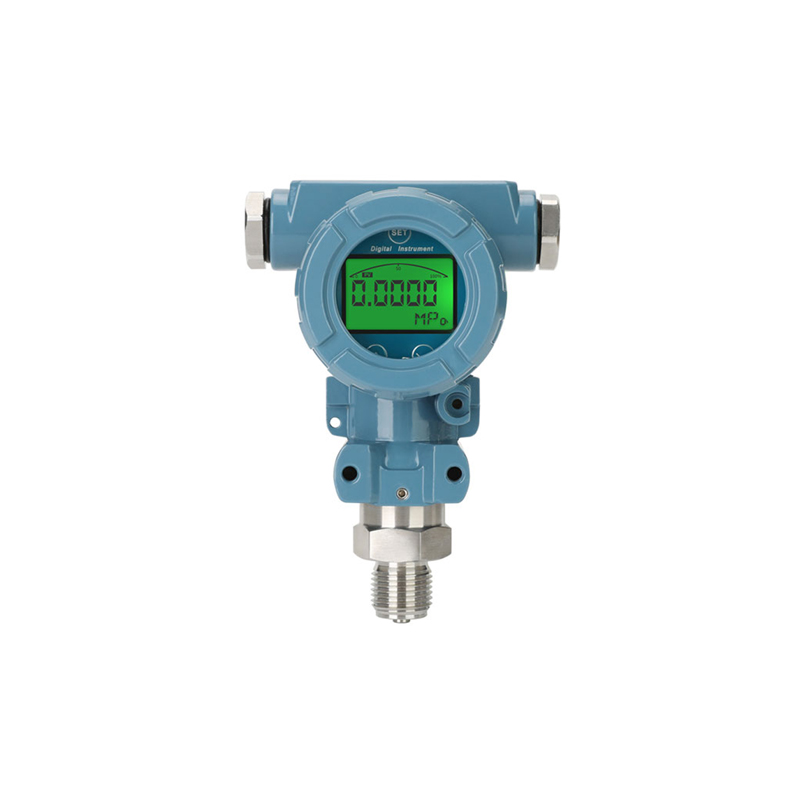

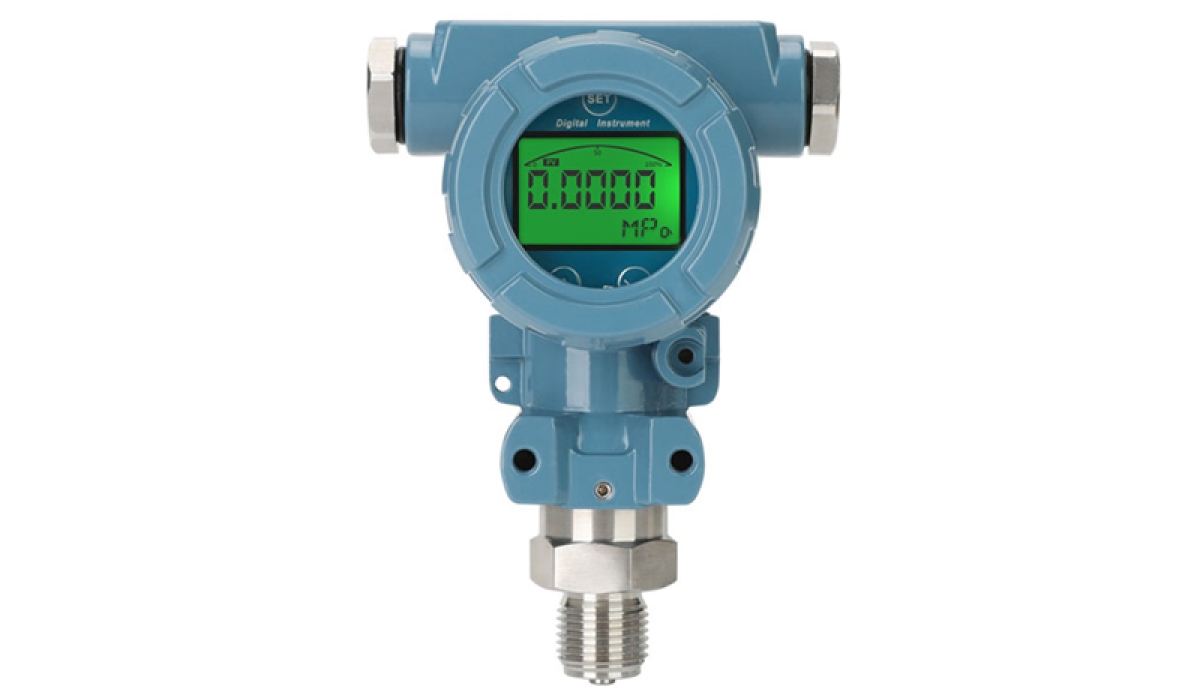

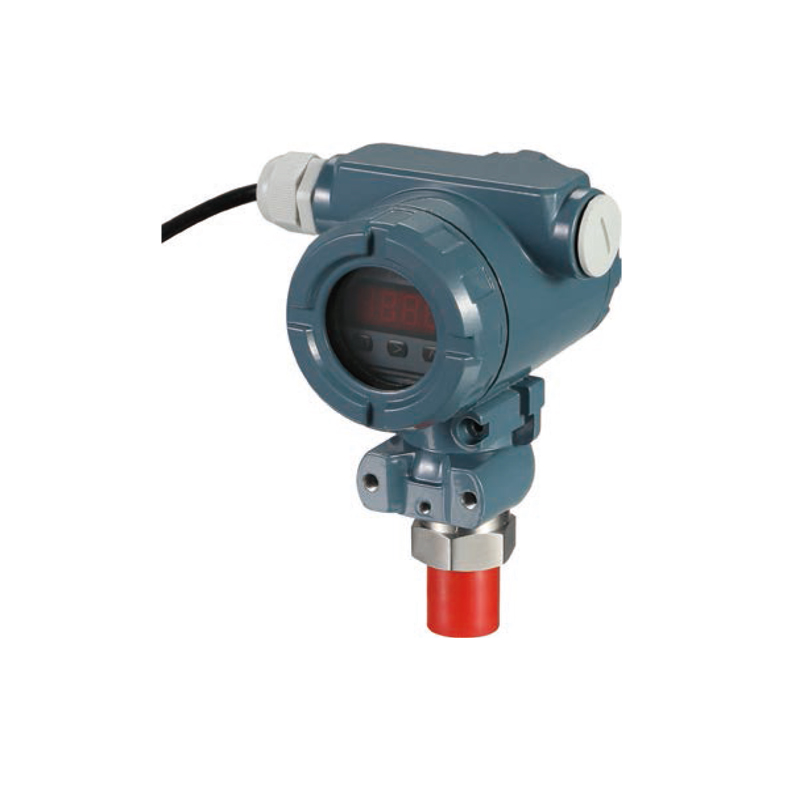

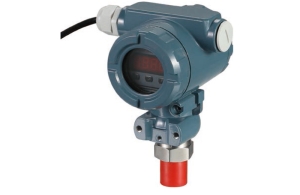

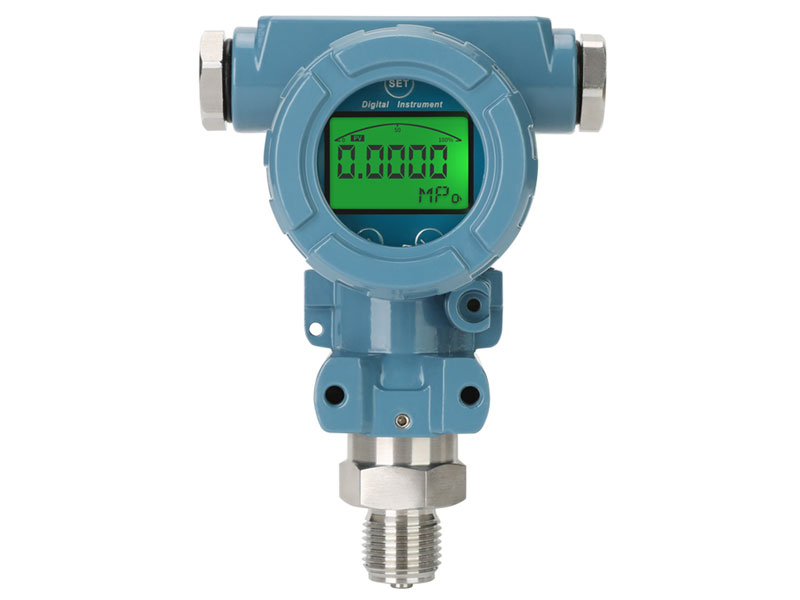

LFT6200 Explosion Proof Pressure Transmitter

The LFT6200 series pressure transmitter is an isolated explosion-proof product with highly cost-effective. It is widely used for gas and liquid pressure detection, such as water, oil, mildly corrosive liquid and gas. The product adopts a 316L stainless steel pressure head, the pressure core comes from the international famous brand, and the exclusive V/I converter circuit can be easy zero/span calibration. This product has the advantages of low drift, stable performance, reliable quality and optimize structure.

0.5%F.S accuracy
Anti pressure impact buffer joint
Multi pressure range and output signal
Isolation explosion protection
Configurable live display
Multiple pressure connection

Robot manipulator arm

Industrial pressure control such as Paint coating machine

Explosion hazard work site such as Petrochemical industry

General	Value
Measurement Range	-100KPa...0~10KPa...60MPa
Overload Pressure	2 times of full scales (2X)
Breaking pressure	3 times of full scales (3X)
Accuracy	±0.5%F.S
Stability	0.1%F.S/Year
Working Temperature	-20~80°C
Compensation Temperature	-10~70°C
Medium Compatibility	Gas or liquid compatible with 316L, 1Cr18Ni9Ti, VITON and NBR.
Compensation Temperature	-10~70°C
Output Mode	Two-wired	Three-wired	Four-wired
Output Signal	4~20mA	0-10Vdc	RS485
Power Supply	10~36Vdc	14~36Vdc	10-36VDC
Insulation	>100M Ω@500V
Electric Strength	500V@60 second
Electrical Connection	Waterproof outlet
Protection Grade	IP67
Pressure Connection	M20×1.5,G1/2

Electrical Connection

OUT

TEST

Terminal

Pin-out Output Type

Red

Black

Green

White

4~20Ma+HART

Vcc“+”

Signal

Function Description

Interface	Descriptions
SAd	Set address:0-15 Remark:when SAd isn’t zero, the output is always 4mA
LAd	Set long address
FSL	Set the lowest full scale
FSH	Set the highest full scale
Unt	Unit, bar, psi, kPa, MPa, mbar
END	Save Settings
