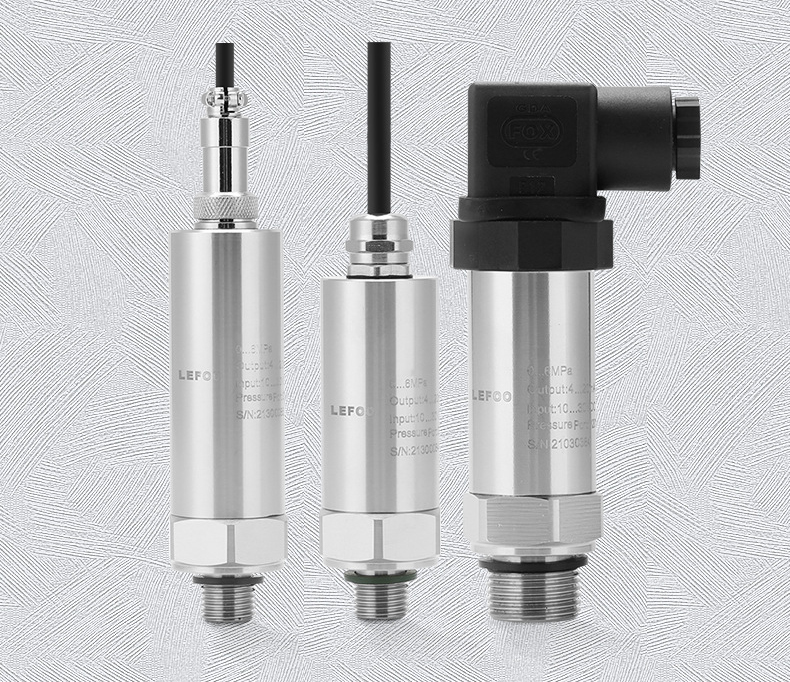

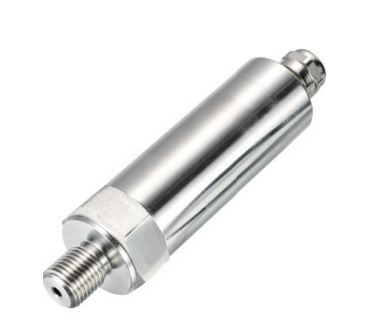

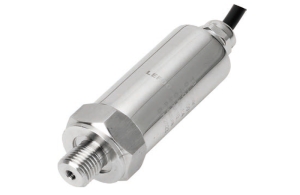

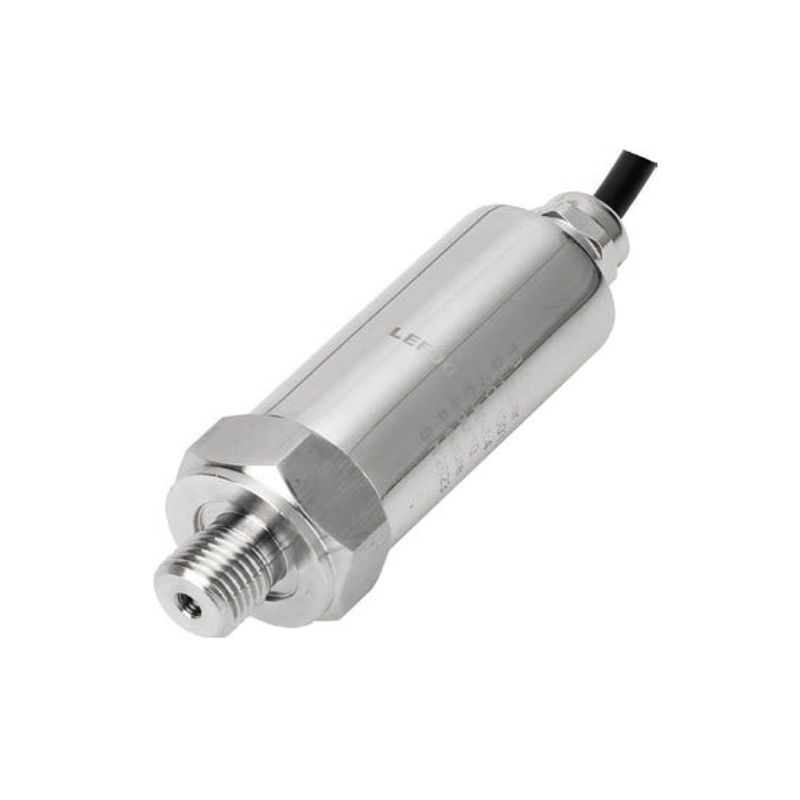

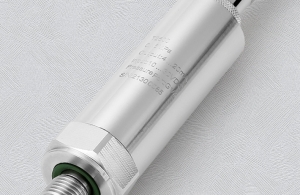

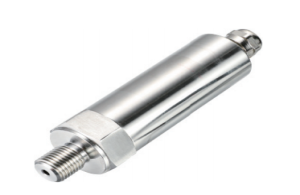

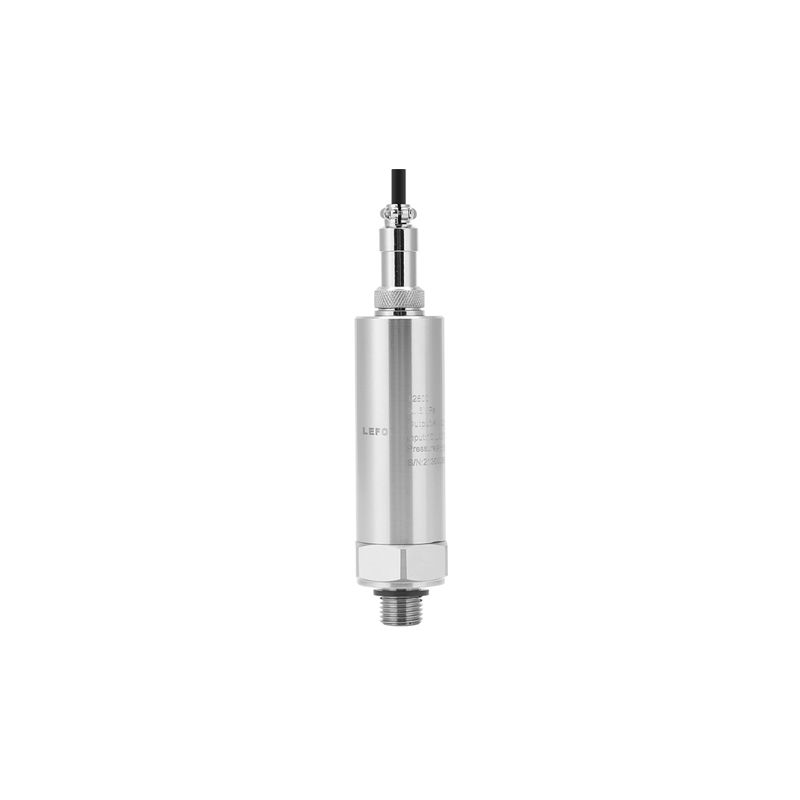

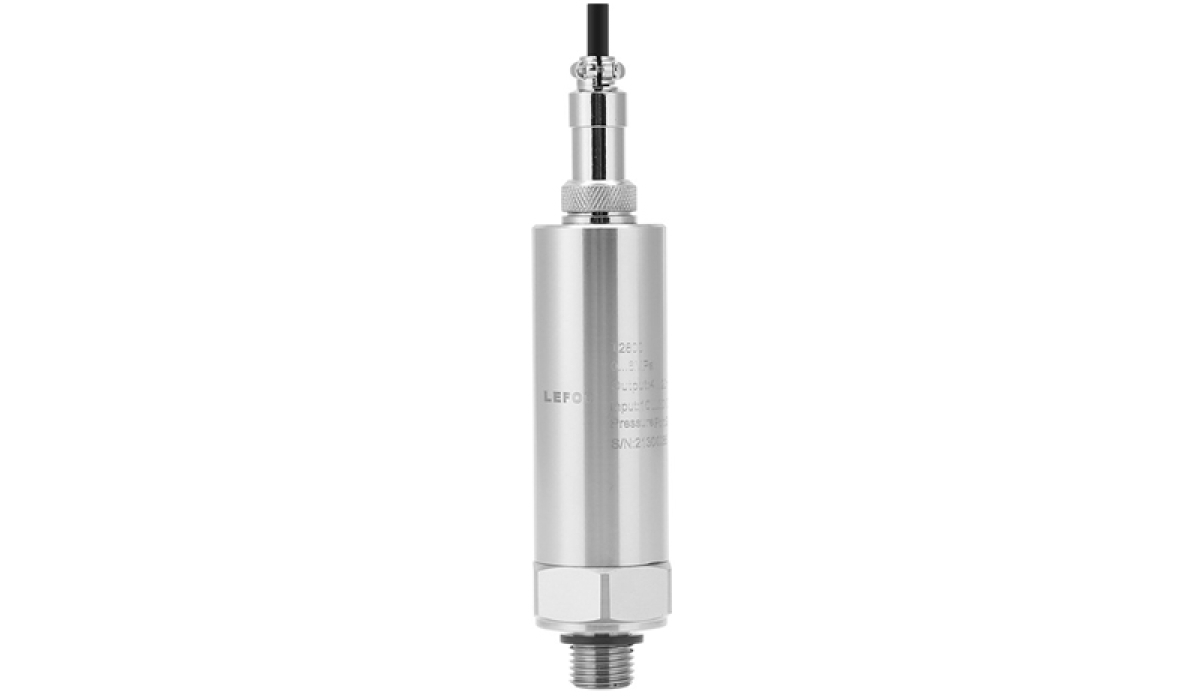

LFT3100 Temperature & Pressure Transducer adopts advanced piezoresistive pressure sensor and PT-100 temperature sensor, which is converted into standard signal (current or voltage) output by a special signal conditioning circuit. It has advanced digital temperature compensation, wide operating temperature range and full output signals, which can satisfy customers requirements. This product can be using in application to crude oil, foods processing, water treatment systems, and other industries.
-

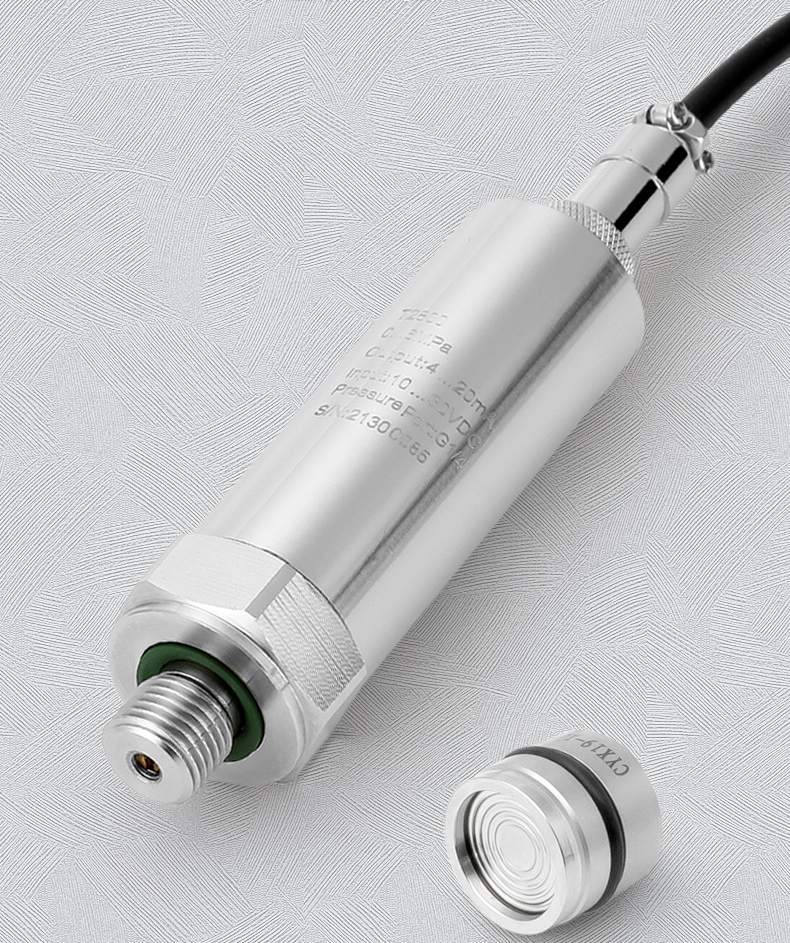

Adopt diffusion oil-filled silicon core
-
High accuracy and high overload capacity
-
Dual output in temperature and pressure, compact structure
-
Support Modbus-485 communication protocol (intelligent type)
-
Integrate temperature sensor and pressure sensor in one transducer
Water treatment
Municipal water supply project
Food industries
Light Duty Manufacturing industries
Chemical Industry
| Measurement Range | 0~10KPa - 0~70MPa, Gauge pressure and Absolute pressure | ||
| Temperature Range | -20~100°C PT-100 | ||
| Overload Pressure | 1.5 times full scales | ||
| Burst Pressure | 3.0 times full scales | ||
| Accuracy | Pressure:±0.5%F.S Temperature ±2%F.S | ||
| Stability | <0.5%F.S/Year | ||
| Working Temperature | -20~+85°C/-40~+100°C Customized | ||
| Compensated Temperature | -10~+70°C | ||
| Storage Temperature | -40~+100°C | ||
| Medium Compatibility | All corrosive medium compatible with stainless steel | ||
| Output Mode | 2-wired | 3-wired | 4-wired |
| Output Signal | 4~20mA | 0-4.5VDC | RS-485 |
| Power Supply | 10~30VDC | 5VDC | 12~30VDC |
| Electrical Connection | DIN43650A?Big Hirschmann?, M12 Waterproof outlet, M12 Aviation connector | ||
| Protection Grade | IP65 IP67 | ||
| Pressure Connection | G1/4, M12*1, M10*1, NPT1/4, G1/2, M20*1.5, etc. | ||
| Pressure Form | Gauge pressure / Absolute pressure | ||
| Certification items | Safety explosion-proof type E, RoHS, EU electrical safety standards CE | ||
| Code and Description | Notes | ||||||||||||||||||
| T3100 | Temperature Pressure Transducer | Model | |||||||||||||||||
| Pressure range | 0~70MPa | Measurement range | |||||||||||||||||
| Temperature range | 0~100°C | ||||||||||||||||||
| A4 | A4 = 4~20mA Two-wired | Output mode | |||||||||||||||||
| V05 | V05 = 0.5~4.5V Three-wired | ||||||||||||||||||
| RS | RS=RS-485 | ||||||||||||||||||
| K | K = kpa | P | P = psi | Unit | |||||||||||||||
| M | M = Mpa | B | B = bar | ||||||||||||||||
| 0.5 | 0.5 = 0.5%F.S | Accuracy class | |||||||||||||||||
| D1 | D1 = DIN43650A Big Hirschmann | Electrical connection | |||||||||||||||||
| M | M = M12 M12 Aviation connector | ||||||||||||||||||
| C | C = Cable Waterproof outlet | ||||||||||||||||||
| G | G = G1/4 | G2 | G2 = G1/2 | Pressure connection | |||||||||||||||
| N | N = NPT1/4 | M3 | M = M20*1.5 | ||||||||||||||||
| M1 | M1= M10*1 | ||||||||||||||||||
| M2 | M2= M12*1 | ||||||||||||||||||
|
| |||||||||||||||||||
