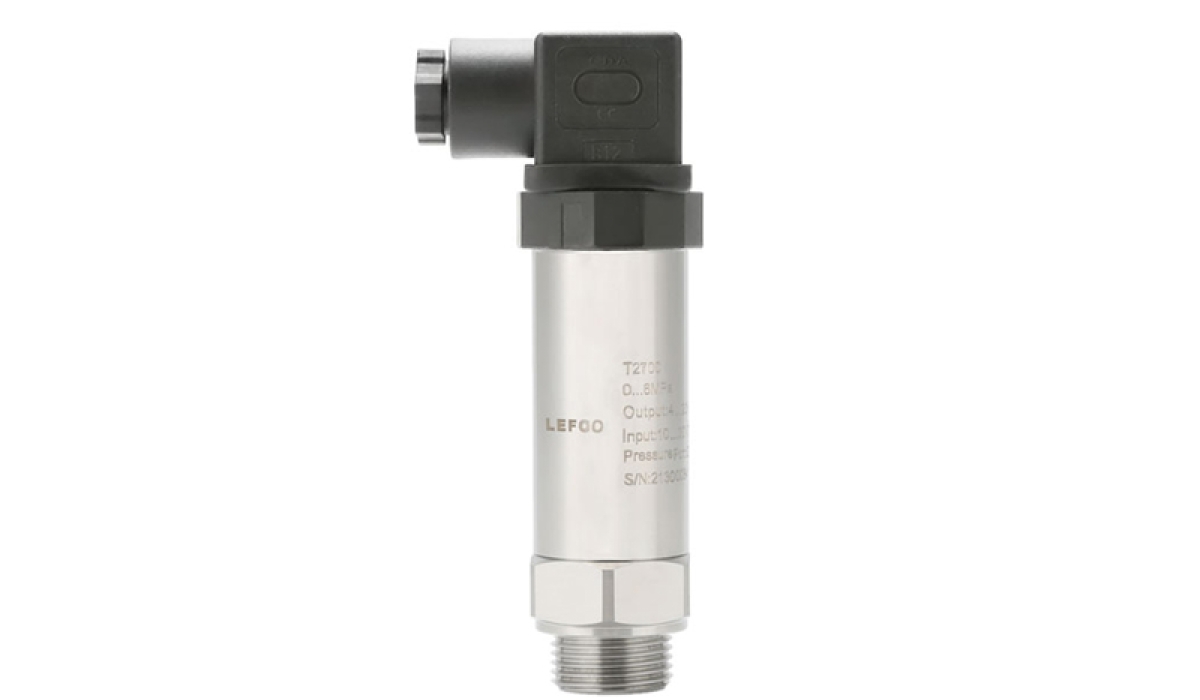

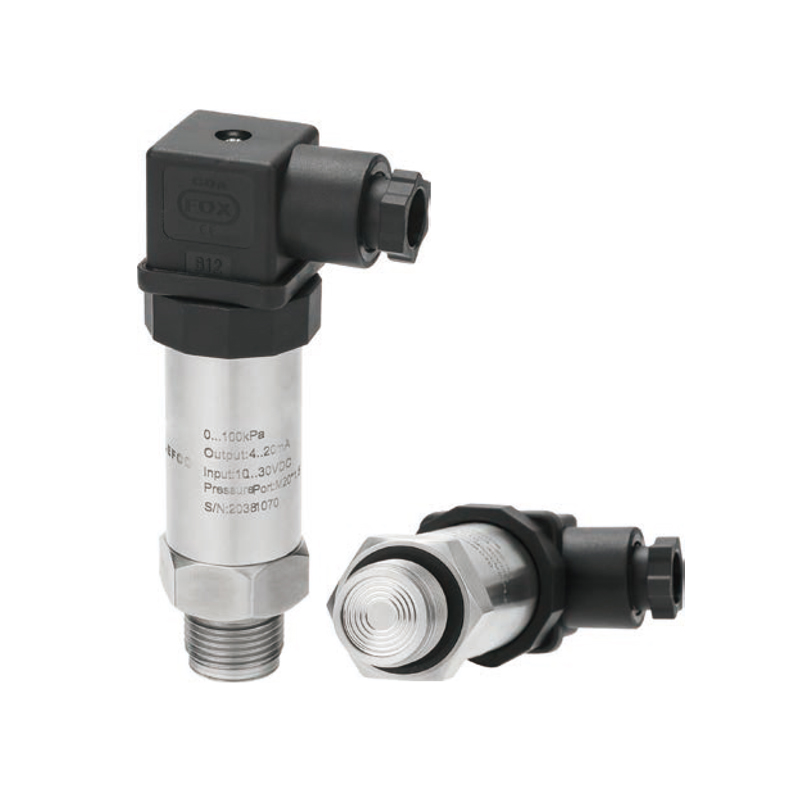

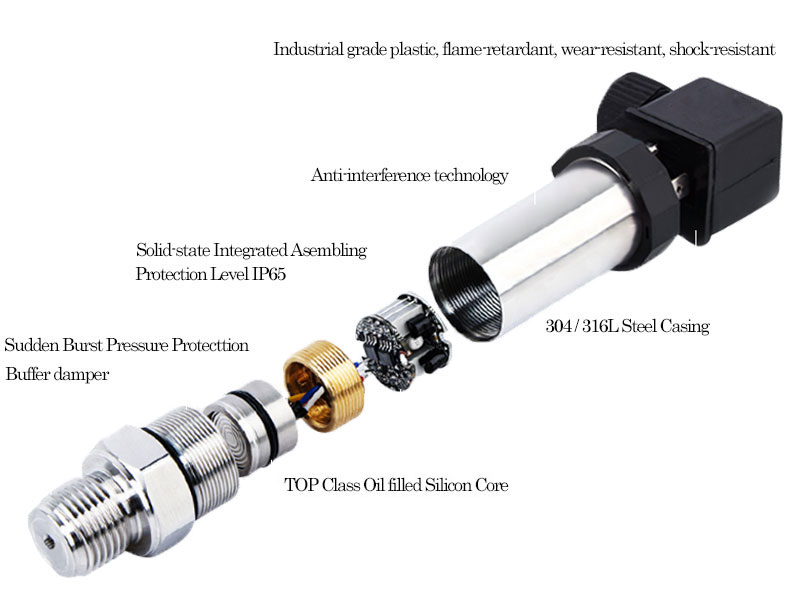

LFT2700 Flat Pressure Sensor

LEFOO T2700 flat film anti-blocking pressure transducer is a small structure, with variety of electrical output connection available. For gauge pressure or absolute pressure applications, the diffused silicon flat film threaded sensor can measure viscous media directly, such as chemical coatings, paint detection systems, environmental protection, and coal mines, papermaking, food processing, polyurethane equipment, crude oil and other viscous media.

Adopt 316L flat film sensor, anti-blocking, easy clean
Measure the pressure of viscous liquid directly
Adopt ASIC technology, digital compensation
Excellent corrosion and wear resistance
Threaded connection, easy installation

Static liquid and fluid pressure monitoring

glue dispenser

Food industries

Pharmaceutical Industries

Pulp and paper industries

Waste water processing

Petrochemical industries

Measurement Range	0~35Kpa - 0~35MPa(Gauge pressure/ Absolute pressure), 0~10Kpa
Overload Pressure	1.5 time of full scales (Max.100Mpa)
Burst pressure	3.0 time of full scales (Max.100Mpa)
Accuracy	±0.5%F.S
Stability	<0.5%F.S/Year
Working Temperature	-20~+85°C
Storage Temperature	-40~+100°C
Measured Medium	All corrosive media compatible with 1Cr18Ni9Ti and NBR
Output Mode	Two-wired	Three-wired			Four-wired
Output Signal	4~20mA	0.5~4.5V	0~5V	0~10V	RS485
Power Supply	10~30VDC	5VDC	12~30VDC		24VDC
Electrical Connection	DIN43650A (Big Hirschmann), M12 waterproof outlet, M12 aviation connector (3PIN, 4PIN)
Protection Grade	IP65 / IP54
Pressure Connection	G1/4, NPT1/4, R1/4, BPS1/4, G1/2, 7/16-20UNF, M20*1.5 etc.
Pressure Form	Gauge pressure / Absolute pressure
Certification	RoHS, EU electrical safety standard CE

Note 1: Measurement at 25°C which includes comprehensive accuracy of linearity, repeatability and hysteresis.

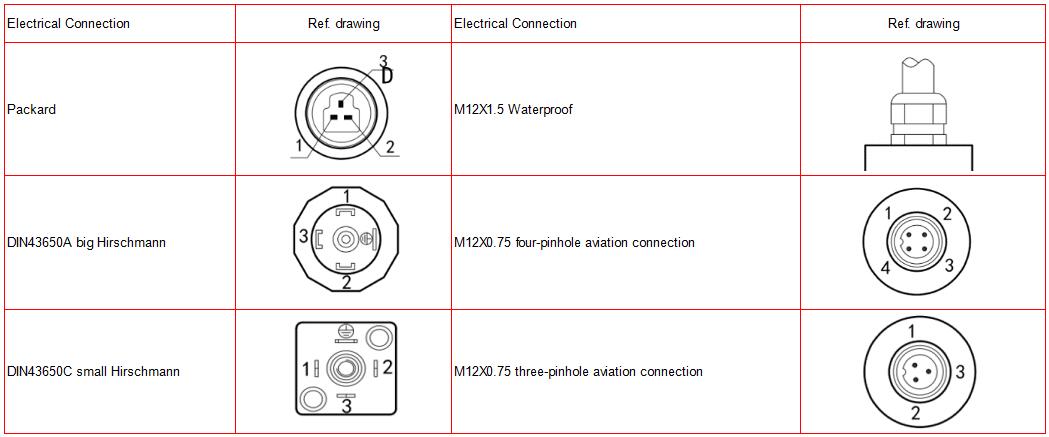

Connections

How to select

Code and Description											Notes
T2700	Pressure transducer										Model
	Range	0~35Kpa-0~35MPa?Gauge pressure/Absolute pressure), 0~10Kpa									Measurement range
		A4	A4 = 4~20mA Two-wired								Output mode
		V05	V05 = 0.5~4.5V Three-wired
		V0	V0 = 0~5V Three-wired
		V10	V10 = 0~10V Three-wired
		RS485	RS485 = RS485 output Four-wired
			K	K = kpa					P	P = psi	Unit
			M	M = Mpa					B	B = bar
				0.5	0.5 = 0.5?F.S						Accuracy class
					D1	D1 = DIN43650A Big Hirschmann					Electrical connection
					M	M = M12 M12 Waterproof outlet
					C	C = Cable Three core aviation connector
					C1	C1 = Cable Four-core aviation connector
						G	G = G1/2		M	M = M20*1.5	Pressure connection
							1.0	1.0 = 1m			Cable length
							2.0	2.0 = 2m
