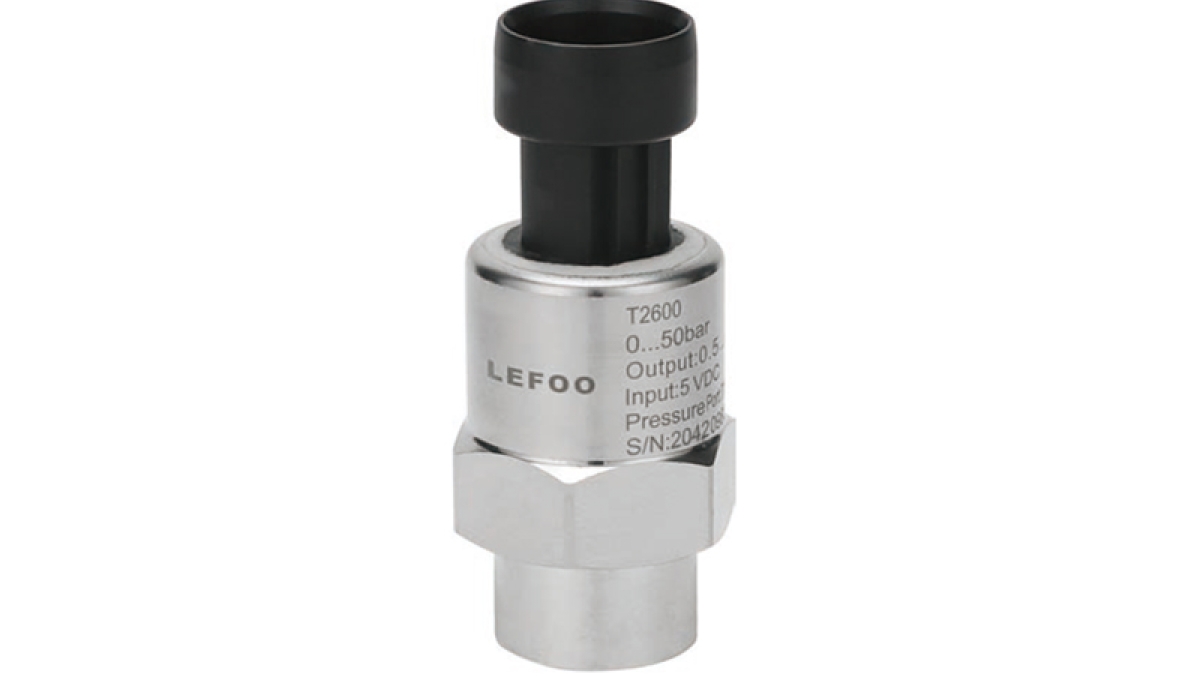

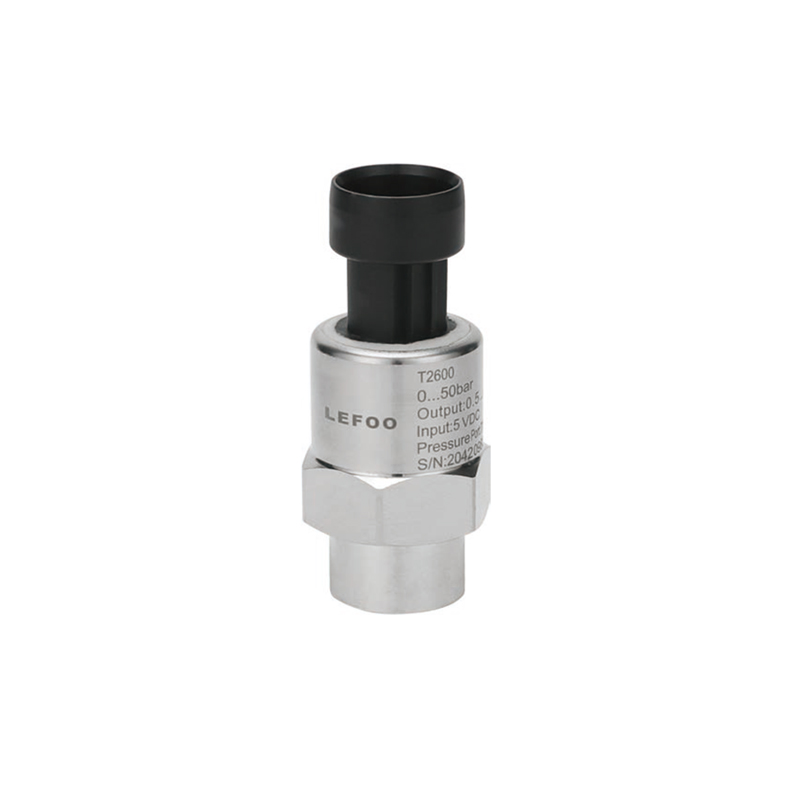

Refrigeration Pressure Sensor LFT2600 adopts a high-performance pressure sensing chip, combined with advanced circuit processing and temperature compensation technology, to convert pressure changes into linear voltage signals. This pressure transducer is small and easy to install. It chooses stainless steel shell to isolate and anti-corrosive, which is suitable for measuring media such as gas and liquid that are compatible with the material of the contact part.
-
0.8% F.S / 2.0%F.S accuracy
-
Special thimble structure design
-
Power supply with reverse polarity protection
-
Strong overload and environmental interference resistance, good stablity
-
Three-wired voltage 0.5-4.5 VDC output
| Measurement Medium | All gas or liquid compatible with ceramics, stainless steel (SUS304) and HNBR |
| Measurement range | 0~50Bar |
| Overload Pressure | 1.5 time of full scales |
| Accuracy | ±2.0%F.S% -30~120°C ±0.8%F.S -40~40°C |
| Power Supply | Nominal value 5VDC |
| Output | 0.5~4.5VDC |
| Storage Temperature | -40~120°C |
| Working Temperature | -40~120°C |
| Pressure connection | 7/16-20UNFInternal thread/7/16-20UNFExternal thread |
| Electrical connection | Packard |
| Protection Grade | IP67 |
Electrical connection
| Output Mode | Function | Wire Color | Pin-Out | Connection |
| 3-core Parkard Voltage Output Three-wired | Power supply + | Red | 1 |  |
| Output+ | Green | 3 | ||
| Power supply / Output | Black | 2 |
How to Select
| Code and description
| Notes | ||||||||||
| T2600 | Refrigeration Pressure Transducer | Model | |||||||||
| Range | 0-50Bar | Measurement Range | |||||||||
| V05 | V05 = 0.5~4.5V Three-wired | Output signal | |||||||||
| M | M= Mpa | B | B = Bar | Unit | |||||||
| 0.8 | 0.8 = 0.8%F.S | Accuracy class | |||||||||
| 2.0 | 2.0 = 2.0%F.S | ||||||||||
| P | P = Packard Parker plug | Electrical connection | |||||||||
| G | G = G1/4 | G2 | G2 = G1/2 | Pressure connection | |||||||
| 1.0 | 1.0 = 1m | Cable length | |||||||||
| T2600 | 0-50 | V05 | B | 2.0 | P | G | 1.0 | Model selection example | |||
