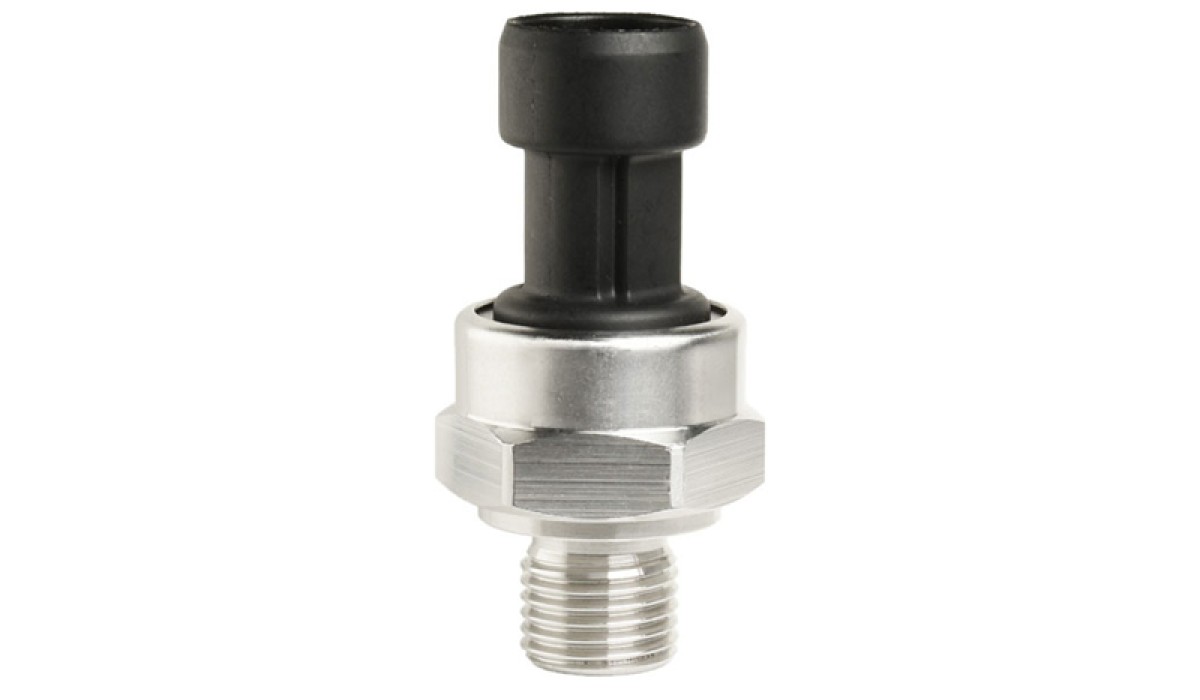

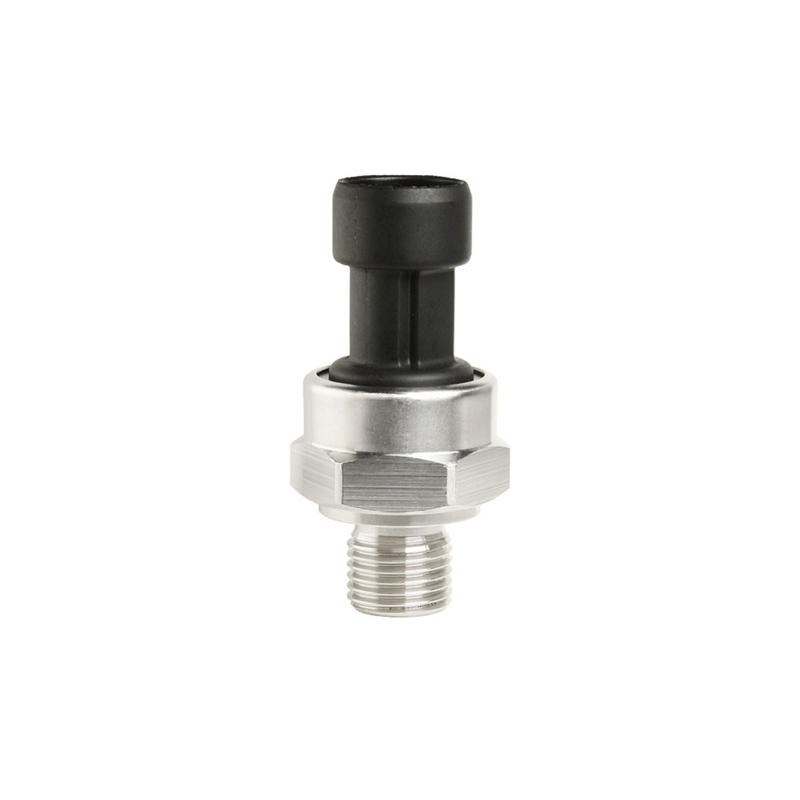

Refrigeration pressure transmitter LFT2070 is based on ceramic capacitor sensors that are corrosion resistant and with excellent temperature adaptability. The high-performance MCU collects the undergo pressure signal and converts to a standard output signal. These refrigeration pressure transmitters are capable to a wide temperature range from -40°C+120°C. Compact size, easy installation, low cost, and high performance features. It is widely used in the measurement of fluid medium pressure in fire fighting systems, HVACR systems, air compressors, pneumatic devices, industrial automation, automobile cooling systems, and A/C conditioning cooling systems.
Features
Capable for refrigerants such as R22
Working Temperature -40~120 °C
Small but compact size
Specification
| General | Value | |
| Pressure Range | 0~3…50 Bar | |
| Overload Pressure | 1.5 times the rated pressure | |
| Breakdown Pressure | 2 times the rated pressure | |
| Accuracy | ±2%F.S | |
| Work Temperature | -40°C+120°C | |
| Testing Medium | Gas or liquid compatible with ceramics, stainless steel, hydrogenated nitrile or fluorine rubber | |
| Electrical properties | 3-wire | |
| Output Signal | 0.5~4.5V Proportional(Proportional output) | 0.5~4.5V Absolute(Absolute output) |
| Power Supply | 4.75~5.25VDC | 5~15VDC |
| Electrical Connection | Packard plug | |
| Case Protection Level | IP65 | |
| Pressure Connection | G1/4 | |
| Pressure Type | Gauge Pressure G | |
| Certification | RoHS, EU Electrical Safety Standards(CE) | |
| Spec Code and Definition | Remark | ||||||||||||||||
| LFT2070 | Model | ||||||||||||||||
| Range | 0~3…50 Bar | Measurement Range | |||||||||||||||
| V5A | V5A = 0.5~4.5V 3-Wire (Absolute voltage output) | Output Type | |||||||||||||||
| V5P | V5P = 0.5~4.5V 3-Wire (Proportional voltage output) | ||||||||||||||||
| K | K = KPa | P | P = Psi | Measurement | |||||||||||||
| M | M = MPa | B | B = Bar | Unit | |||||||||||||
| 2 | 2= 2%F.S | Accuracy | |||||||||||||||
| P | P = Packard Packard Plug | Electrical Connection | |||||||||||||||
| G1 | G1= G1/4 | Pressure Connection | |||||||||||||||
| G2 = G1/2 | |||||||||||||||||
| 1 | 1.0 = 1m | Outlet Cable Length | |||||||||||||||
| 2 | 2.0 = 2m | ||||||||||||||||
| T | Default: 25 | T0= -40~120°C | Compensation Temperature | ||||||||||||||
| LFT2070 | 0-50 | V5A | B | 2 | P | G1 | 1 | T0 | Selection Example | ||||||||
