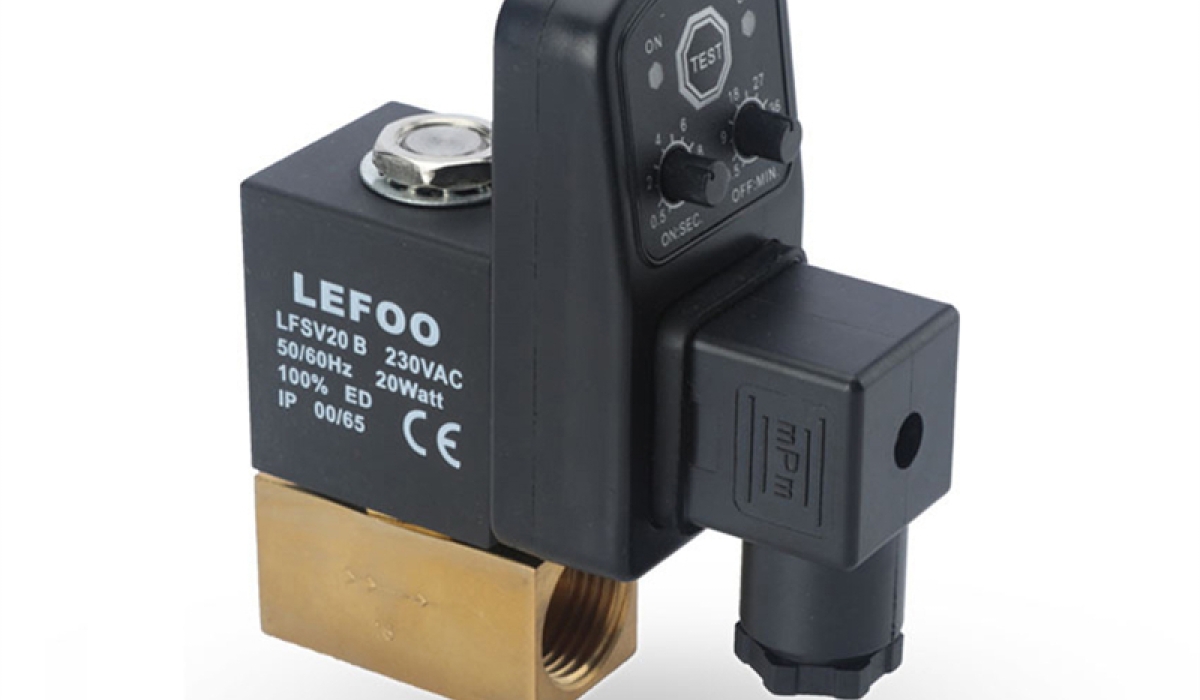

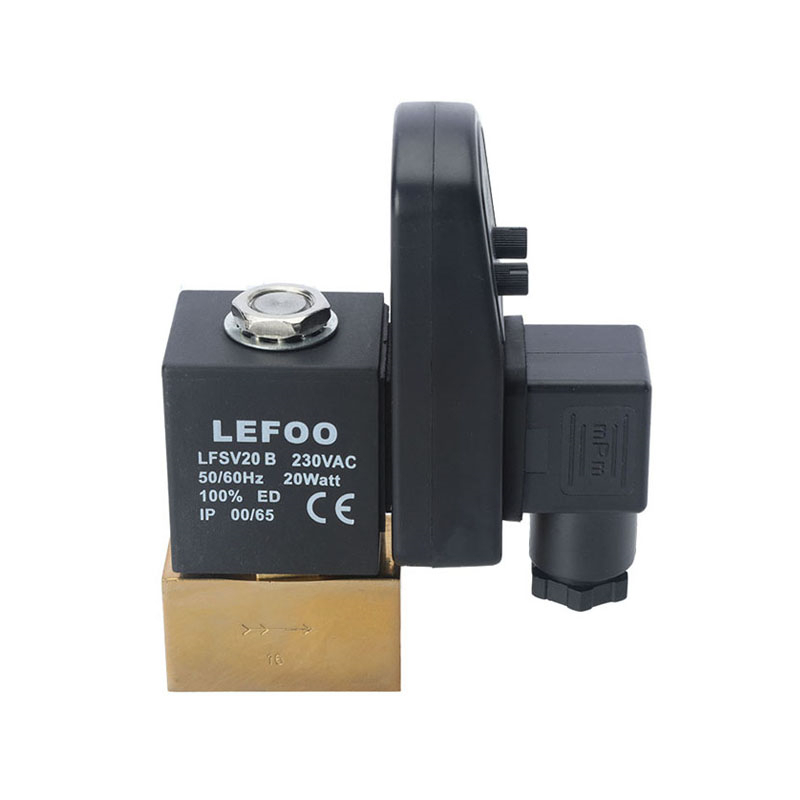

LFSV20-B solenoid valve is a two-way normally closed two position two-way solenoid valve. The valve uses the electromagnetic force generated by the energization of the coil to drive the movement of the valve core, so as to block or circulate the medium in the pipeline and achieve the purpose of regular and automatic discharge of compressed air condensate.
It is mainly used in filter, separator, dryer, air storage tank, drip foot and other compressed air system components. The discharge time and interval can be adjusted according to different needs.
Technical parameter
| model | LFSV20-B |
| medium | water |
| Medium temperature | -20°C ~ 80°C |
| working pressure | 0 ~ 16bar |
| aperture | Φ3.0mm |
| Interval time | 0.5 ~ 45min |
| Discharge time | 0.5 ~ 10sec |
| Connector Type | G1/2”(3/8” or 1/4”) |
