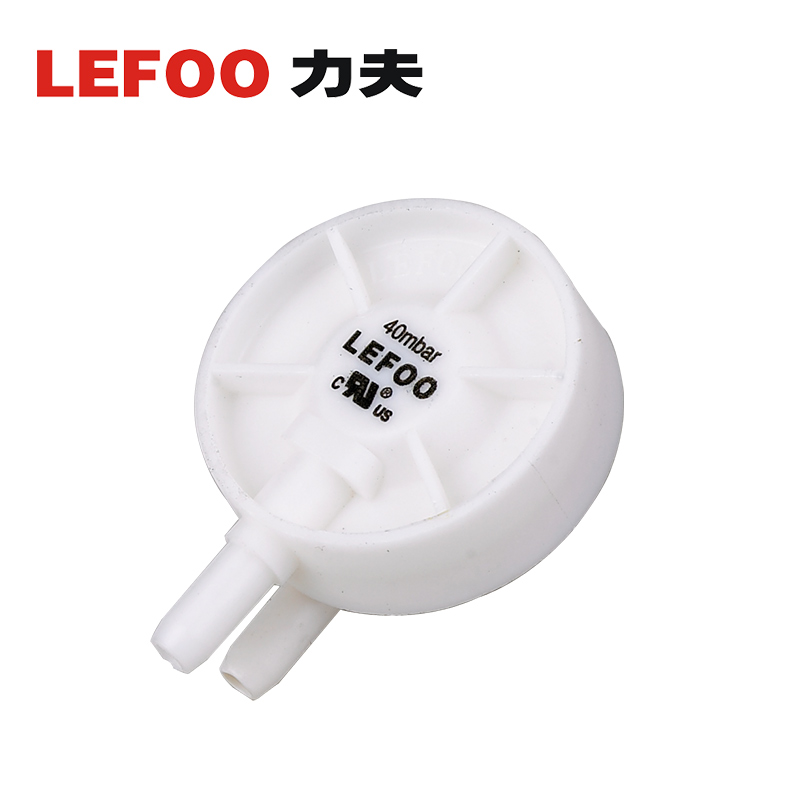

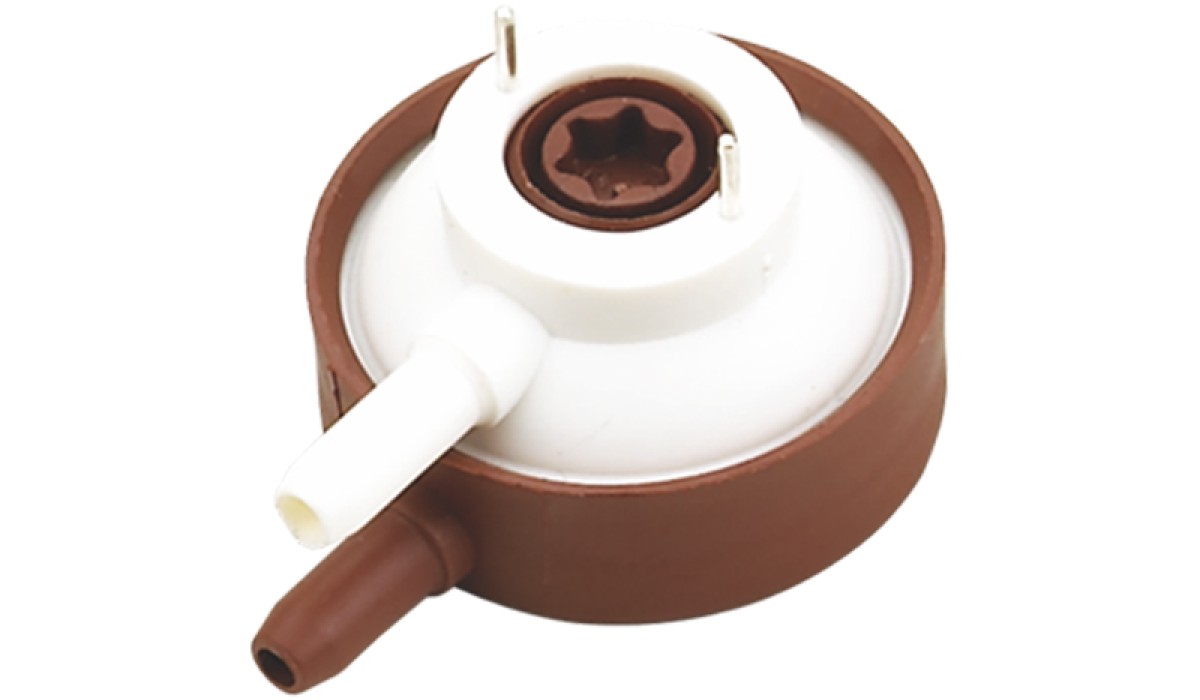

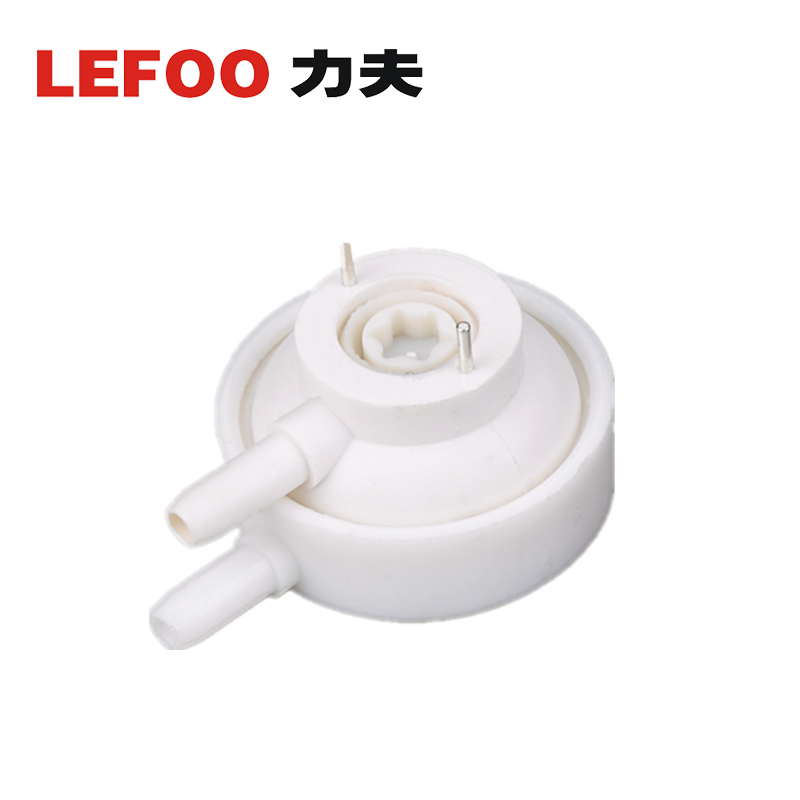

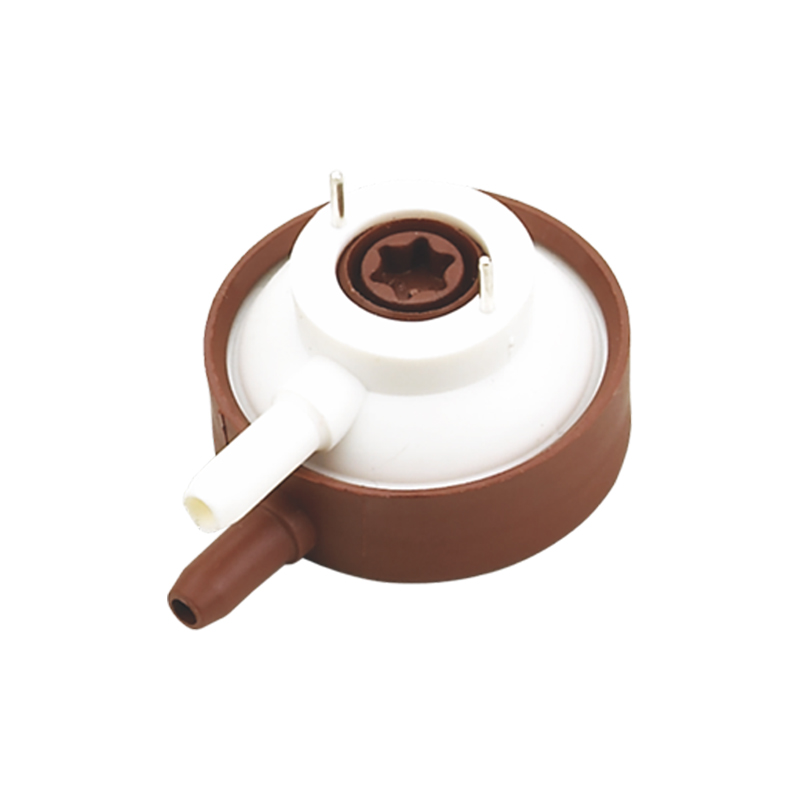

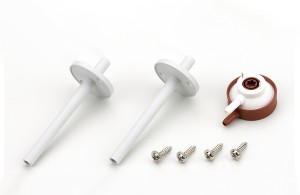

LFS-02 Pressure Switch

LFS-02 Pressure Switch is designed as an economical interface between pressure systems and Printed Circuit Boards. This switch can be used as a gauge or differential pressure switch with almost no hysteresis. It is applied to detection of both positive and negative pressure. Features of this switch include a body design that allows the pressure ports to be rotated, various terminal styles including wire leads.

Specification

Model		LFS-02
Electrical Function		1 pole NO
Switch Rating		250 mA 250 V~
Temperature		-10~+90°C

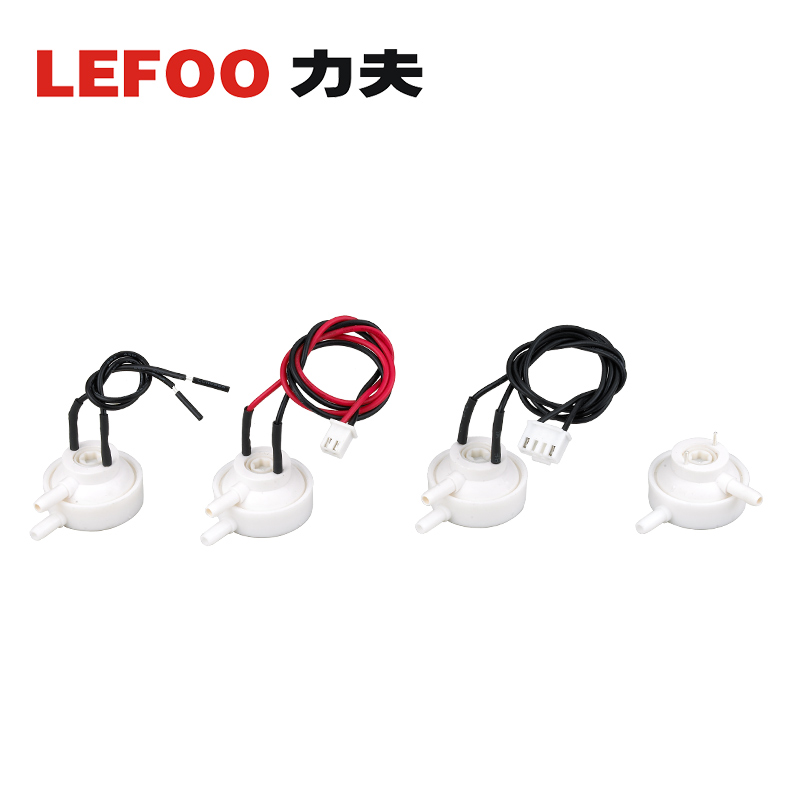

Electrical Connections		Solder pins 1.0 mm; wire leads with different insulation, length and socket
Pressure Range		Pressure: 5 ~1000 mbar (1mbar=100Pa) Vacuum: 10 ~ 800 mbar
Sample Line Connections		Inlet 4.0 mm for tube connection
Medium		Non hazardous gas only
Fixing Methods		Soldering on PCB
Agency Approval		UL, CUL, CE
Material	Cover	PA 66
	Base	PBT
	Adjust Screw	PA 66
	Contact Carrying Parts	Brass Silver Plated (Gold plating on request)
	Membrane	Silicone (Nitrile, EPDM, Perbunan on request)
