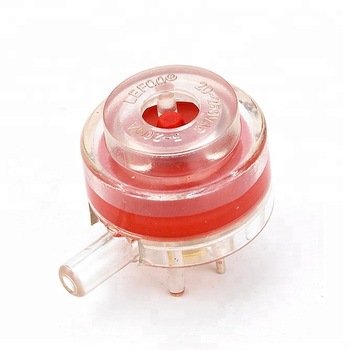

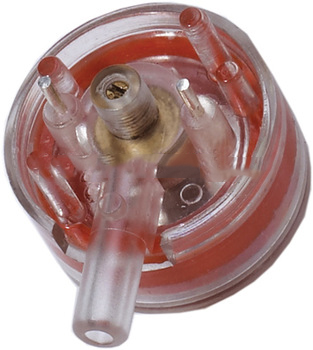

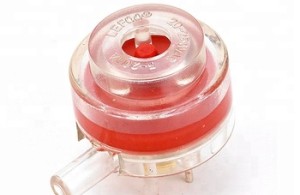

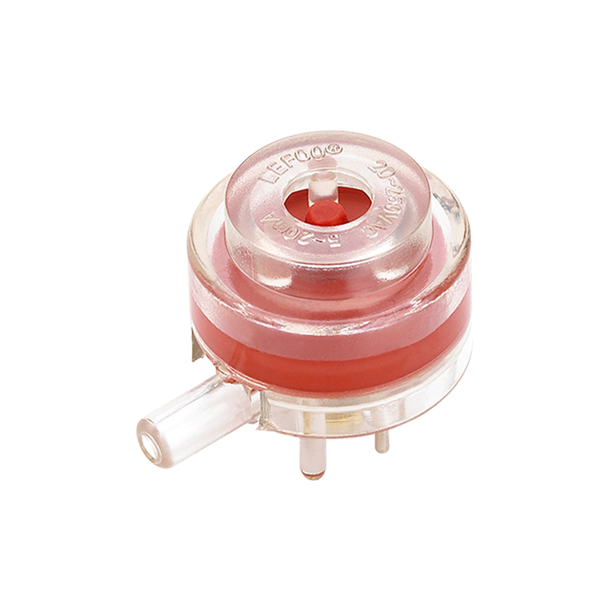

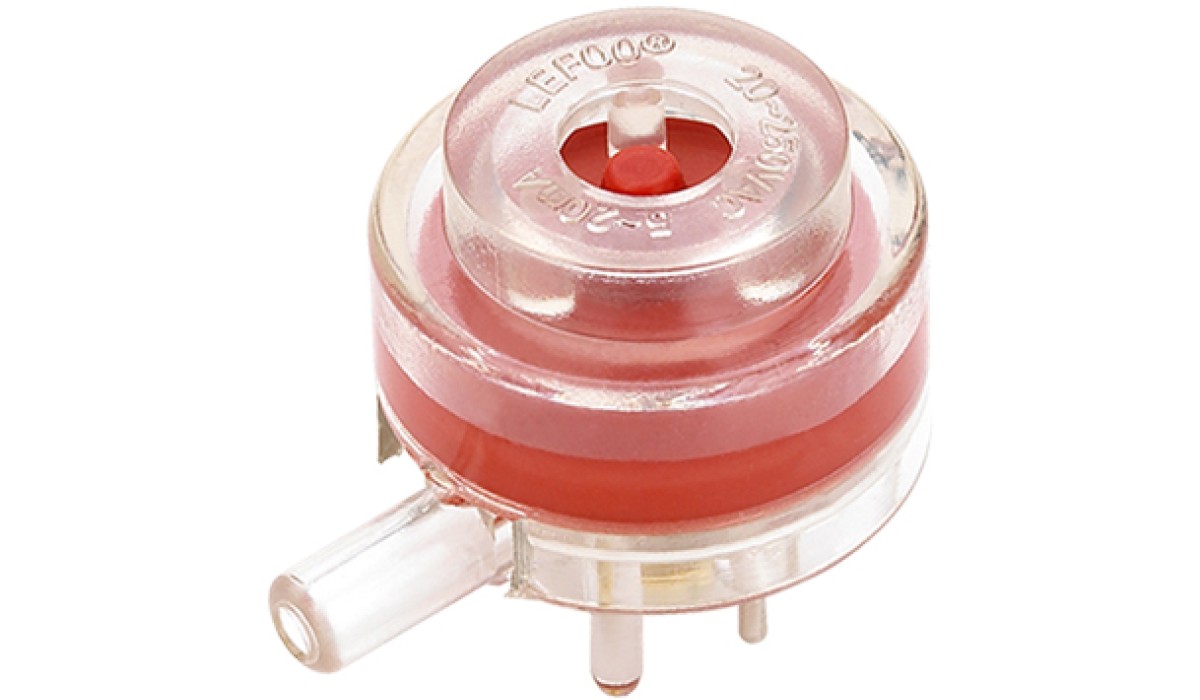

LFS-01 vacuum pressure switch is applied to the detection of both negative and positive pressure, such as the family vacuum cleaner.
It is provided with solder pin connections and is specially designed for mounting on "Printed Circuit Boards", but can also be provided with different wire leads, terminals, and socket. It is designed as an economical interface between pressure systems and Printed Circuit Boards with almost no hysteresis.
Specification
| Model | LFS-01 | |
| Electrical Function | 1 pole NO | |
| Switch Rating | 20 mA, 250 V [ cULus ] | |
| Temperature | -10~95°C | |
| Electrical Connections | Solder pins 1.0 mm, 10mm between away from each other; or wire leads with different insulation, diameter and length, socket | |
| Pressure Range | Vacuum: 10mbar to 800mbar Pressure: 10mbar to 500mbar (1mbar=100Pa) | |
| Sample Line Connections | Inlet 4.0 mm for tube connection | |
| Medium | Non-hazardous gas only | |
| Fixing Methods | Soldering on PCB | |
| Agency Approval | UL, CUL | |
| Material | Housing | Polycarbonate |
| Contact Carrying Parts | Brass Silver Plated (Gold plating on request) | |
| Membrane | Silicone Rubber | |
Ps: 1 box(>100 pieces) minimum order.Quantity discounts.
