LFM73 Multi-Function Differential Pressure Transmitter

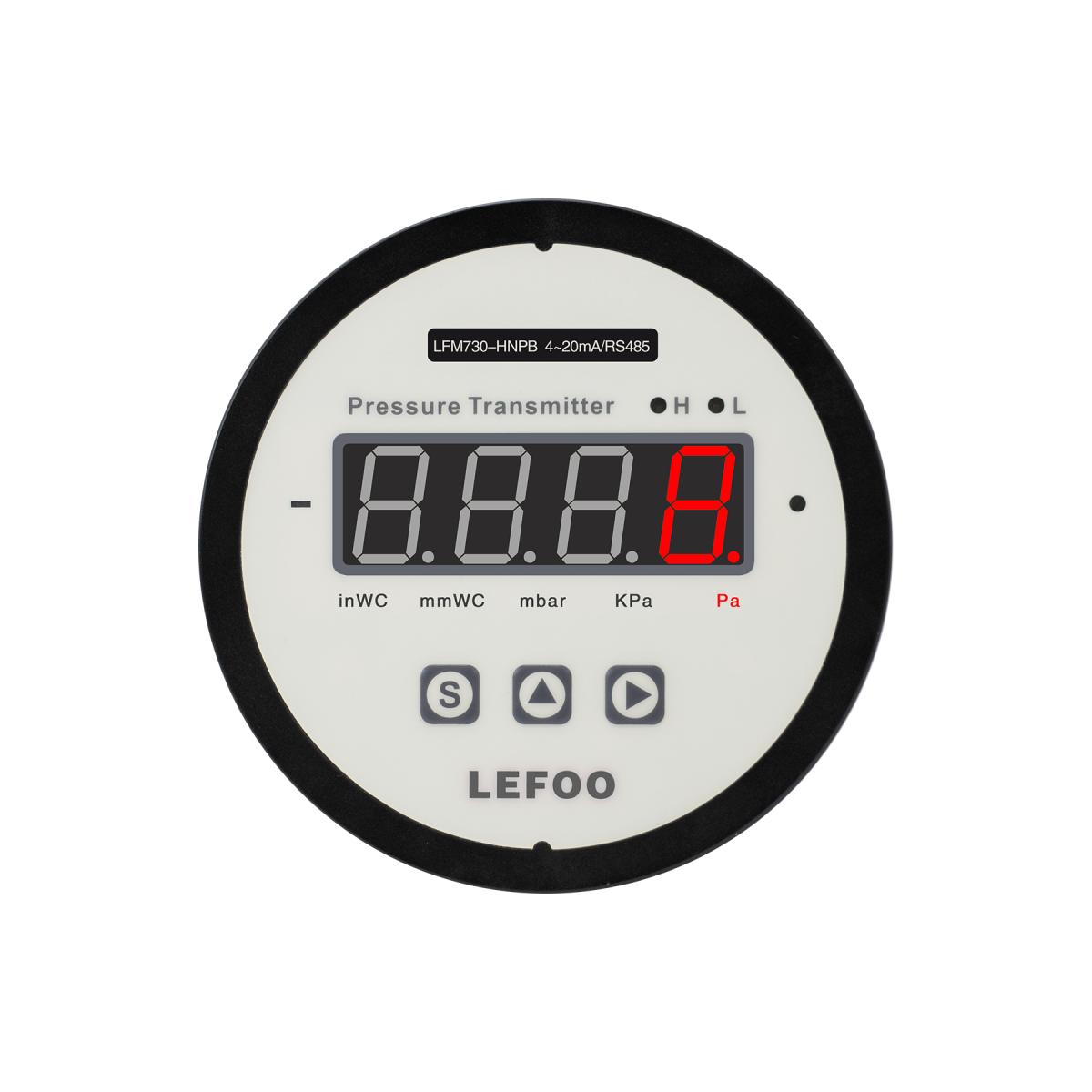

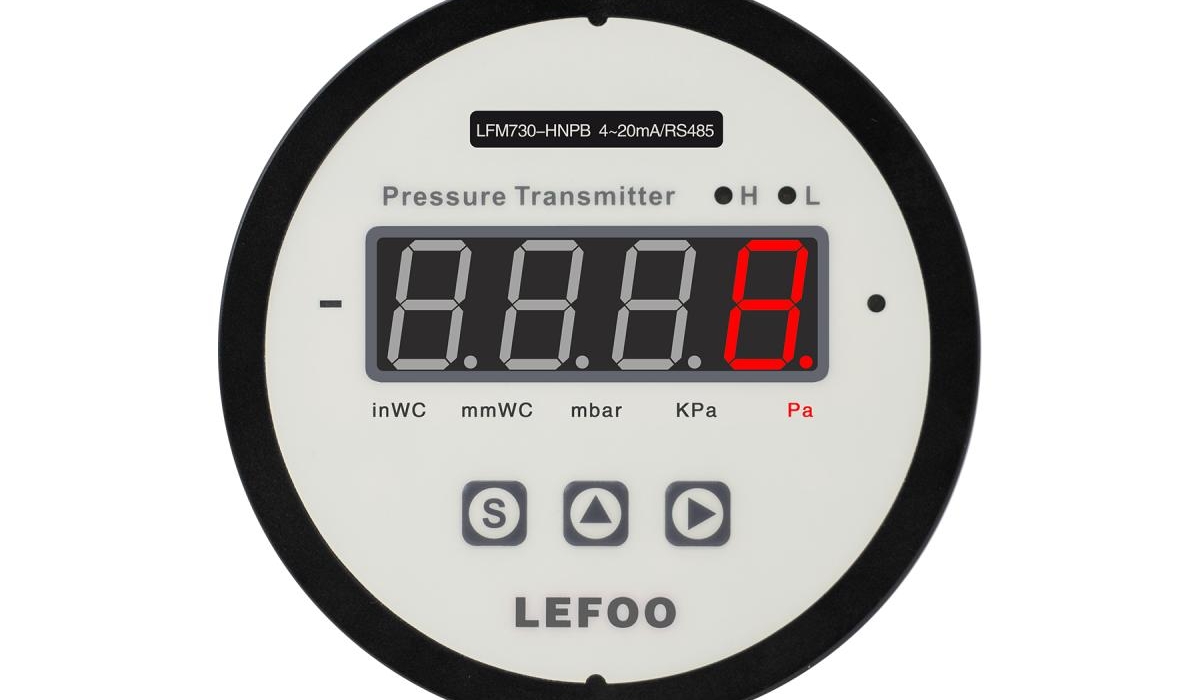

LEFOO LFM73 Multi-Function Differential Pressure Transmitter

Features

  • High-precision MEMS digital pressure sensor to detect positive pressure, negative pressure or pressure difference, a better alternative to the traditional pointer mechanical watch.

  • Versatile product that combines high-lighted LED digital display, switch

  • control and transmitter output.

  • The output range of the internal range is adjustable, and a variety of

  • pressure units can be switched.

  • Built-in buzzer, provide sound and light alarm, can set the alarm pressure value range on site.

  • Optional relay output or alarm, and at the same time LED indication.

  • RS-485 serial communication, support for standard Modbus RTU protocol.

  • Cast aluminum shell, with good impact resistance, heat resistance and so on.

  • No moving parts, shock-proof.

Description

The LFM73 series of multi-function digital display differential pressure transmitters/controllers use a high-precision MEMS sensor, LED digital display and transmitter output to detect the pressure difference; it can completely replace the pointer-type mechanical pressure gauge; The pressure measurement range and pressure unit of this differential pressure transmitter can be easily adjusted on site through buttons. It adopts an IP65 protection grade housing and is suitable for energy management systems, heating, ventilation and air conditioning (HVAC), VAV and fan control, environmental pollution control, static pipeline and clean room pressure measurement, smoke hood control, oven pressurization and boiler ventilation control and other fields.

Technical Parameter

Measured Medium Air or non-corrosive gases
Measurement range +100Pa,+1000Pa,+10000Pa
Overload pressure 5KPa(+100Pa); 10KPa(+1000Pa); 80KPa(+10000Pa)
Accuracy +1.0%FS
Operation Temperature -20°C~80°C
Compensated Temperature -10°C~60°C
Storage Temperature -40°C~85°C
Response time 0.5s (default) / 1.0s / 2s / 4s
Protection Grade IP65
Pressure Connection Concave Interface Φ 6.5 mm
Output Signal 4~20mA(three wire) / 0~10V / RS485
Control Signal 2*SPST, 3A-30VDC / 250VAC
PowerSupply 16-30VDC / 24VAC+20%
Wiring method Cable leads from the back
Consumption ≤1.5W
Housing Material Cast aluminum housing, PC panel
Communication RS-485 standard interface, Modbus RTU protocol
Key Three tap keys
Display 4 bit 0.8" nixie tube
Weight

390g

 Size Chart:



Product model Cable color Red Black White Green Brown Yellow Gray Blue
LFM73X-ANXX

LFM73X-ABXX

Electrical signal +24V GND Vout Iout
LFM73X-ENXX

LFM73X-EBXX

Electrical signal +24V GND A+ B-

LFM73X-NRXX

LFM73X-NDXX

Electrical signal +24V GND

Normally open

contact NO1

Public end

COM1

Normally open

contactNO2

Public end

COM2

LFM73X-ARXX

LFM73X-ADXX

Electrical signal +24V GND Vout Iout

Normally open

contact NO1

Public end

COM1

Normally open

contactNO2

Public end

COM2

LFM73X-ERXX

LFM73X-EDXX

Electrical signal +24V GND A+ B-

Normally open

contact NO1

Public end

COM

Normally open

contactNO2

Public end

COM2

LFM73X-HNXX Electrical signal +24V GND A+ B- Iout

REMlINDER: For other product models, please refer to the information on the surface of the product for specific wiring methods.

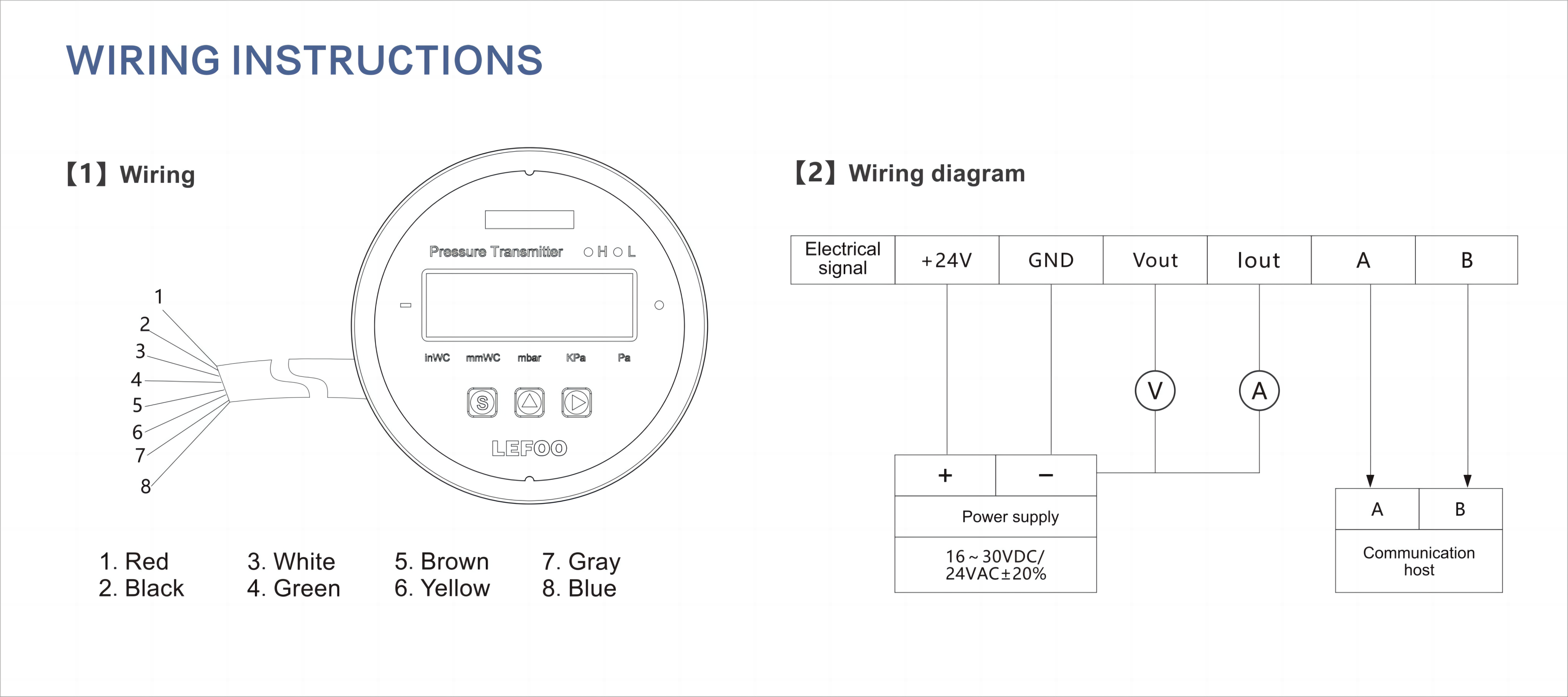

Installation Diagram Installation_of_LFM73.png
