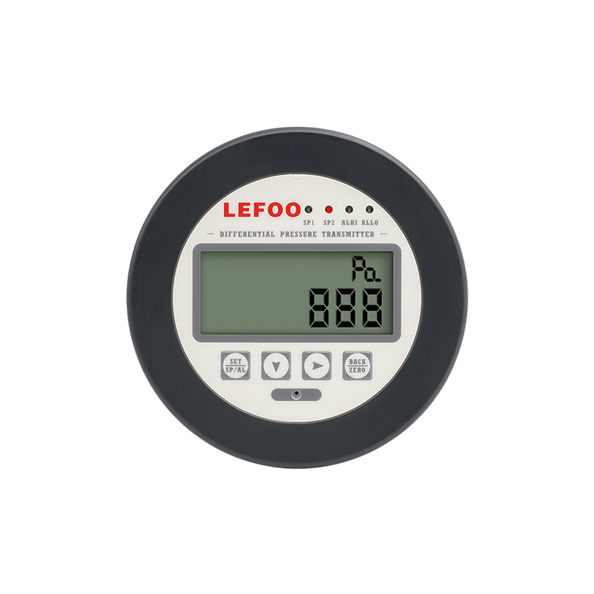

LFM3 Series Differential Pressure Gauge, -10000~10000Pa

LFM3 Series differential pressure gauge use imported high precision sensor and digitalization technology.

They are easy installation, LCD display, clear and accurate reading, and can be applied to measure fan and blower pressures, filter resistance, air velocity, furnace draft, pressure drop across orifice plates and medical care equipment.

This series has three optional discrete output versions (relay, NPN and PNP), can be flexibly applied to control the external equipments.

Features

Non-polar Input: No need to differentiate the negative or positive input voltage sourcing lead

Excellent Material: housing made of FR-ABS, satisfactory impact resistance and heat resistance etc.

Span: 0~±100Pa/0~±1,000Pa / 0~±10,000Pa Accuracy: ±1.0%FS

Various switchable pressure units

Big LCD screen

Manual button of zero calibration

Manual button of default reset

Max. and min pressure value to review

Settable response time

Built-in buzzer with sound-light alarm, field programmable alarm pressure value.

Imported chip

The Max. and Min. pressure range of discrete output can be set (only LFM32 Series)

Specification

General

Value



Over pressure capacity

Span

Overload Capacity

-1000~+1000Pa

-15,000~+15,000Pa

-10000~+10000Pa

-150000~+150000Pa

-100~+100Pa

-4500~+4500Pa

Accuracy

±1.0%FS

Unit

Pa, kPa, mBar, mmHG, inWC, mmWC

Power Supply

Input Voltage: 10~30VAC/VDC with24V DC adapter
(3.5×1.35mm); Built-in 9V 6F22 batter y (only LFM30 Series)

Consumption

≤0.75W

Fluid

Air or neutral fluid

Operation Temperature

-10~+60°C

Storage Temperature

-10~+70°C

LEFOO How to Select LFM32

Dimension in : mm

LFM32   Model
6 -100~100pa Measurement
0 -1000~1000Pa range
2 -10000~10000Pa
  A 4~20mA&0~10V E RS—485 Output Mode
  P Plastic panel (round) Installation
S Stainless steel panel (square) panel
  F Front panel air intake Air intake
B Rear panel air intake method
LFM32 0 A P B Example
More information about product
  • svg LFM3 Series Differential Pressure Gauge
