Air Speed Transmitter LFS10

Product Features

• Material: Made of high-temperature and corrosion-resistant materials.
• Principle: Based on heat dissipation or Pitot tube principle, requiring minimal airflow.
• Performance: Stable and reliable even in harsh environments.
• Stability: Better stability compared to traditional wind speed sensors.
• Measurement Accuracy: Ensures fast and accurate measurement of minute airflow, with high precision and wide range ratio.
• Data Calibration: Internal microcontroller provides accurate calibration of detected data, achieving digital linear compensation and temperature compensation.
• Cost-Effectiveness: No zero drift, excellent long-term stability, making it more cost-effective.
• Durability: Can withstand instantaneous high wind speed and high wind pressure.

Application Scenarios

• HVAC (Heating, Ventilation, and Air Conditioning) systems.
• Filter pressure drop monitoring.
• Flue gas treatment.
• Airflow monitoring in industries such as textiles, chemicals, aviation, power plants, and coal mines.
• Variable air volume systems.
• Biological safety cabinets, operating rooms, clean rooms, etc.

Description

We LEFOO offer a series of wind speed transmitters with high-temperature and corrosion-resistant housing. These wind measuring devices, based on the heat dissipation or Pitot principle, require minimal airflow to maintain stable and reliable performance in harsh environments. Compared to conventional sensors, such as an air velocity transducer or a standard air flow sensor, they offer better stability, faster and accurate airflow measurement, a wide range ratio, and high accuracy through internal microcontroller calibration and digital compensation. Zero drift-free and long-term stability make them cost-effective. Additionally, they can withstand instantaneous high wind speed and pressure.

Technical Parameters

Working Voltage	24V AC/DC±20%
Measuring Range	0-10m/s,0-15m/s,0-20m/s,0-30m/s
Resolution	0.01m/s
Output signal	RS485/Modbus, 0~10VDC/4~20mA
Output load	≤500Ω(Current output),≥2kΩ(Voltage output)
Working temperature	-10-60?
Storage temperature	-20-80?
Probe length	210mm(optional)
Display	WIth/without LCD backlight display(optional)
Protection Class	Shell IP65,Probe IP20
Material	Shell PC,Probe PA6
Electromagnetic compatibility	EN 61326-1
Certifications	RoHS,CE

Dimension

Selection Guide

Code and description					Remark
LFS10	Air Speed Transmitter				Model
	V10	0~10VDC/4~20mA			Output
	RS	RS485/Modbus

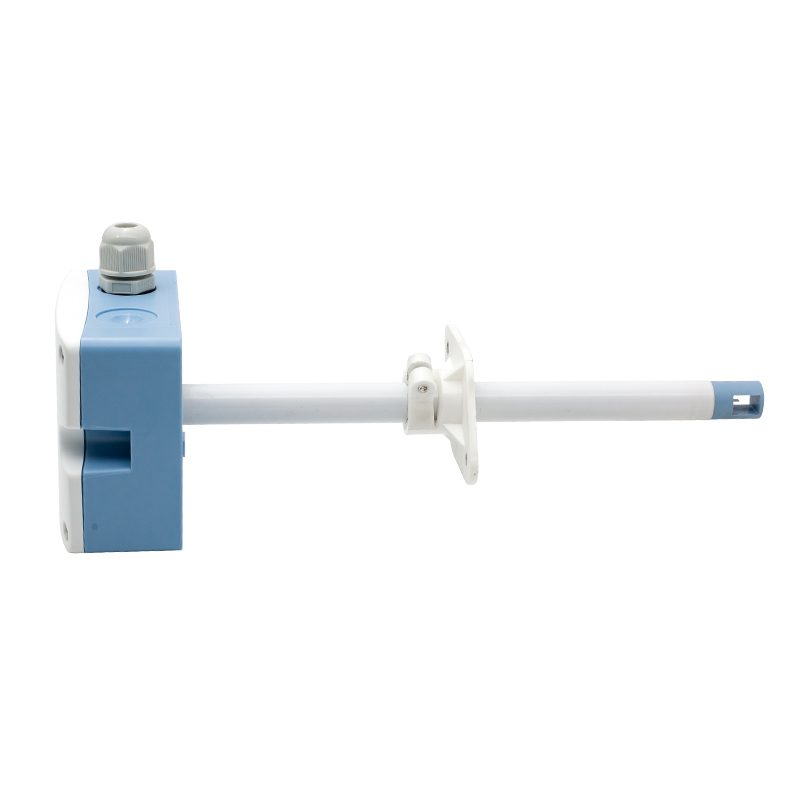

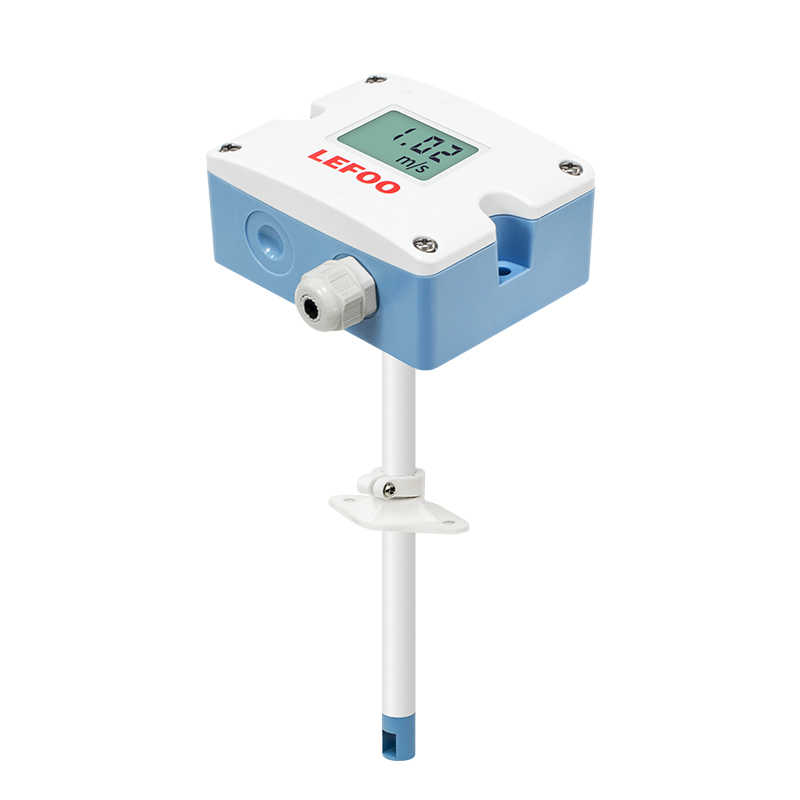

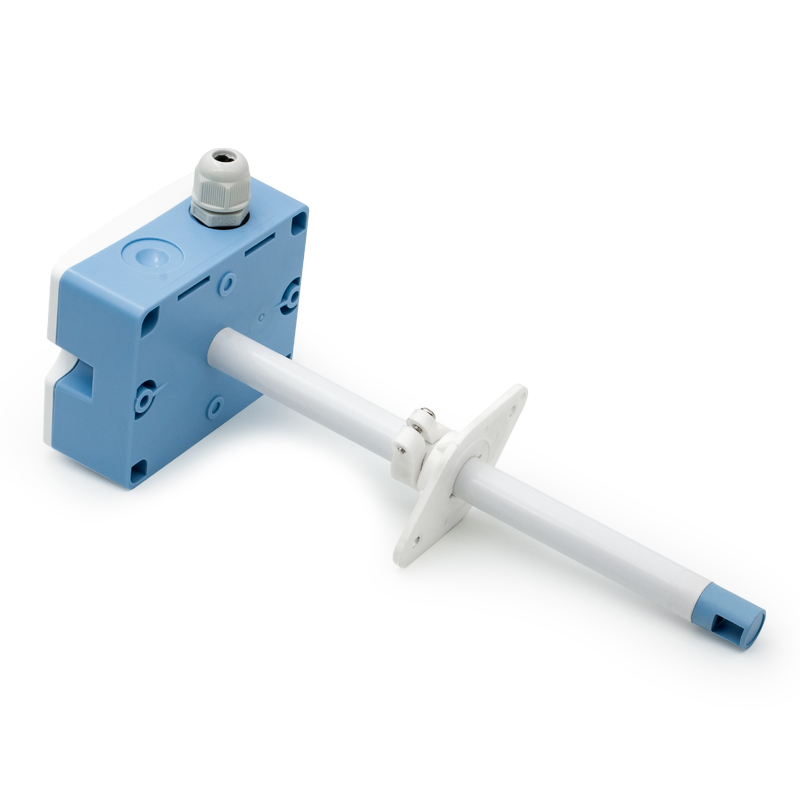

		1	Ducted type		Installation method

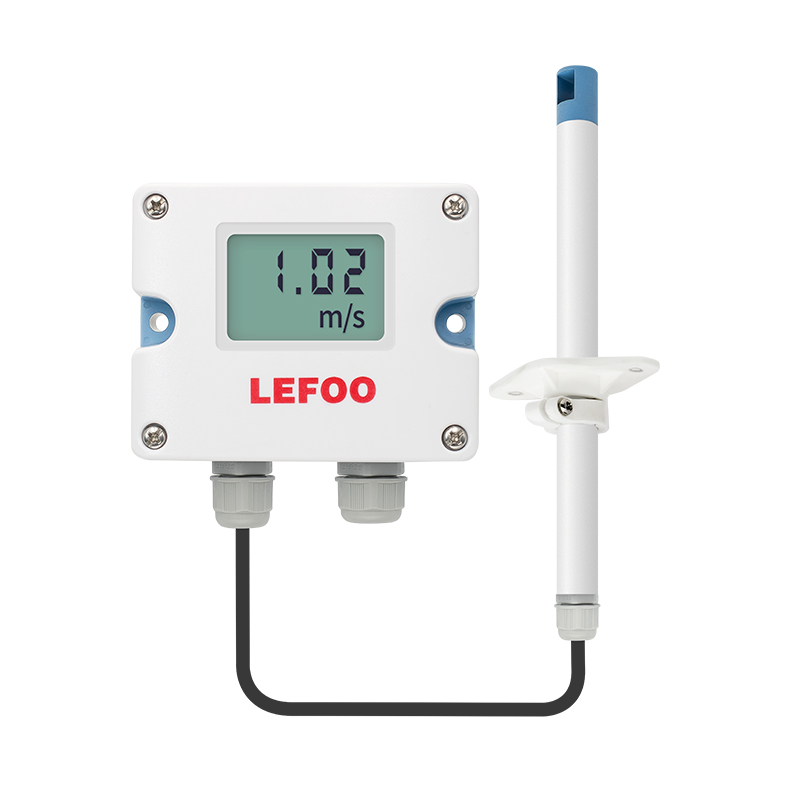

		2	Slipt type
			D	With digital display	Display
			N	without digital display
LFS10	RS	1	D		Selection example
