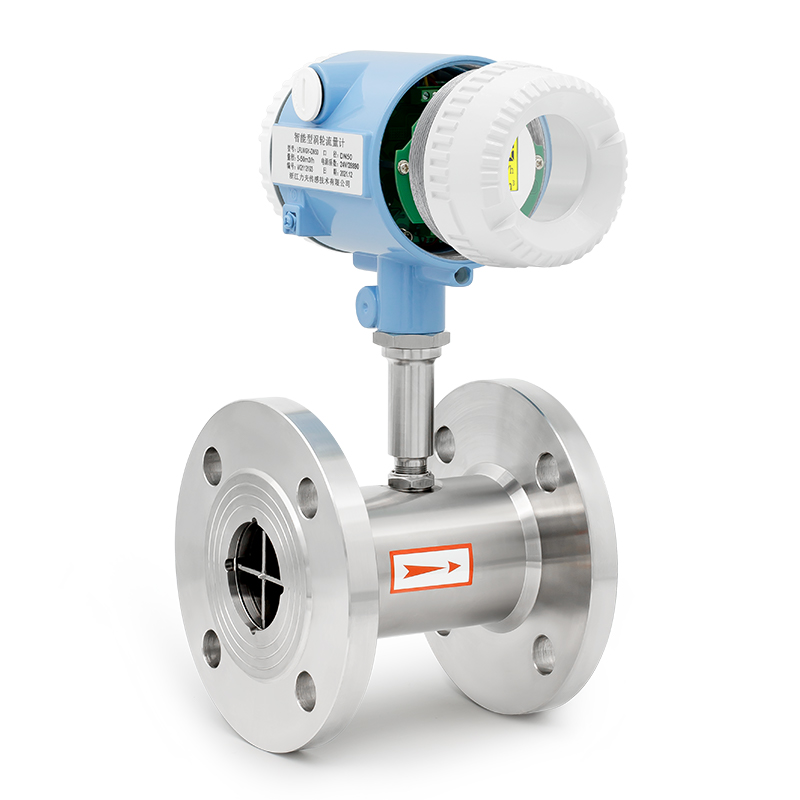

LFLWGY Turbine Flowmeter, 10m/s

The intelligent turbine flowmeter is a new type of intelligent instrument that integrates the turbine flow sensor and the display totalizer, which is developed by using advanced ultra-low power consumption single-chip microcomputer technology. High, free from external power supply interference, anti-lightning, low cost and other obvious advantages.



Features

Pulse output, linear characteristic

High accuracy and responsiveness

Wide measurement flow range

Simple structure, easy installation, use and maintenance



Advantages

1. Small pressure loss.

2. It has high anti-electromagnetic interference and anti-vibration ability, reliable performance and long working life.

3. Using advanced ultra-low power consumption single-chip microcomputer technology, the whole machine has strong functions, low power consumption and superior performance. Smart flow display with nonlinear accuracy compensation. The accuracy of the correction formula is better than ±0.02%.

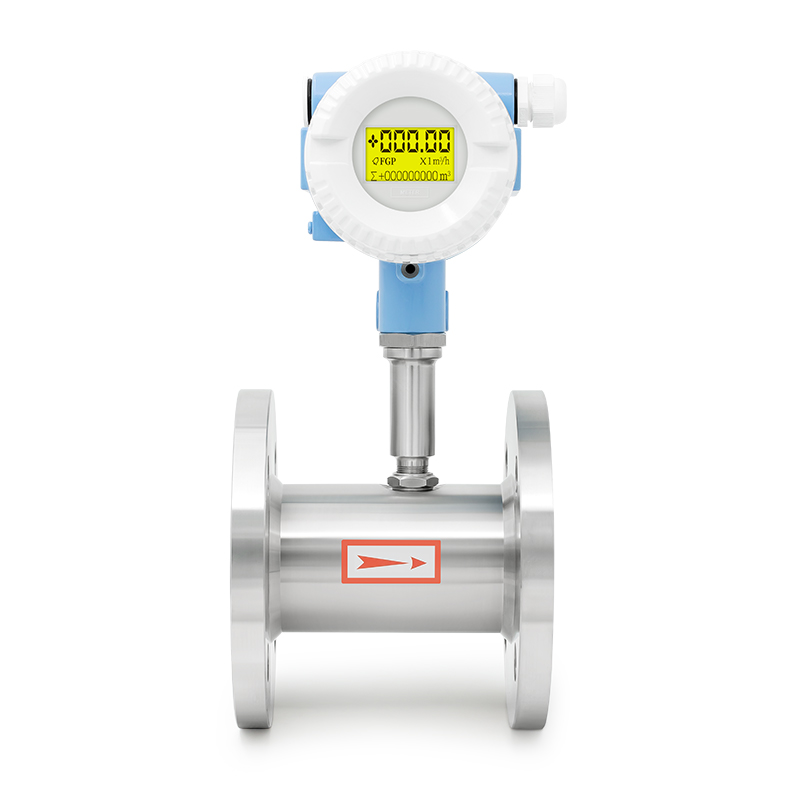

4. The instrument coefficient can be set online by the button, and can be displayed on the LCD screen. The LCD screen is intuitive and clear, and has high reliability.

5. Using EEPROM to protect the accumulated flow and meter coefficient from power failure. The protection period is greater than 10 years.



Specification

Latus rectum	10-500mm
Maximum velocity of flow	10m/s
Output signal	4-20mA, HART, RS485
Electrical connection	Connection Terminals
Comprehensive accuracy class	1
Fluid Electrical Conductivity	≥5μs/cm
Power supply	220VAC, 24VDC
Power consumption	<20W
Nominal pressure	10MPa / 6.3MPa / 2.5MPa / 1.6MPa
Ambient temperature	-25°C ~ 60°C
Connection flange material	Stainless steel (304, 316, 316L)
Protection grade	IP67
Explosion-proof category	Exdib mb IIB T6 Gb
Certification	CE, ROHS
