LFG60 All-in-One Air Quality Transmitter

LEFOO All-in-One Air Quality Transmitter LFG60

Features

Built-in high-precision sensor, stable measure of air quality;
To simultaneously detect and display multiple air quality parameters to meet more demands, including temperature and humidity, CO2, PM2.5, PM10, VOC, and formaldehyde;
3-color LED indicator light can visually show air quality situation, optional turn-off;
Perfect overvoltage and reverse connection protection, long-term reliability;
Optional isolated/non-isolated RS485 output;
Indoor or top suction installation, convenient application of different scenarios.

Description

LEFOO LFG60 All-in-One Air Quality Transmitter is used to detect a variety of air quality parameters, including temperature and humidity, CO2, PM2.5, PM10, VOC, formaldehyde, up to 7 parameters; optional isolated/non-isolated RS485 output, built-in Modbus protocol, realize real-time detection of multi-point distribution data. indoor type can be equipped with display screen and keys, and the split screen can display air quality parameters.

By configure communication parameters, the three-color LED indicator can be equipped to directly indicate the air quality situation. both indoor type and top suction type can configure RS485 communication address through dialing code. The product has wide power supply range and perfect overvoltage and reverse connection protection; it can be widely used in multi-parameter air quality monitoring in various commercial complexes, intelligent building, office environment hotels, airports and schools.

Technical Parameter

Temperature		Relative humidity
Sensor	Digital temperature sensor	Sensor	Digital humidity sensor
Range	0~50°C	Range	0~100%RH
Accuracy	±0.5°C@20°C; ≤±1°C@0~50°C	Accuracy	Typical ±3% RH@20°C & 20 to 80% RH
Response time	10~30s (20°C, slow flow air)	Response time	≤10s (20°C, slow flow air)
PM2.5/PM10
Sensor	Laser dust sensor, detection particle size 0.3~10μm
Range	PM2.5: 0~500 ug/m³, with a particle size of 0.3~2.5μm
	PM10: 0~600 ug/m³, particle size 0.3~10μm
Precision/consistency	PM2.5: ±10 μg/m³@0~100 ug/m³, ±10%FS@100~500/600 μg /m³, @25°C
Resolution ratio	1 μg /m³
Response time	Continuous measurement mode with single response time <1s, integrated response time <10s
CO2
Sensor	The NDlR sensor, with the ABC self-check function
Range	0~5000 ppm
Accuracy	(±40 ppm±3%MV)ppm
Response time	2 mins
VOC		Formaldehyde
Sensor	Metal oxide semiconductor gas sensor	Sensor	Electrochemical-type gas sensor
Range	0~2 ppm	Range	0~1 ppm
Resolution ratio	1ppb	Accuracy	+10%FS@25°C
Response time	First power-up for 1 hour; pre-heat for 3mins	Response time (T90)	<120s
General Parameters
Power Supply Voltage	12~36VDC/24VAC+20%
Output Signal	Isolation/non-isolated RS485
Work Environment	0~50°C & 0~95%RH(no condensation)
Storage Temperature	-20~60°C & 0~95%RH (no condensation)

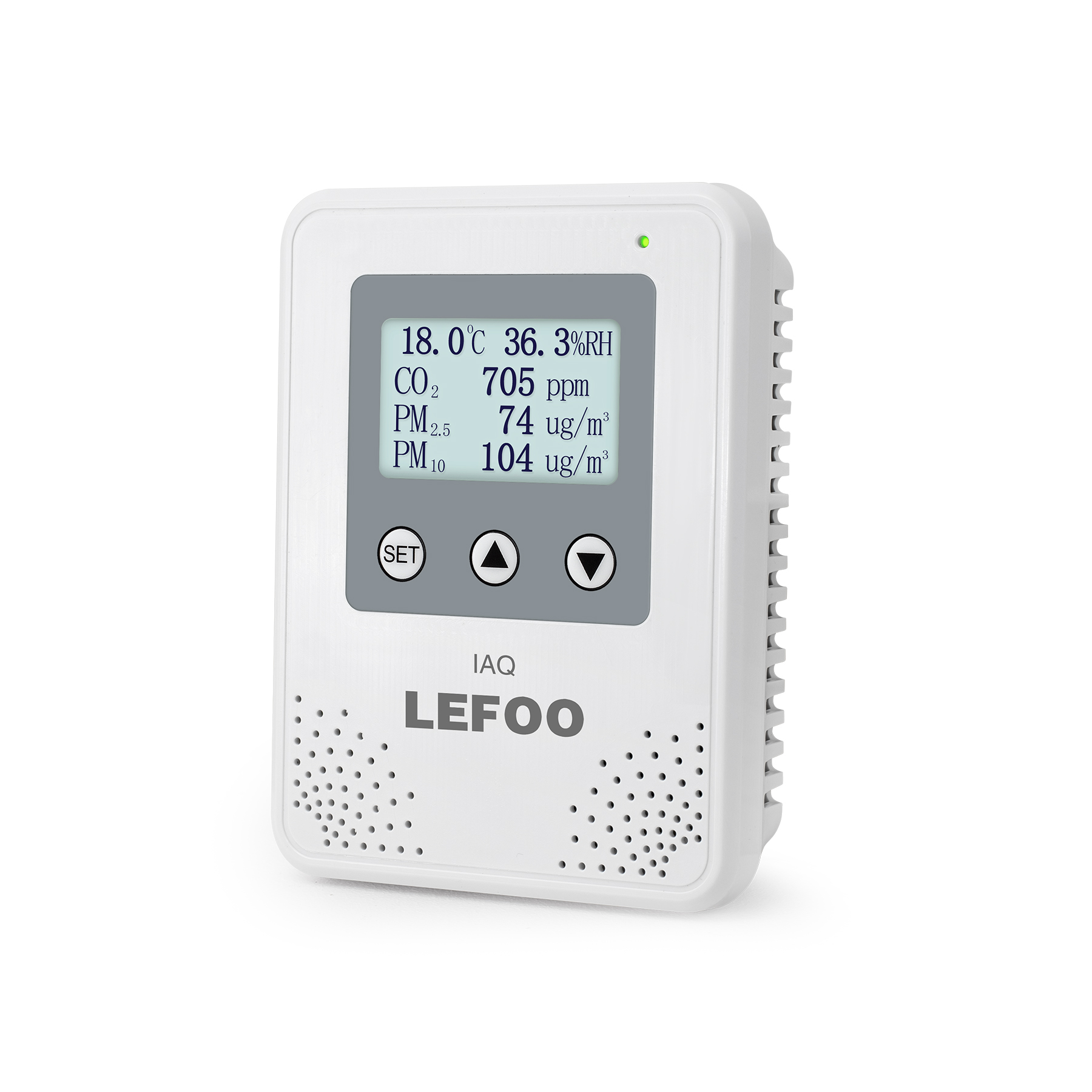

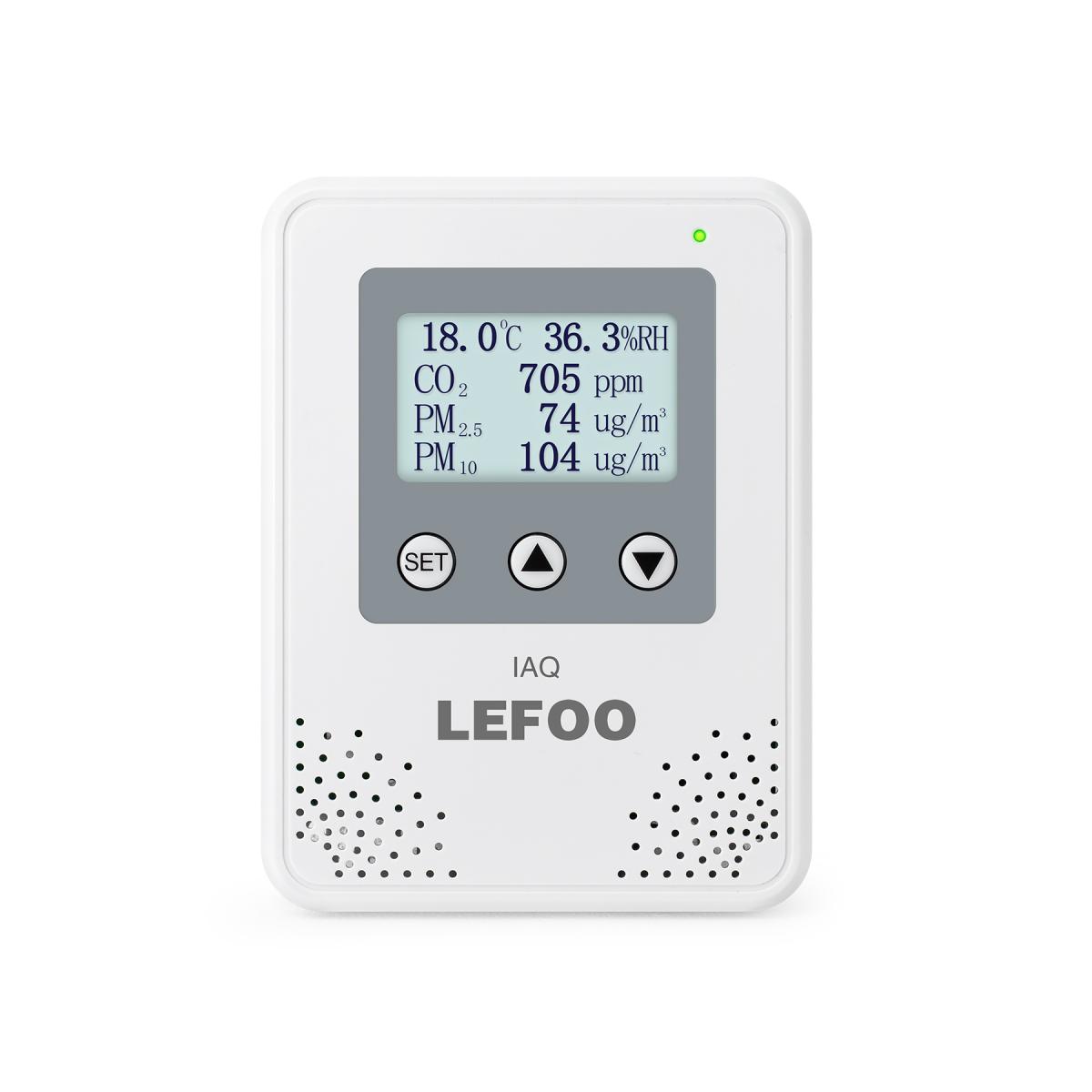

Display and Buttons	Indoor type can be optional
LED pilot lamp	Indoor type can be optional Light indicate: Green: good air quality; Yellow: air quality is generally; Red: poor air quality
Levels of Protection	IP30

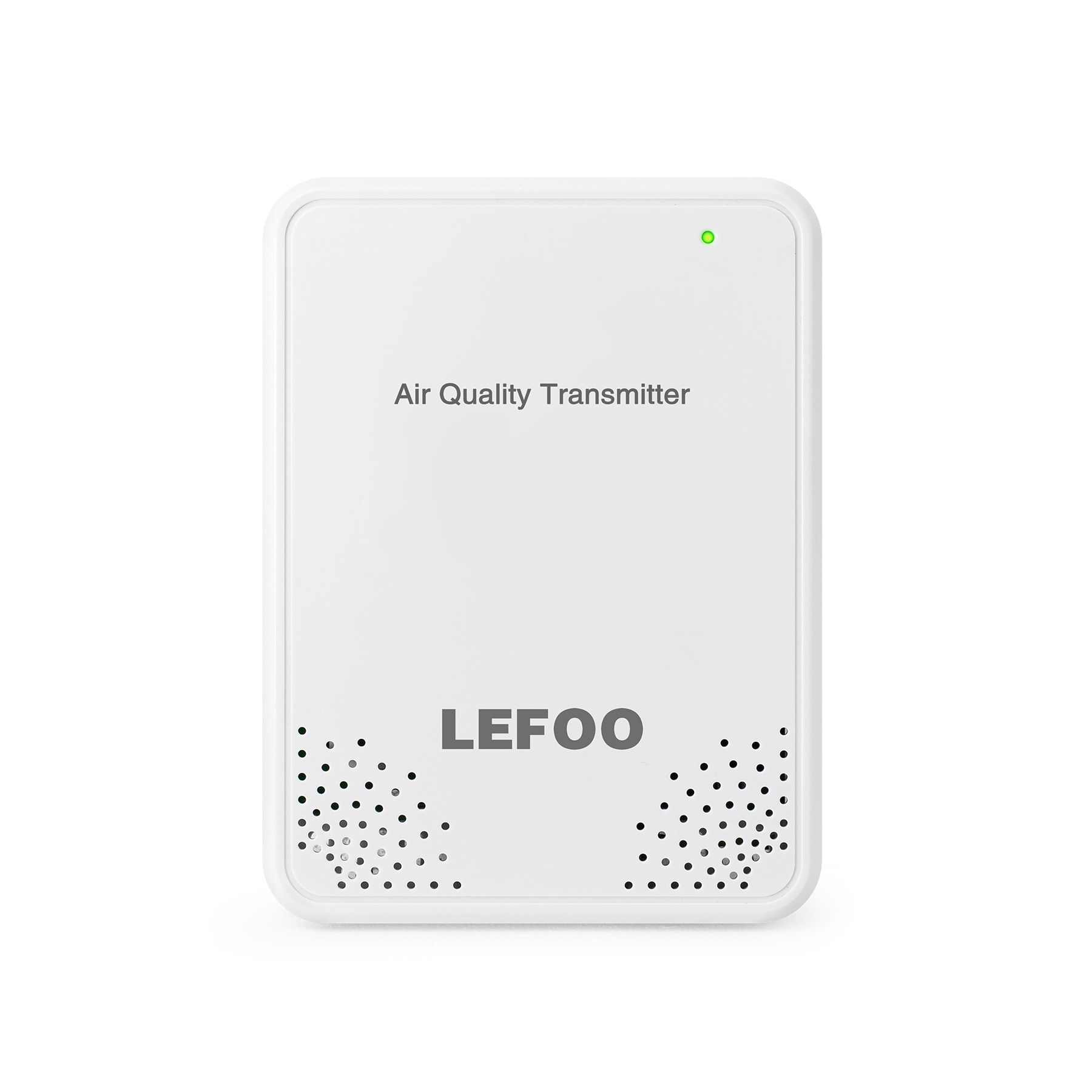

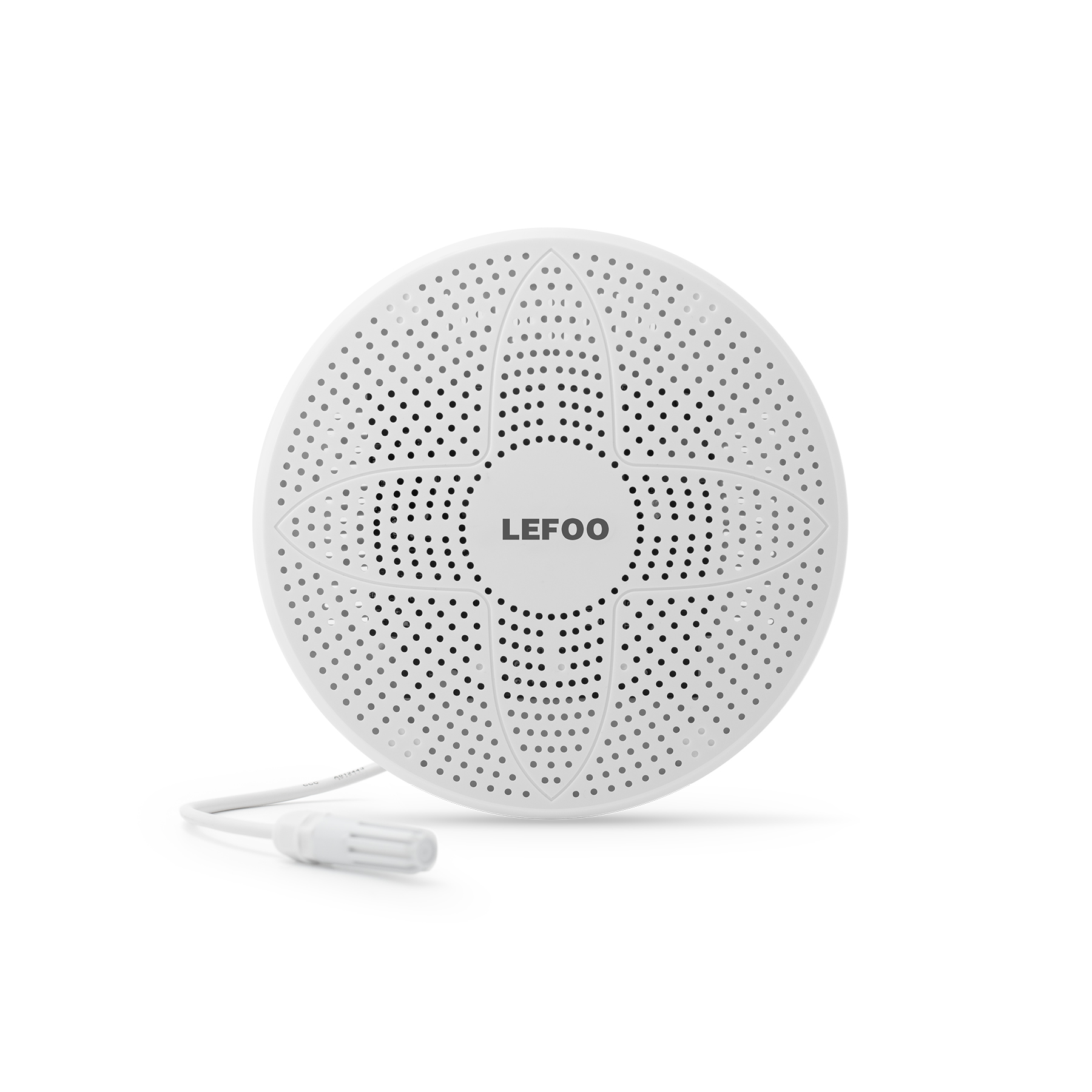

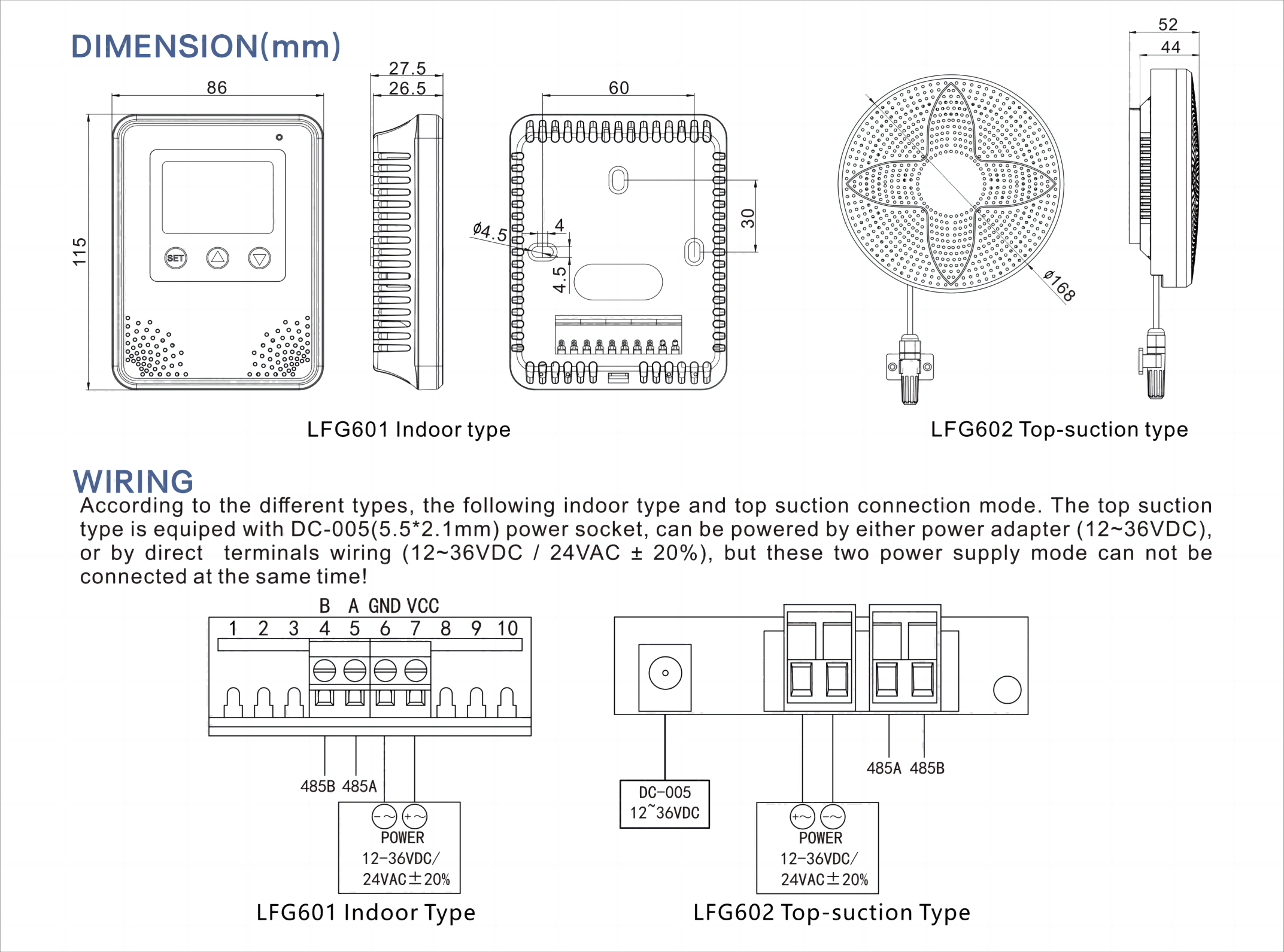

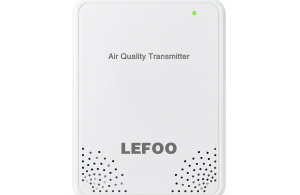

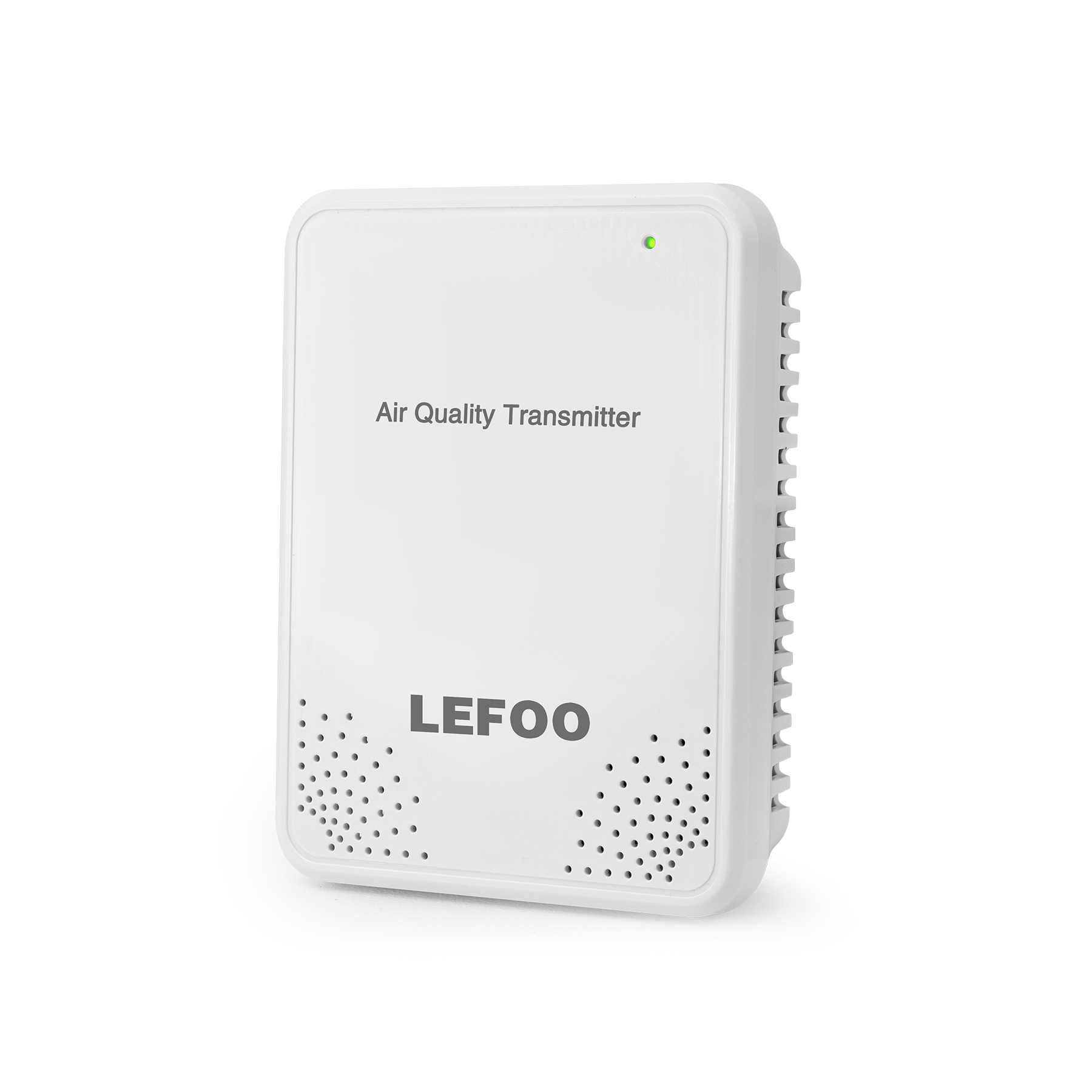

Way to Install	Indoortype, Top-suction type
Case Material	Indoor type: PC Top-suction type: ABS
Weight	Indoor type: 148g Top-suction type: 235g
