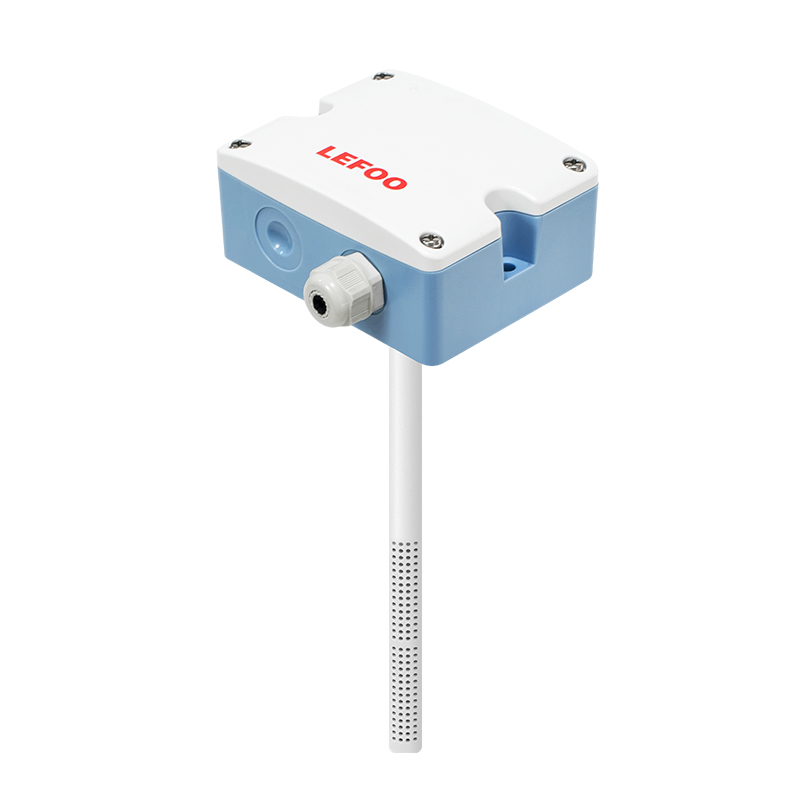

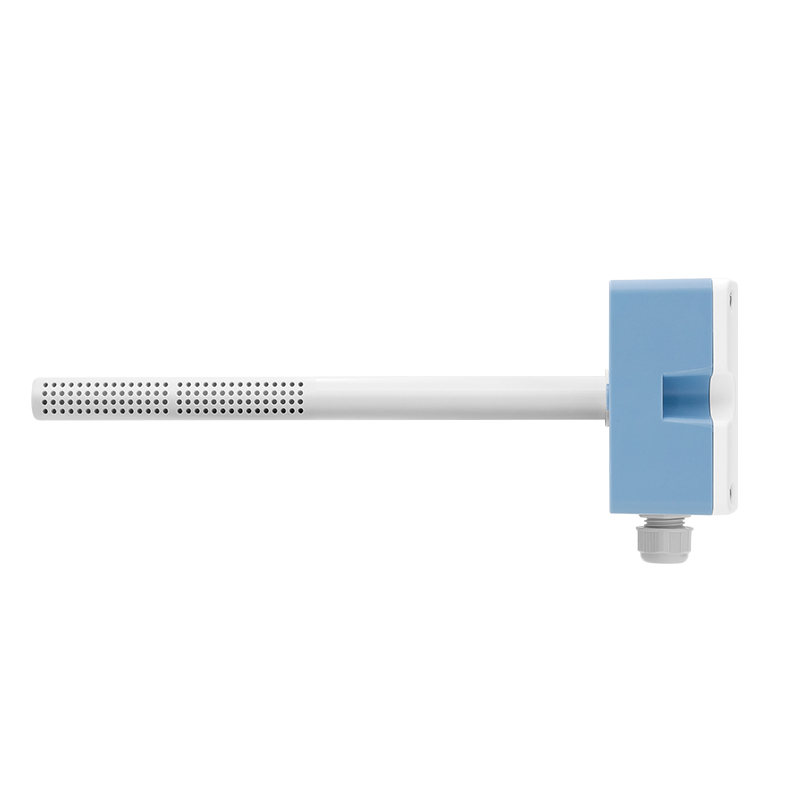

LFG202 Duct Carbon Dioxide Transmitter

FEATURES

• Imported high-performance NDlR sensor.
• The sensor is oxygen-free and has a service life of more than 5 years.
• The internal waterproof and breathable membrane design.
• Effectively prevents water vapor from entering.
• Good long-term stability and reliability, with ABC self-calibration.

DESCRIPTION

The LFG202 Duct Carbon Dioxide Transmitter, utilizing the principle that different gases exhibit distinct absorption capabilities for infrared light within a specified wavelength range, accurately measures the concentration of the target gas by assessing the degree of infrared light absorption. This LEFOO duct mounted CO2 sensor, renowned for its long lifespan and excellent stability compared to electrochemical sensors, employs an imported high-performance NDIR sensor for swift, stable, and precise CO2 concentration measurement.

With its wide power supply range and high-level shell protection, the LFG202 is designed to adapt to various harsh conditions, making it a suitable choice for industrial environmental monitoring. Whether it's ducts, offices, factory workshops, laboratories, or other environments, this digital CO2 monitor ensures reliable and accurate CO2 level detection, playing a crucial role in HVAC systems as a carbon dioxide sensor.

TECHNICAL PARAMETERS

Output Mode	4~20mA(3-wire)	0~5V(3-wire)	0~10V(3-wire)	RS485(3-wire)
Working Voltage	10-30VDC	10-30VDC	16-30VDC	10-30VDC

Sensor	NDlR sensor with ABC self-calibration
Average Current	≤40mA
Working Temperature	0?~50?
Working Humidity	0-85%RH(no frost)
Measure Concentration	0-2000PPM/0-5000PPM
Accuracy	±(40PPm+ 3%MV)ppm
Response Time	2min
Protection Class	shell lP65/Probe lP30
Electromagnetic Compatibility	EN 61326-1
Service Life	>5 years

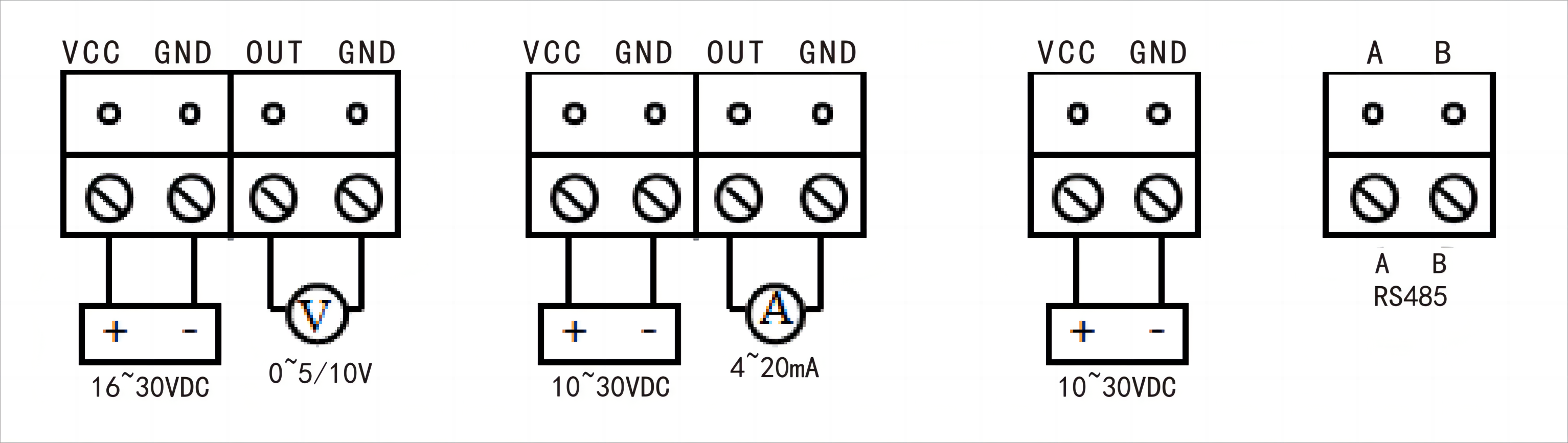

WIRING INSTRUCTIONS
Depending on the selection, the wiring methods will be diferent. The following diagrams show the wiring methods of
voltage output, current output, and RS485 output: (See document for details: LFG202 Duct Carbon Dioxide Transmitter )
