Product Features
1 Easy and flexible to install, Easy and safe access
2 Super LCD display, rich in function
3 High precision, vibration resistance, long lifetime
4 An intelligent control instrument integrating pressure measurement, large-screen LCD display and control
Product Description

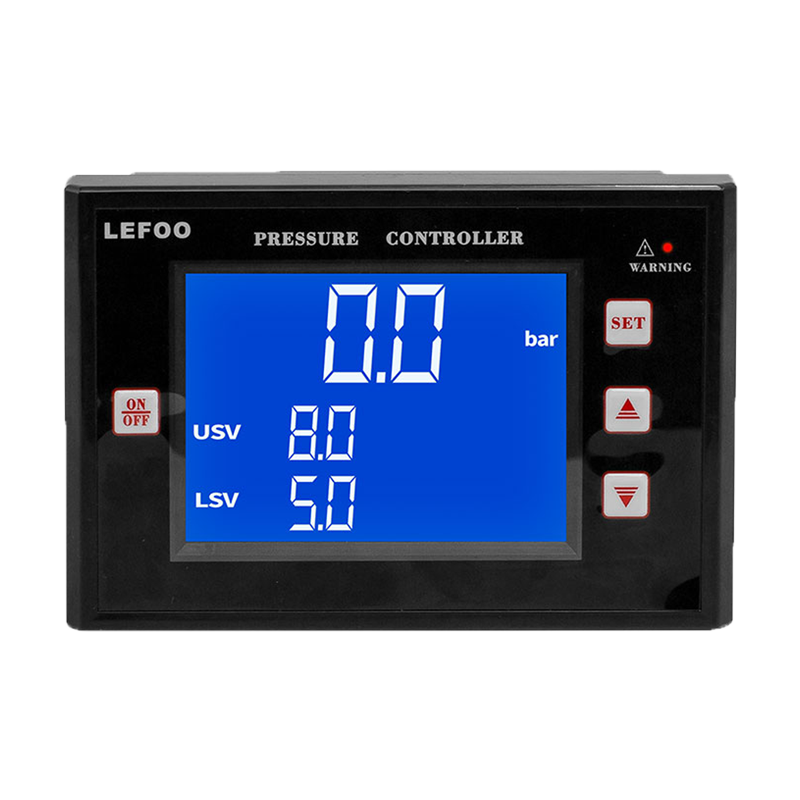

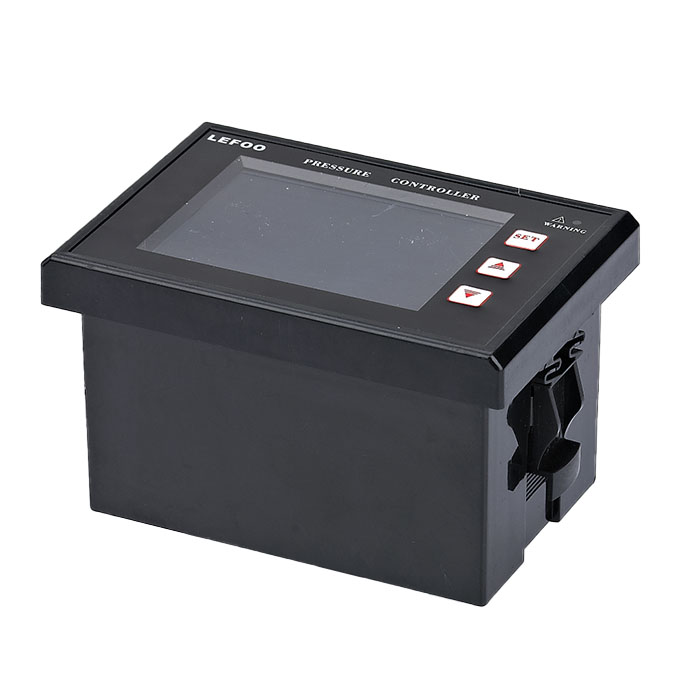

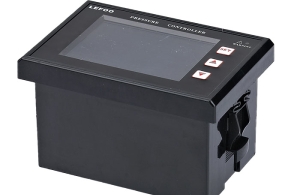

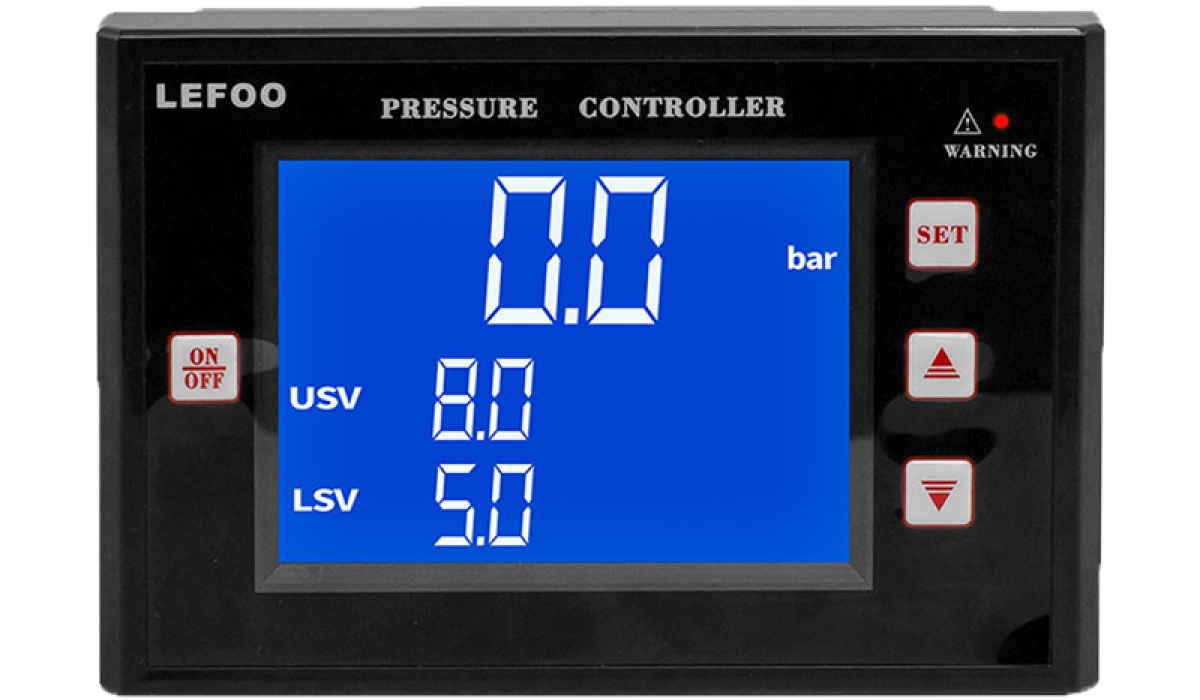

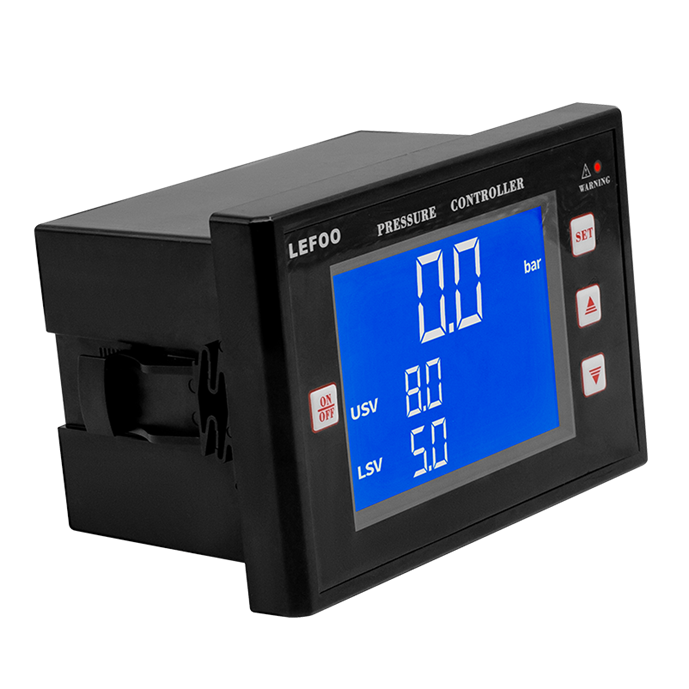

LFDS65 (650/652) series intelligent pressure controller is an intelligent control instrument which integrates pressure measurement, large LCD screen display and control ability. The instrument can automatically open / close relay output according to the pressure state in the vessel to ensure the pressure condition in the vessel. Provides a variety of connection methods to fully meet various specific installation needs, built-in multiple setting items, and the user can adjust the working parameters by himself, which is flexible and convenient. It has the characteristics of simple operation, clear display, anti-vibration, high control precision and long service life.
Technical Parameters
| Pressure Type | Vacuum type (negative pressure) | Medium pressure |
| Pressure Range | -101~0 kPa | 0~1.6 MPa |
| Withstand Voltage | 1.5 times | 2 times |
| Media | Non-corrosive dry gas. Gas or liquid compatible with ceramics and copper | |
| Display Mode | LCD | |
| Pressure Form | Gauge pressure | |
| Rated Operating Voltage | 220/110VAC | |
| Output Mode | Relay switch output / AC output | |
| Load Capacity | 2200W( Single Route) | |
| Storage Temperature | -40°C~85°C | |
| Operating Temperature | -10°C~50°C | |
| Protection Grade | IP 54 | |

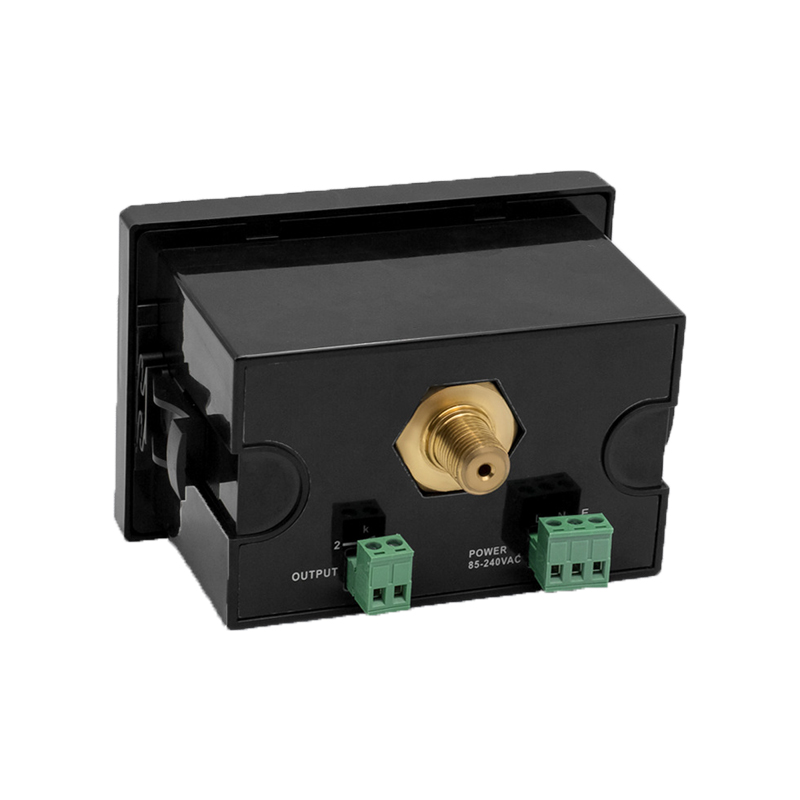

| Installation Interface | NPT1/4 external thread, G1/4?R1/4( optional) | |
| Special Functions | Regular/customized | |
| Accuracy | ±1%F.S | |
