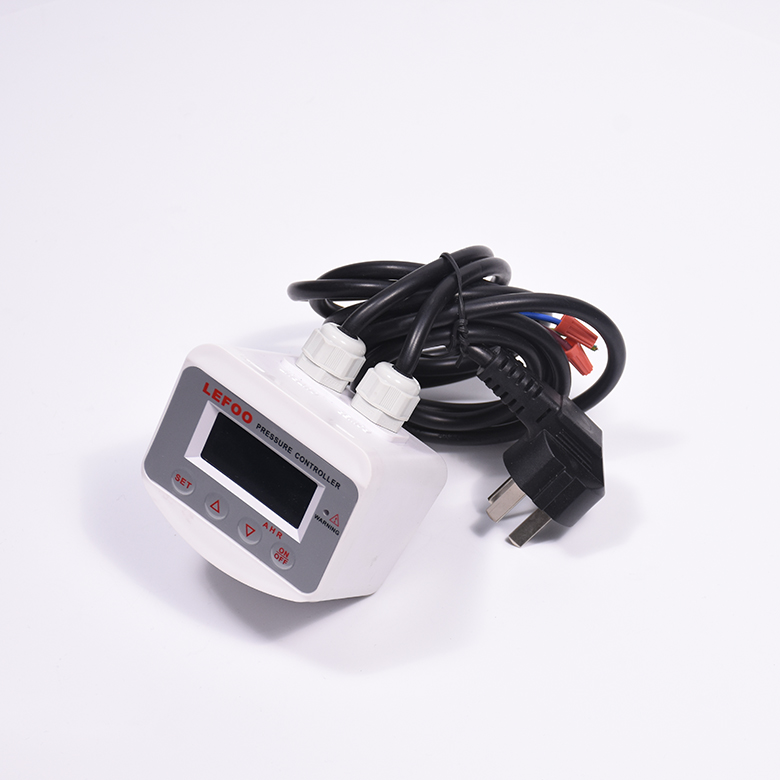

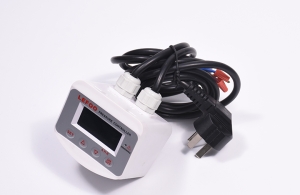

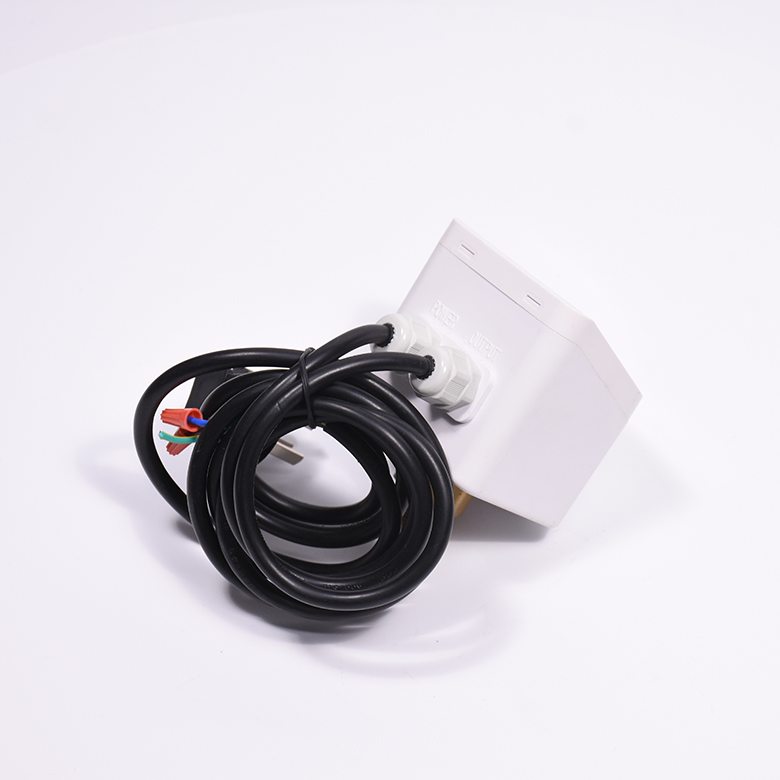

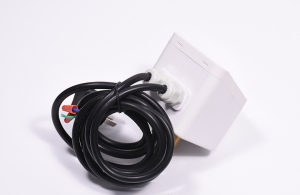

LFDS630 630/631/632 series is made by high-reliability sensor to measure pressure. After disposed by back-end circuit, the signal shows on displayer and automatically control relay output when pressure changes.

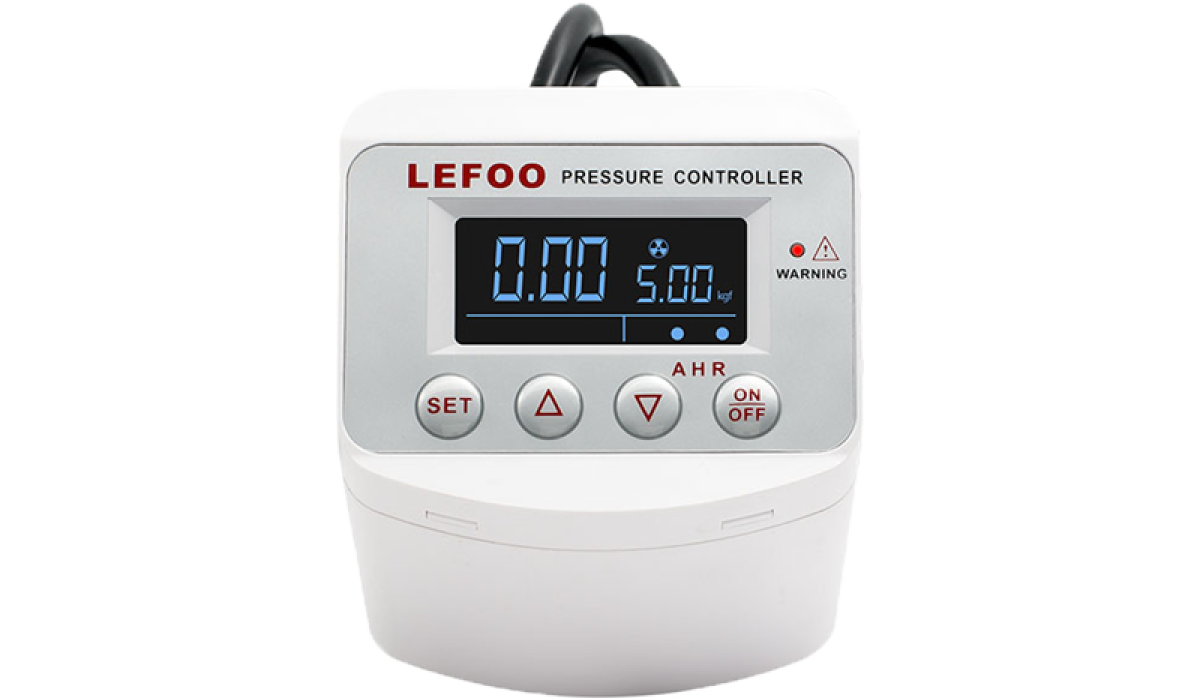

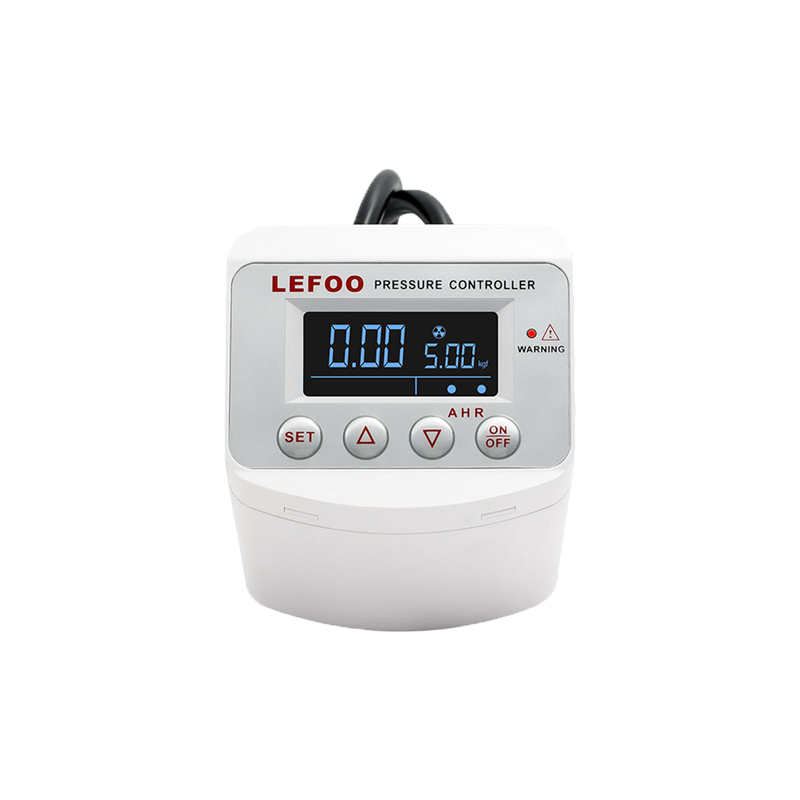

With design of engineering plastic shell and high-contrast LCD displayer, this series product can be used in various industrial fields. Kinds of connection types can meet different installation requirements.
User can adjust parametersfreely, with variety of settings built-in, it’s flexible and convenient. LFDS63 630/631/632 series is with features of anti-vibration, long lifetime, easy operation, high stability and clear display.
Specification
| Item | LFDS630 | LFDS631 | LFDS632 |
| Pressure range | -101.3~0Kpa | 0~1.0MPa | 0~2.0MPa |
| Proof pressure | 1.5 times | 2 times | 2 times |
| Medium | Air, noncorrosive gasand oil, water | ||
| Rated working voltage | 220VAC | ||
| Power Consumption | 1.3W(No Load) | ||
| Load | 220VAC 10A (max.) | ||
| IP class | IP52 | ||
| Connection | Brass,1/4NPT male | ||
| Accuracy | ±1%F.S | ||
| Storage temperature | -10°C - 60°C | ||
| Operation temperature | -10°C - 50°C | ||
| Dimension | 80*88*108mm(with connection) | ||
