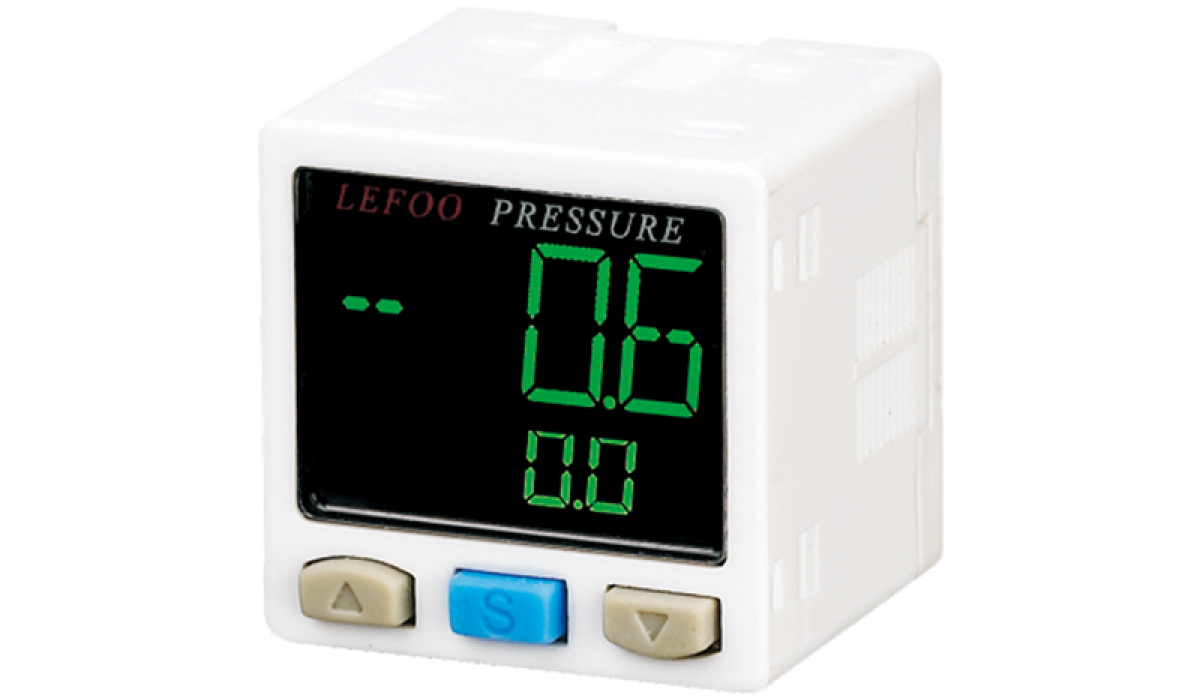

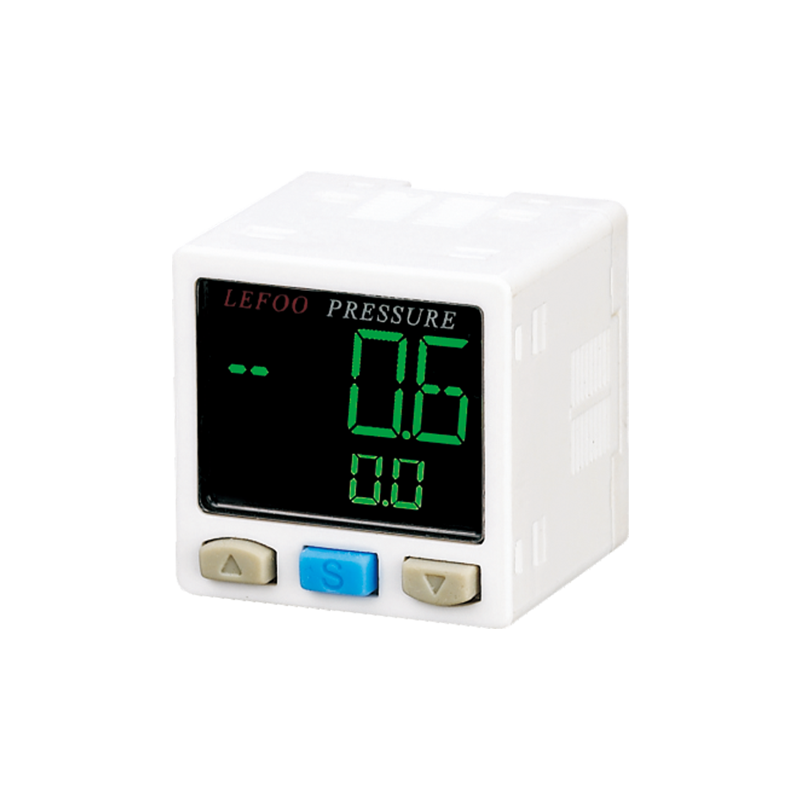

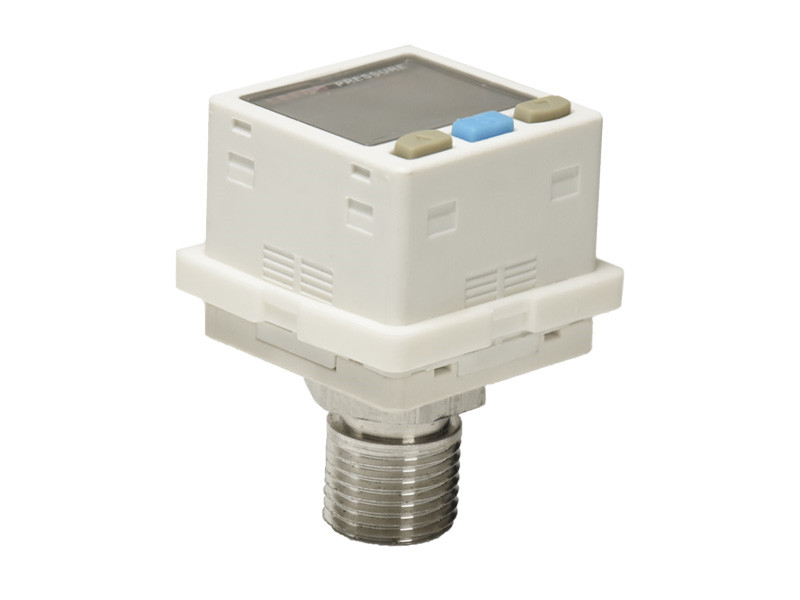

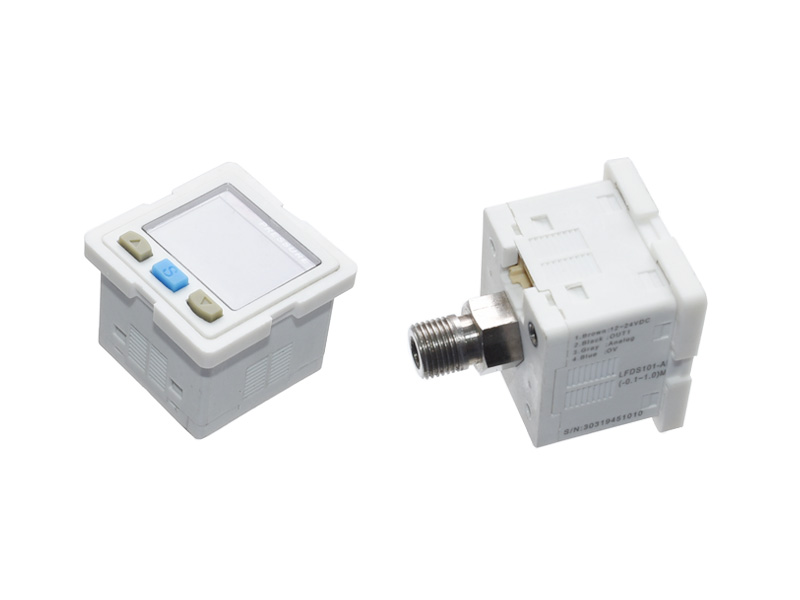

LFDS10X uses highly reliable sensor to measure the pressure, its output can be switch signals or analog signals. LFDS10X is suitable for all kinds industrial field.
The double-LED digital display and three-keys menu setting function make the product more convenient to use. There are many internal setting items, users can adjust the working parameters, which is flexible and convenient.
Multiple connections can fully satisfy different installing demand. This series of products have the features of small size, shock resistant, long life span, clear display, simple operation and etc.
| Series No. | LFDS102 | LFDS101 | |
| PressureRange | -100~100kPa | -100~1000kPa | |
| Proof Pressure | 3 time full scale | 1.5 times full scale | |
| Fluid | Air, Non-Corrosive Gas | Air, Non-Corrosive Gas | |
| Power Supply | 12~24VDC | 12~24VDC | |
| Consumption Current | <20mA - Non-load | <20mA - Non-load | |
| Switch Output | NPN or PNP open collector output Max Current:100mA Voltage decrease <1.5V | NPN or PNP open collector output Max Current:100mA Voltage decrease <1.5V | |
| Output working | Normally Open/Normally Closed | Normally Open/Normally Closed | |
| Hysteresis | 1-8 Stage - default 3 stage | 1-8 stage - default 3 stage | |
| Repeatibility | ±0.3%F.S | ±0.3%F.S | |
| Comprehensive Accuracy | ±1%F.S | ±1%F.S | |
| Response Time | 2.55102525050010005000ms | 2.55102525050010005000ms | |
| Analog Output | Voltage Output | 1-5V±5% | 1-5V±5% |
| Current Output | 4-20mA±5% | 4-20mA±5% | |
| Storage Temperature | -10°C - 60°C | -10°C - 60°C | |
| Operation Temperature | 0°C - 50°C | 0°C - 50°C | |
| Temperature Characteristic | ±2.5% F.S(basing on 25°C) | ±2.5% F.S(basing on 25°C) | |
| Accessory | CN-14A-C2( with2mconnection cable) | CN-14A-C2( with2mconnection cable) | |
| Model | LFDS102SENW | LFDS101SENW | LFDS102AEPW | LFDS102VENW |
| Range | -100~100kPa | -100~1000kPa | -100~100kPa | -100~100kPa |
| Switch | 2 circuit | 2 circuit | 1 circuit | 1 circuit |
| Pressure Connection | G1/8 male + M5 female thread | G1/8 male + M5 female thread | G1/8 male + M5 female thread | G1/8 male + M5 female thread |
| Electrical Connection | 2NPN | 2NPN | 1PNP + 1 current output | 1PNP + 1 voltage output |
| Analog Current Output | N/A | N/A | 1 circuit | N/A |
| Analog Voltage Output | N/A | N/A | N/A | 1 circuit |
LFDS630 Digital Pressure Controller, -101~10kPa, positive pressure:0~20bar
