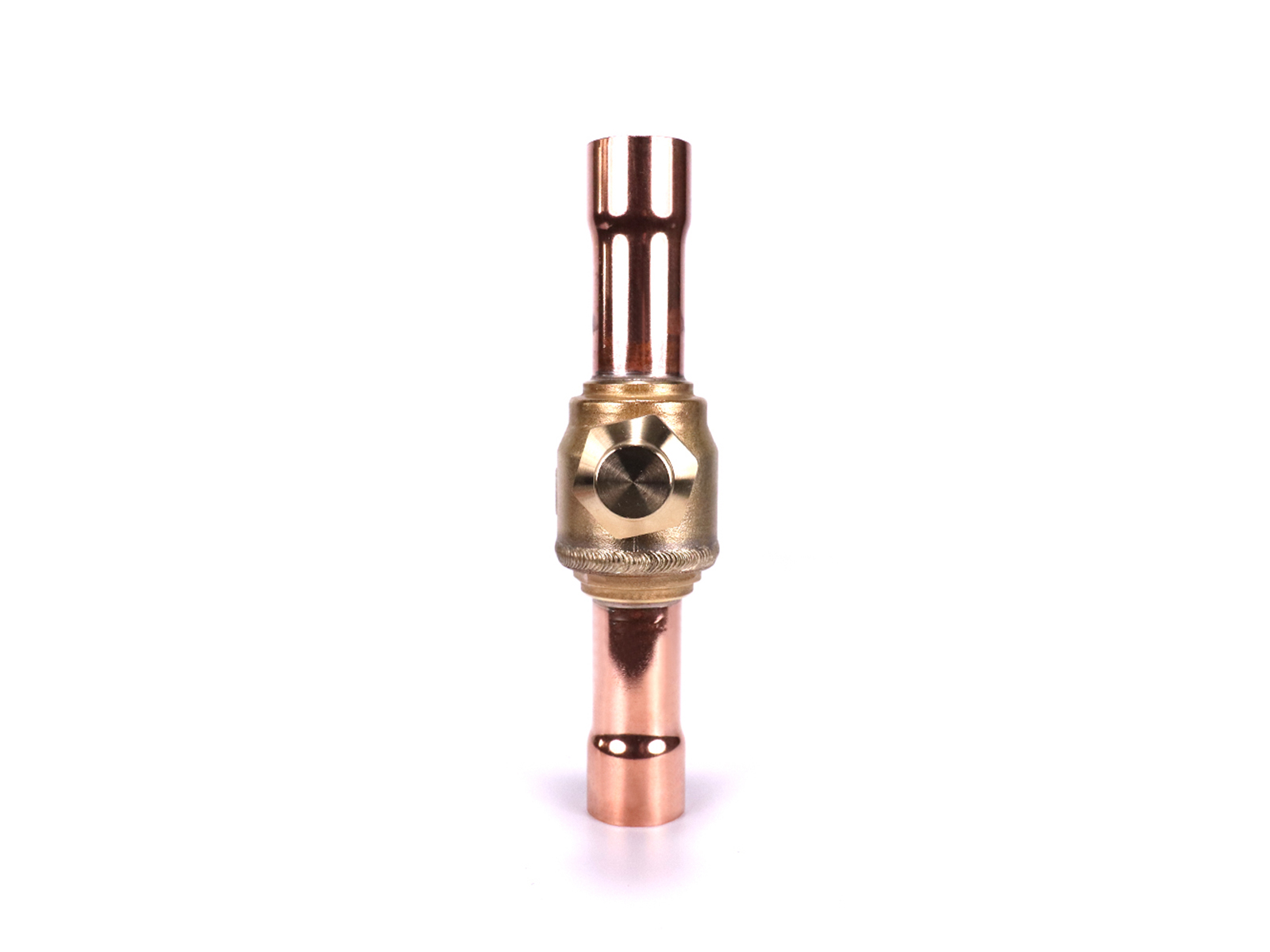

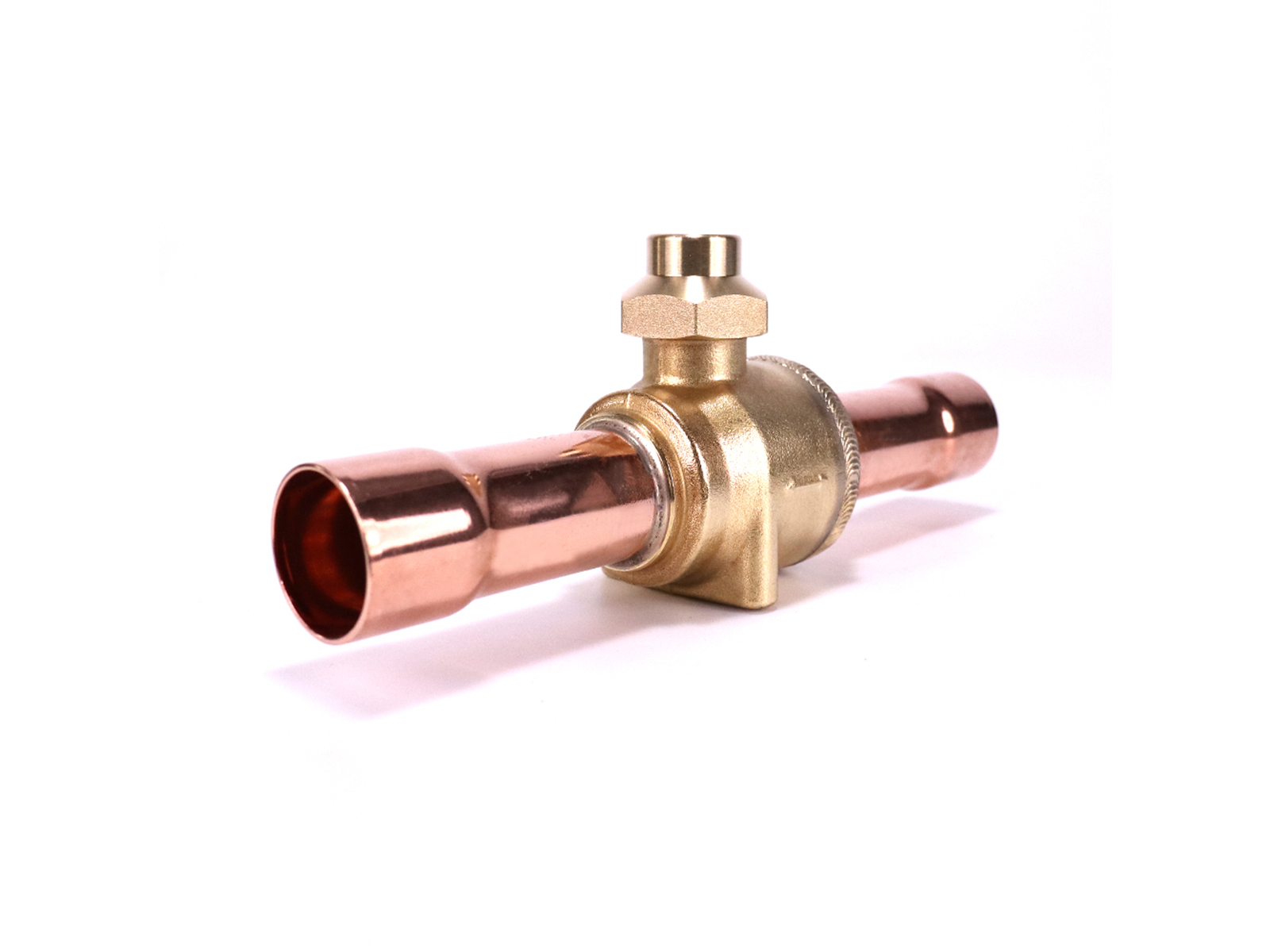

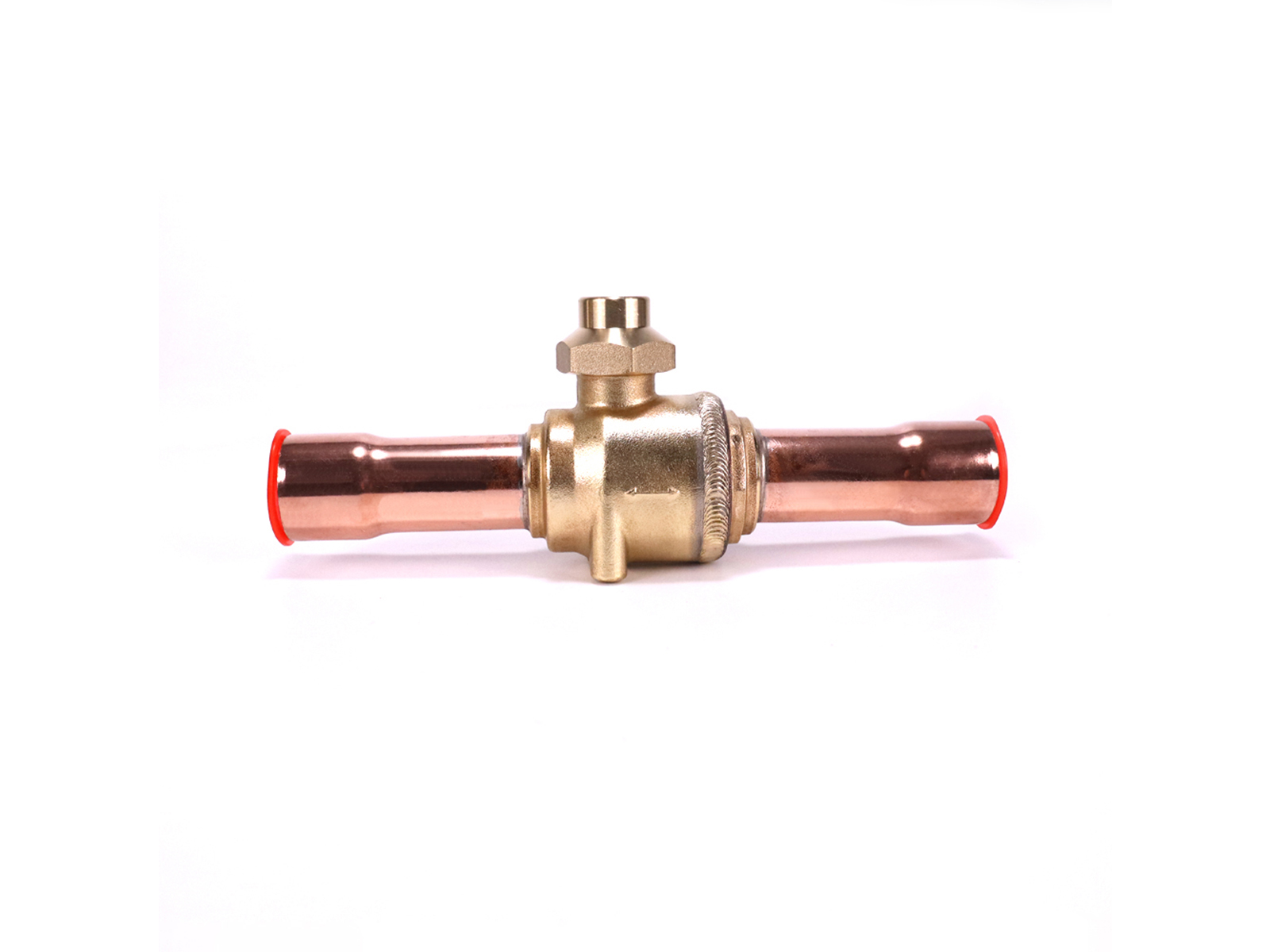

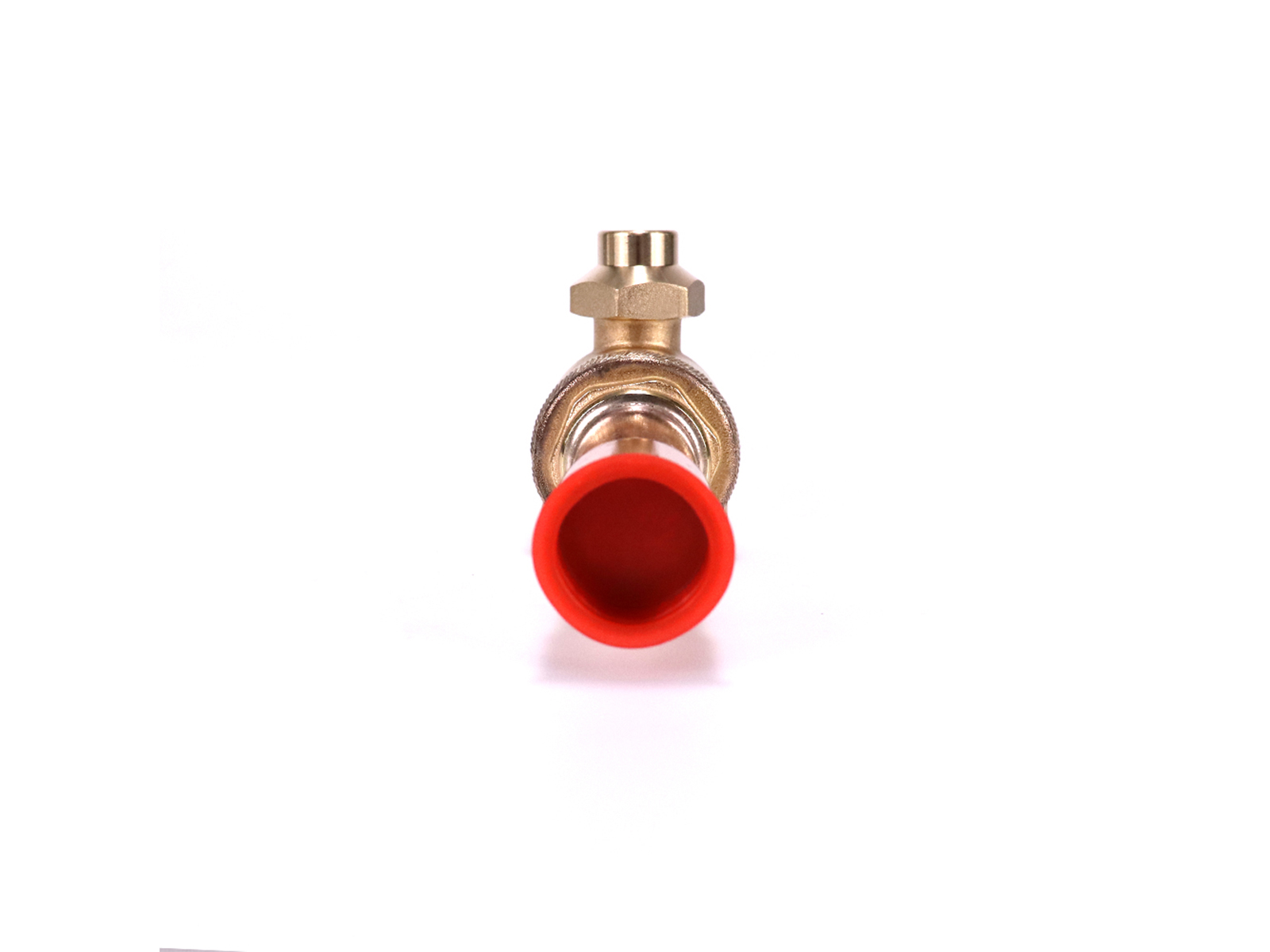

The ball valve is a manually adjusted globe valve, suitable for two-way flow, used in the liquid, suction and hot gas pipelines of refrigeration, refrigeration and air conditioning devices.
The valve seat and the sealing place have good sealing performance. To provide maximum flow, while the valve has a wide operating temperature range, the ball valve is equipped with a sealing cap with a secondary seal.
Parameters
| General | Value |
| Applicable Refrigerant | HCFC or HFC (Customer choice) |
| Applicable Medium Temperature | -40~+120°C |
| Max. Working Pressure | 4.5MPa |
| Max. Compression Pressure | 6.5MPa |
| Yearly Leakage of Refrigerant | ≤2g R22/a |
