Features
- Pressure adjustable
- Single-Ple Single-Throw
- Pressure controller of fire protection facilities (such as fire extinguishers), automation, hydraulic systems and other equipments
Description

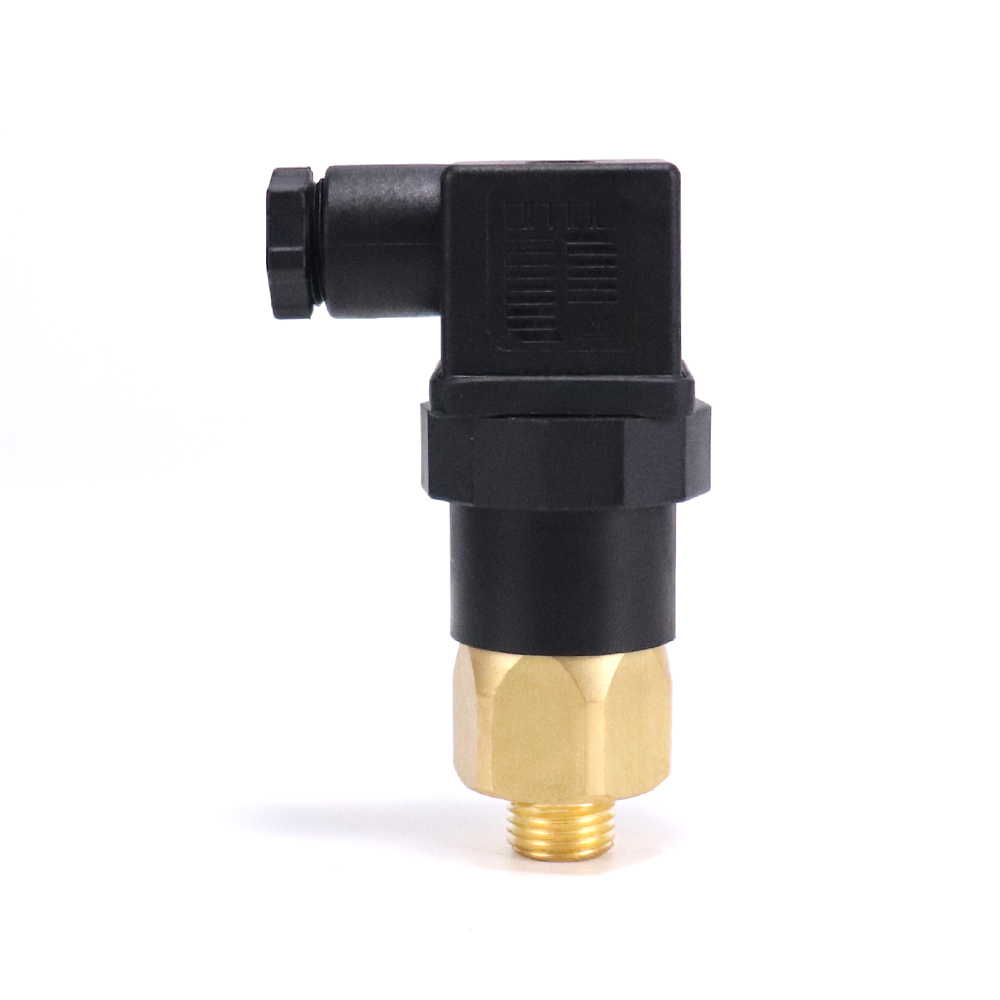

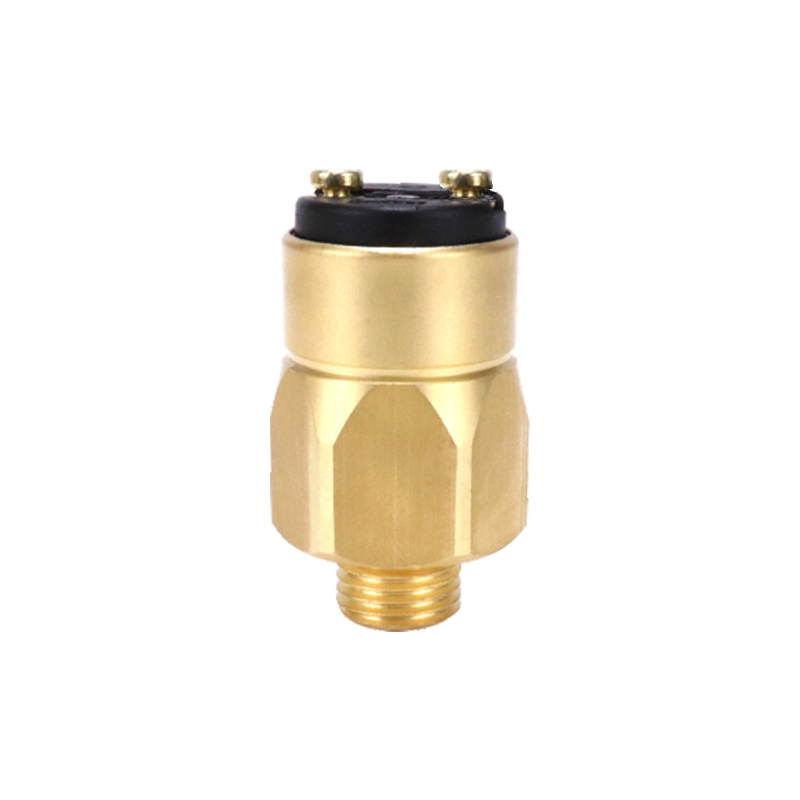

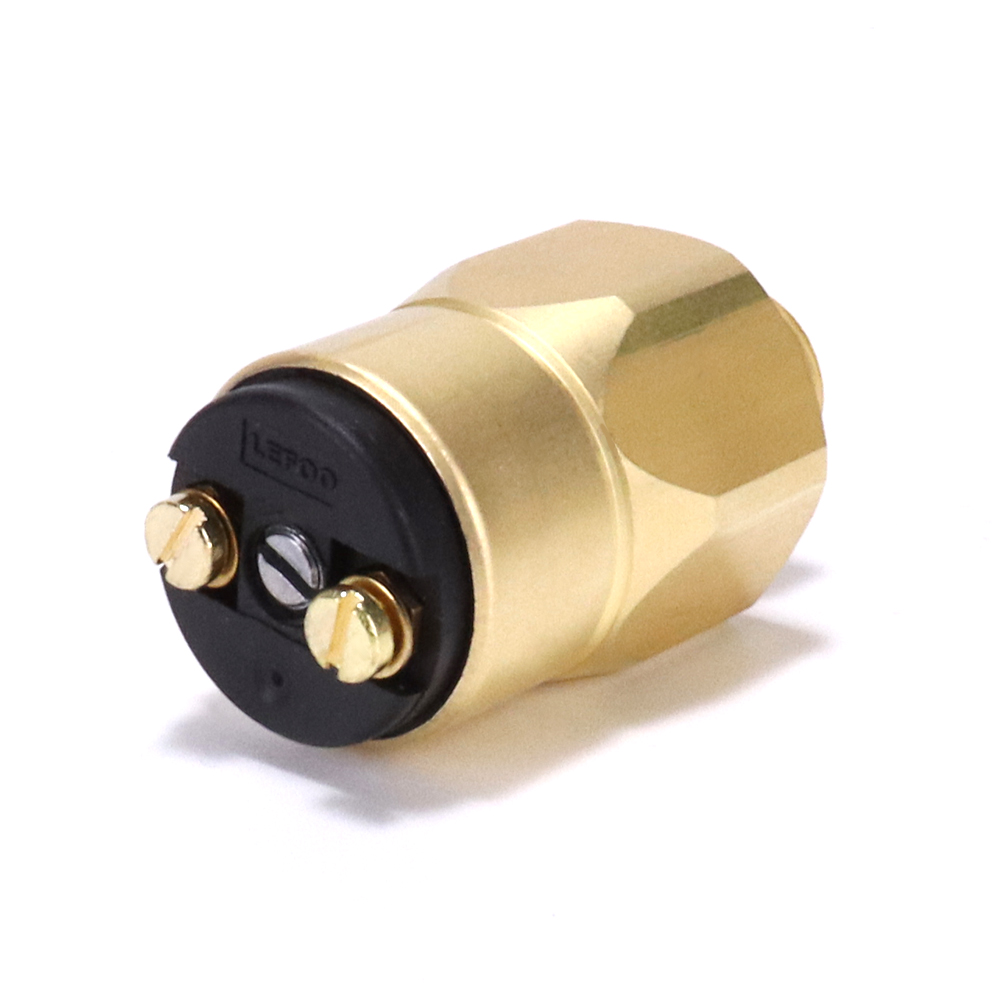

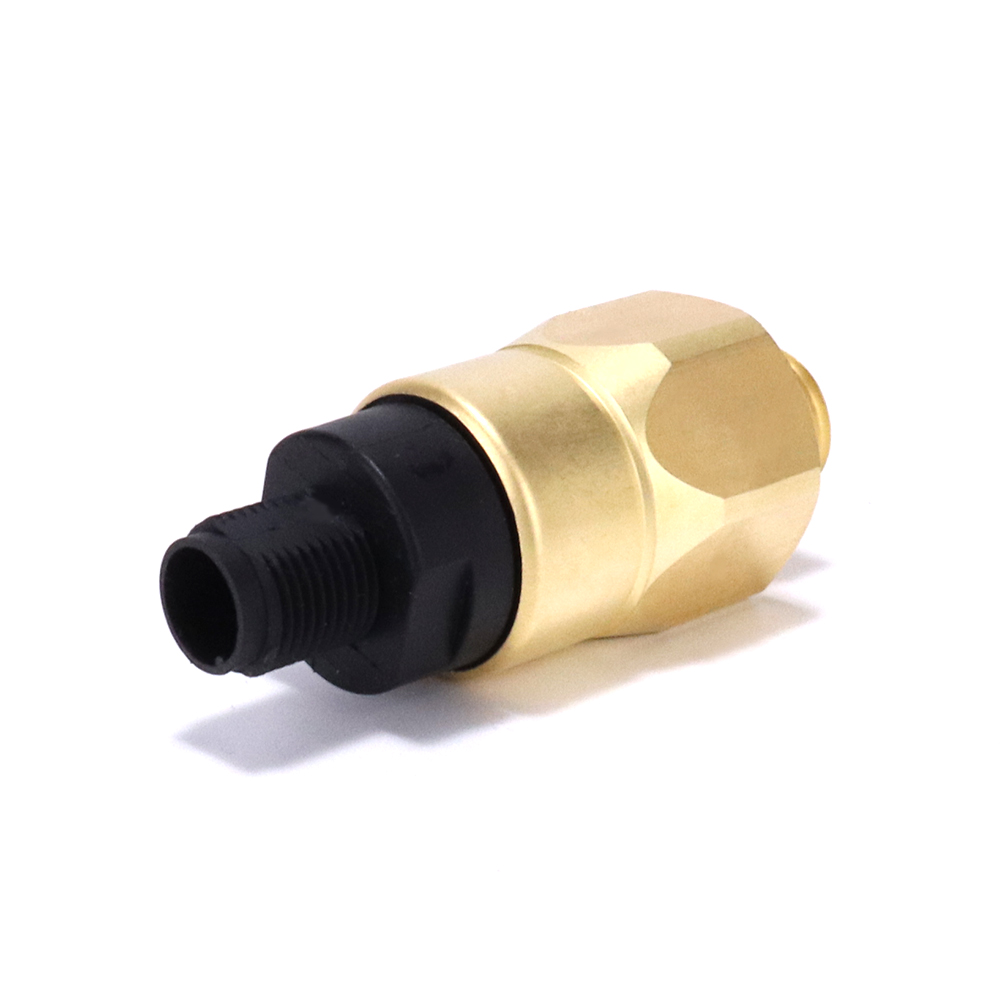

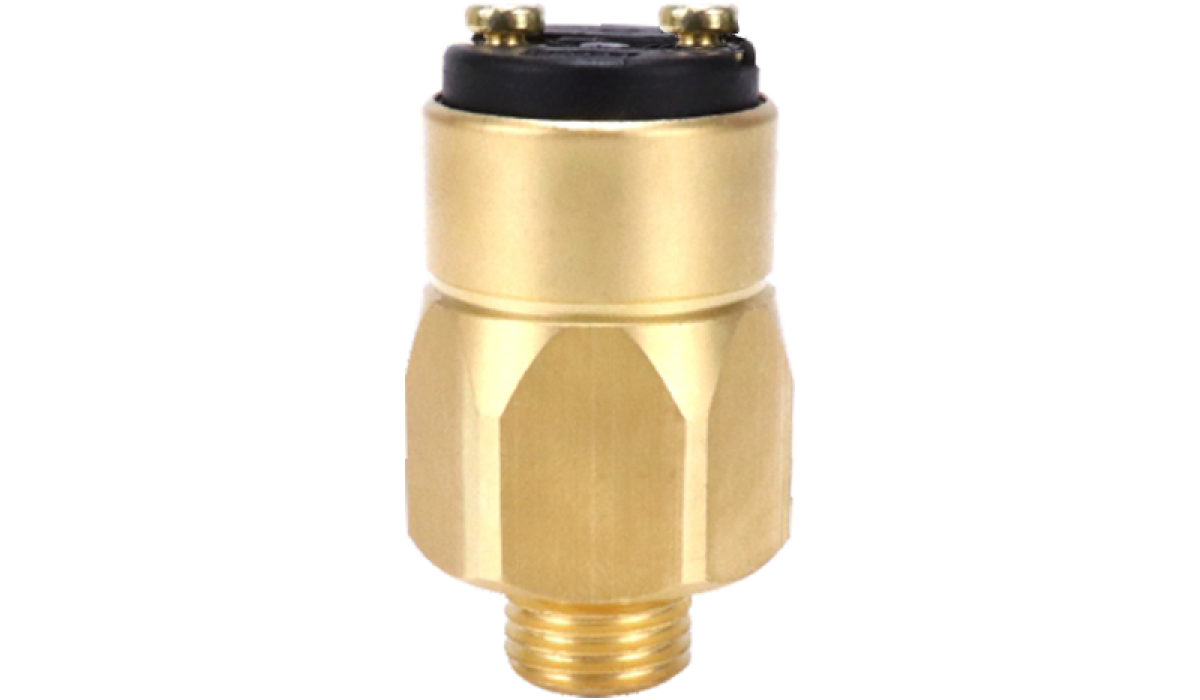

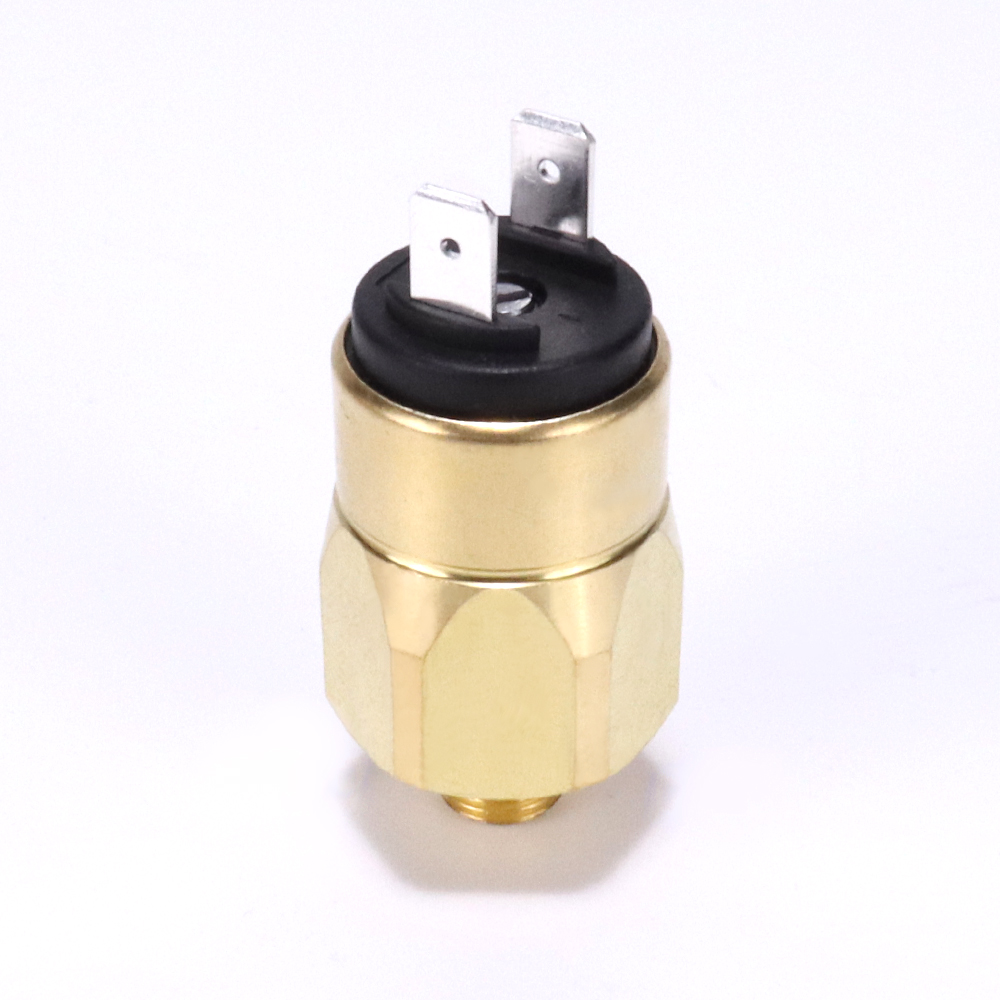

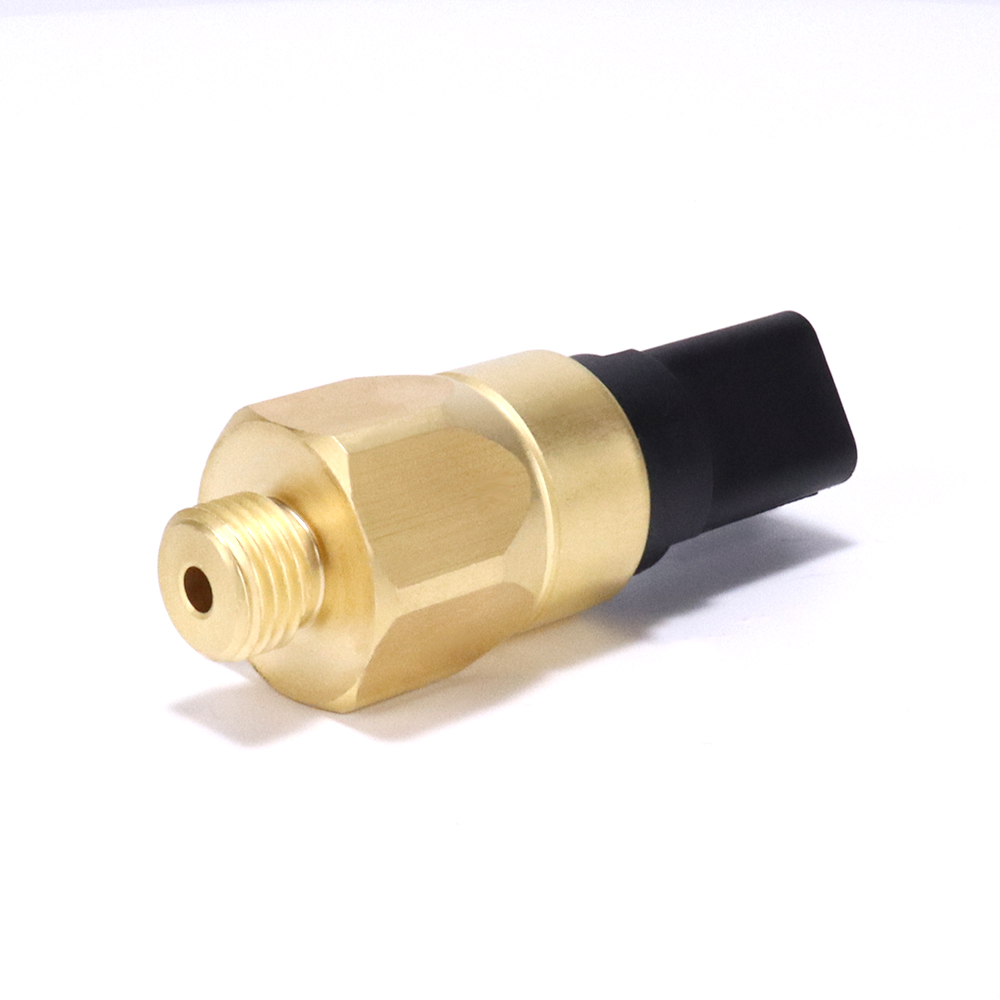

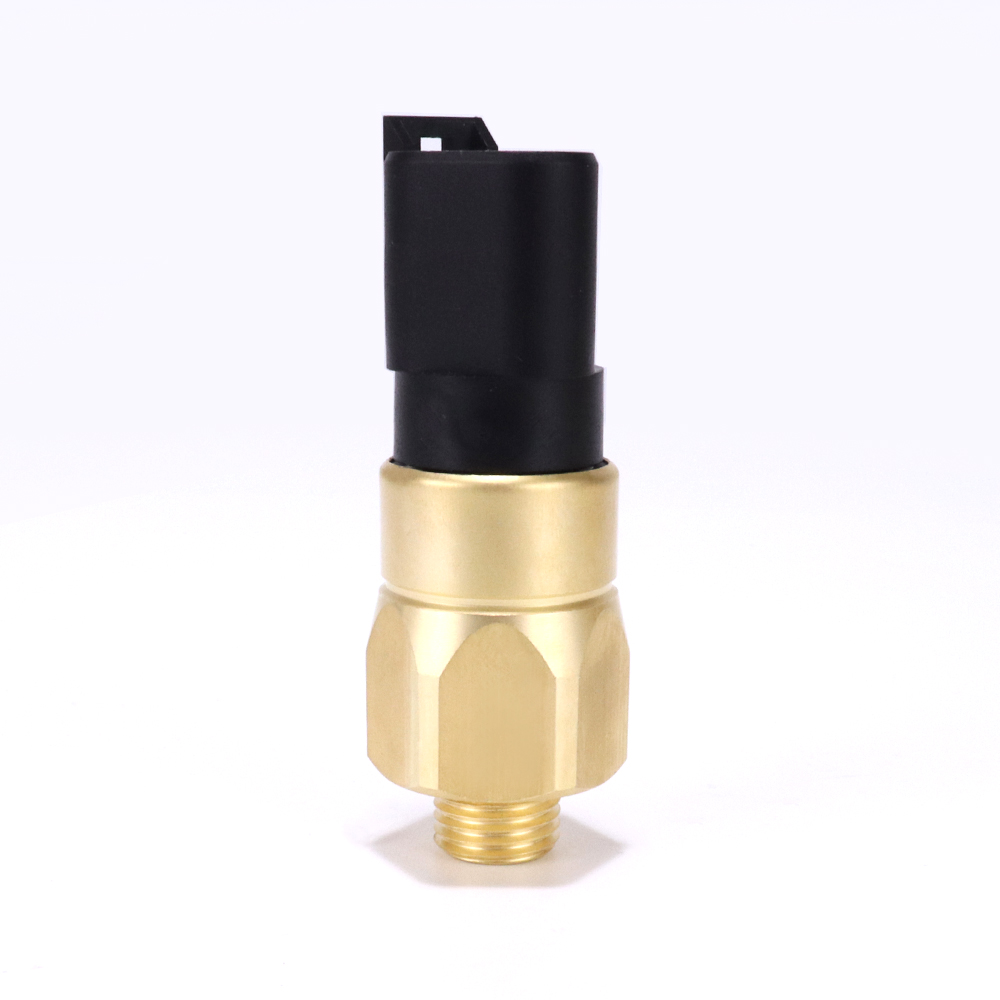

In the industrial and automotive fields , a certain pressure value is usually set for the equipment. When the pressure reaches this value, the system will send an electronic signal to start the mechanical equipment Which triggers a warning (such as a leak of equipment , an alarm , etc. ). This is Diaphragm type pressure switch. The max pressure can not be exceeded to 300bar, SPDT.
Specification
*Size chart and Selection chart are in the PDF file below, you can download it freely or click the "request a contact" on the right for more details.
Body Material | Zinc plated steel/Stainless steel/brass |
Contact | Silver cadmium alloy/gold plated is available |
Max Voltage | 42V/ MAX100VAC |
Max Current | 4A |
Working Temperature Range | -40°C~-+100°C(Different Diaphragm) |
Mechanic Life Endurance | 1,000,000 times |
Electric Life Endurance | 100,000 times |
Pollution Situation | Normal |
Protection level | IP00(Terminal 1-2), IP67(Terminal 3-8), IP65(Terminal 9) |
Upper cover | IP54(Termial 1-2) |
Side cover | IP55(Termial 1-2) |
Applicable Rule | EN 60730-1 |
Max Working Pressure | Zinc plated steel/Stainless steel: 160bar Brass: 40bar |
Burst Pressure | Zinc plated steel/Stainless steel: 300bar Brass: 80bar |
Weight | ~85gr |
