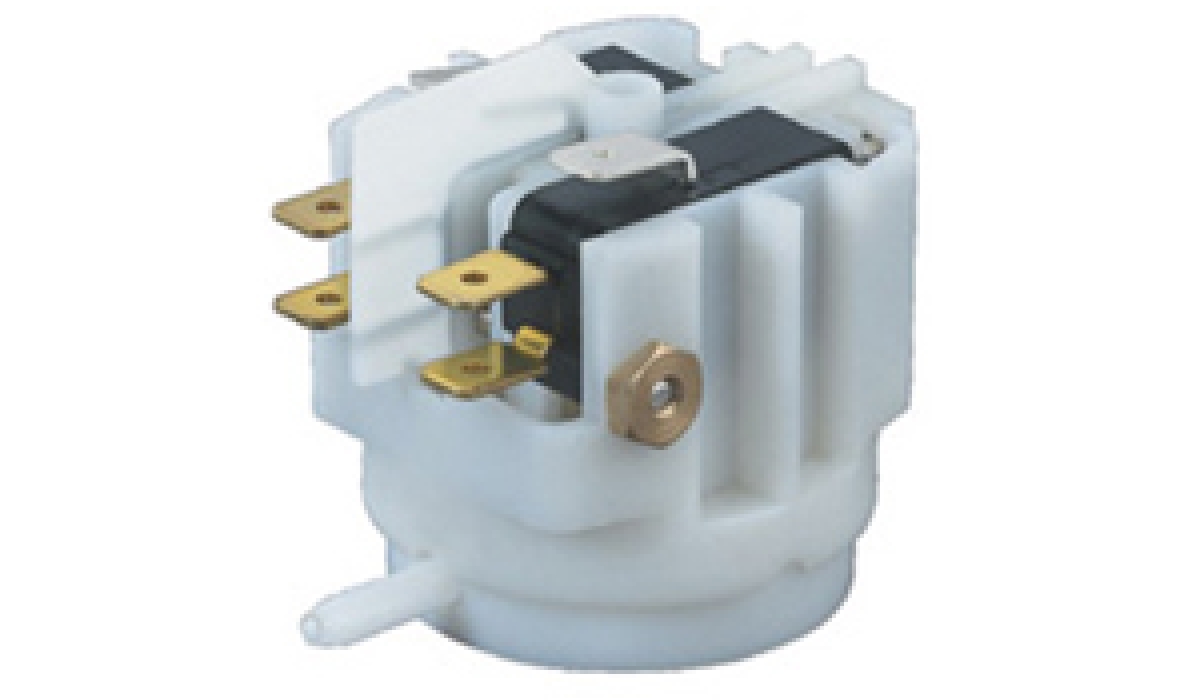

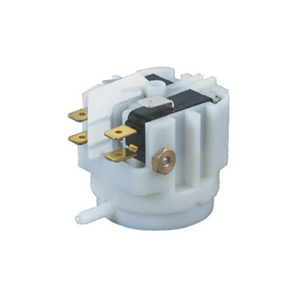

LF40-02P switch utilizes two high-quality miniature snap-action switches with higher current capacity, SPST or SPDT contact form and switches dead bands (also referred to as mechanical differential or hysteresis). The switch is diaphragm operated. Diaphragm material can be selected according to the operating medium, temperature range, and other parameters.
LF40-02P pressure switch can control the system pressure in a steady range by adjusting the operating pressure and the differential pressure of the two snap-action switches.
| Model | LF40-02P |
| Medium | Non hazardous gas |
| Operating PressureRange | 20-800 mbar |
| Proof Pressure | 1 Bar |
| OperatingTemperatureRange | -10°C to +85°C |
| Contact Arrangement | SPST or SPDT |
| Electrical Rating | 25Amps@240VAC,2HP/1HP@120VAC 21Amps@240VAC,2HP/1HP@120VAC 5Amps@240VAC |
| Terminals | 6.35 or 4.88 mm male Q.C. |
| Connection | Inlet 4.0mm for tube connection (Option: 1/8 NPT or other fittings are available) |
Conversion: 1 PSI=68.95 mbar, 1 Bar=100 kPa=1000 mbar
