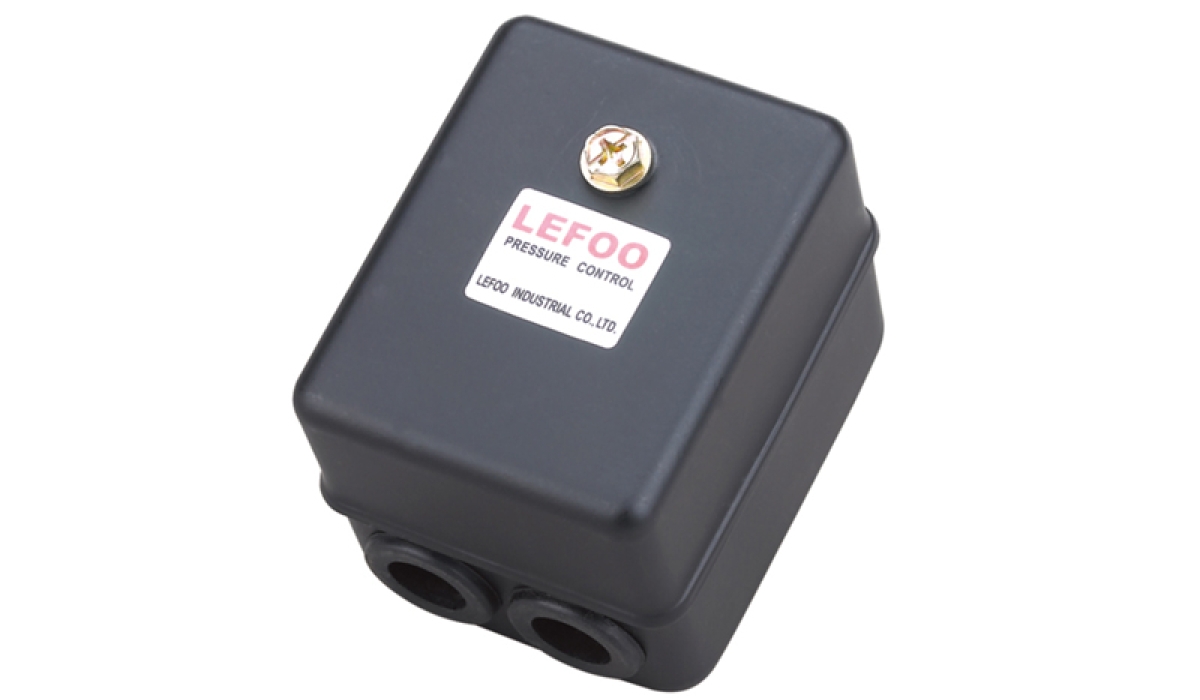

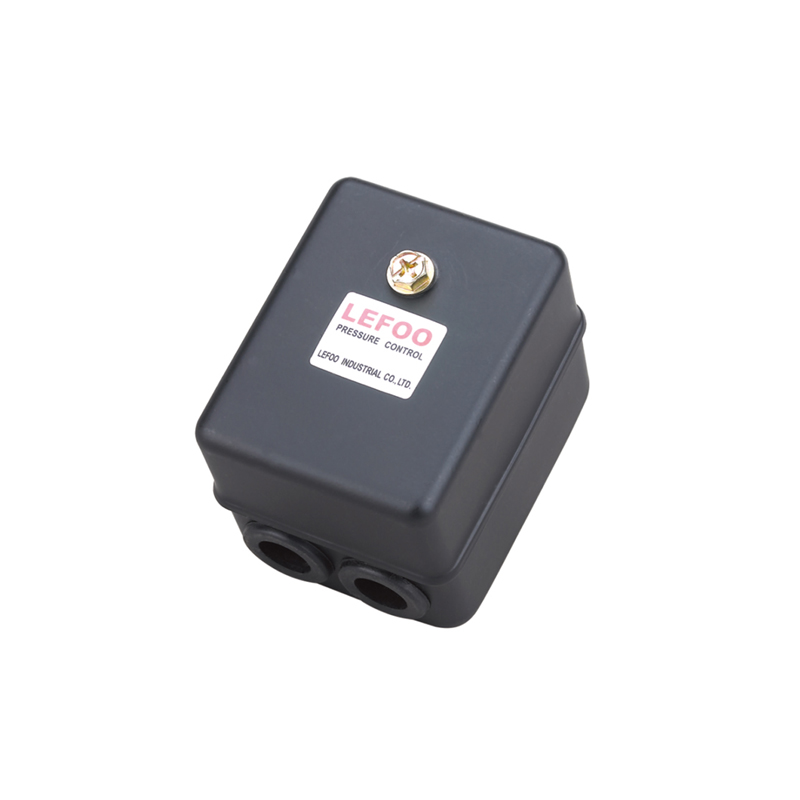

The rugged LF17 pressure switch is designed for the demanding requirements of lager, heavy duty commercial water pump system.
Visible Contact
No Drift Pressure Setting
Captive Cover nut
Ample Wiring Room
2 Ground Screw
Easy to Adjust
Pulsation Dampener Standard
5HP Heavy Duty Rating
250 PSI Max
| MODEL | Min ON (Cut-In)PSI | Max Off (Cut-Out) PSI | Differential | Factory Setting PSI | Electrical Rating | Pipe Fittings | Contact Arrangement | |
| 1 Phase(2 Pole) | 3 Phase(2 Pole) | |||||||
| LF17-W | 40 | 250 | 25-60 | 145-175 | 2HP@120V;3HP@240V | 5HP@240V;5HP@460V | 1/4", 3/8" Male or Female NPT, G | NC |
| LF17-WS | 15 | 60 | 7-15 | 30-40 | 2HP@120V;3HP@240V | 5HP@240V;5HP@460V | 1/4", 3/8" Male or Female NPT, G | NC |
