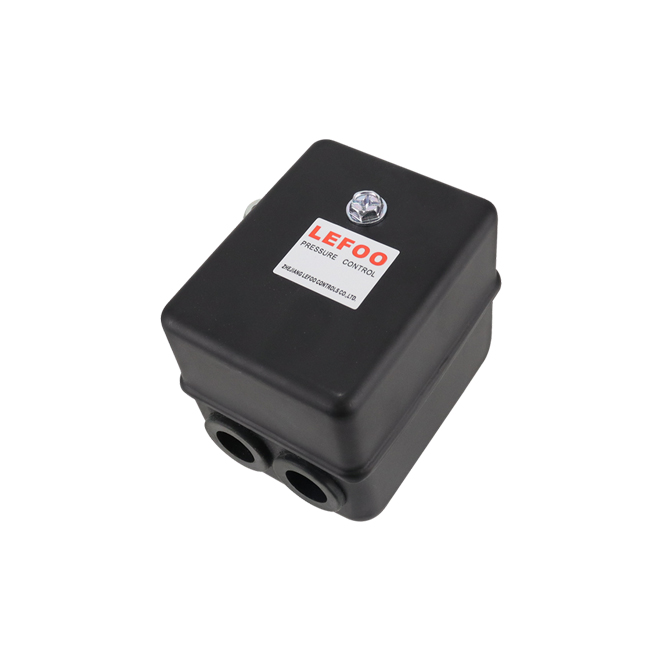

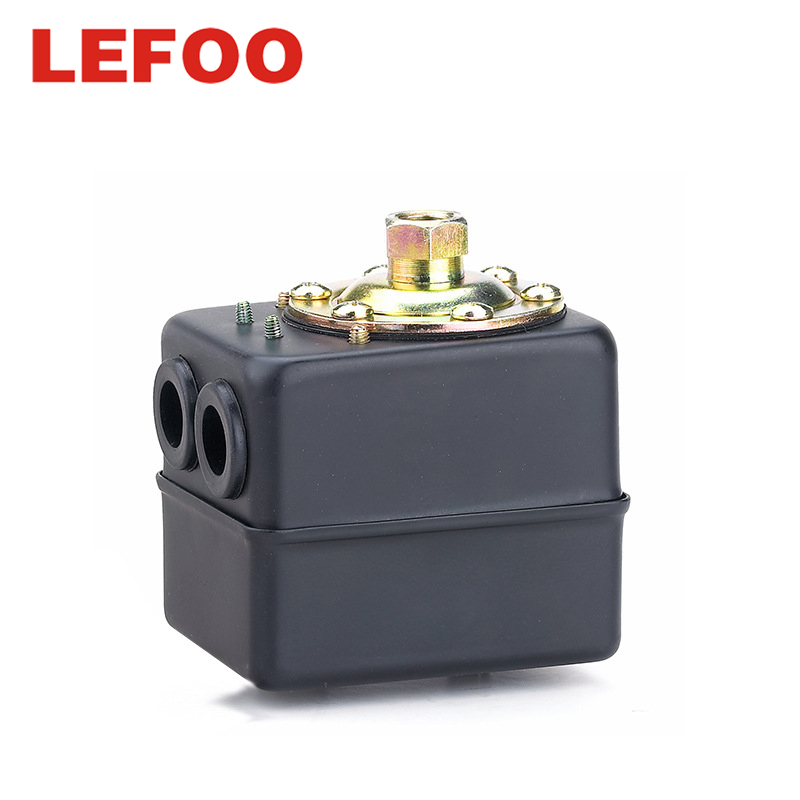

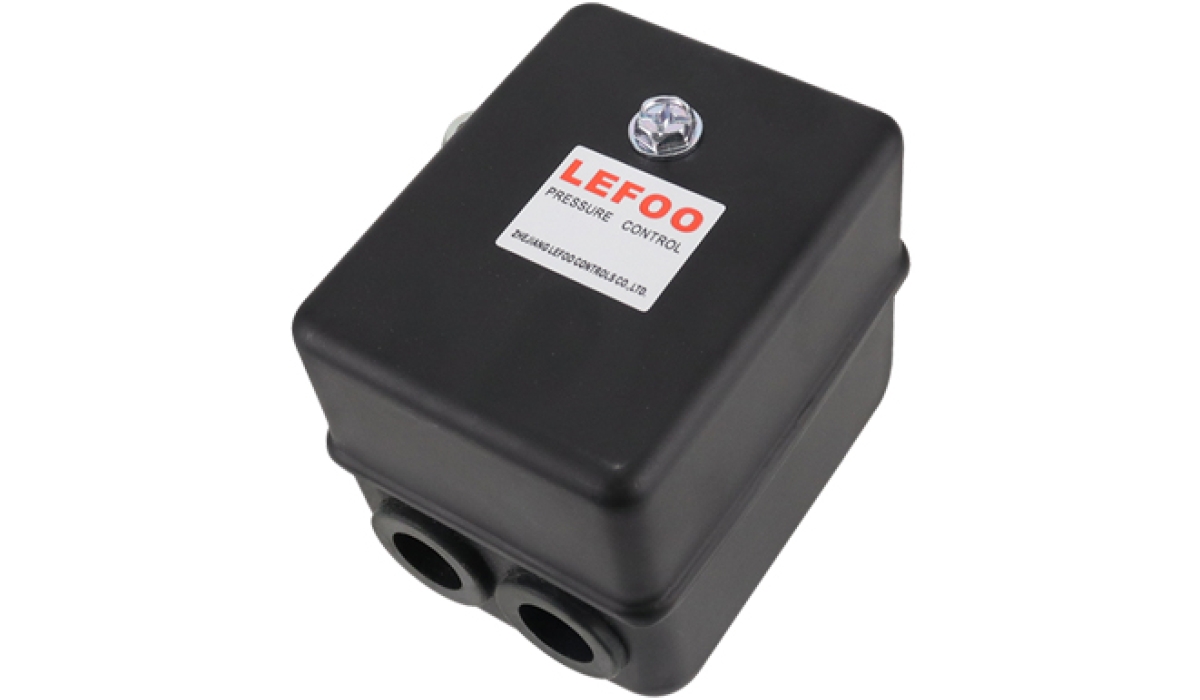

The rugged LF17 pressure switch is designed for the demanding requirements of lager, heavy duty commercial air compressors (up to 250 psi). The sturdy painted steel case and cover resists the harsh conditions encountered in industrial applications. This style is also available with an unloader valve to prevent the compressor from starting under load.
Sturdy Stamped Steel Case & Cover
Visible Contact
No Drift Pressure Setting
Captive Cover nut
Ample Wiring Room
2 Ground Screw
Easy to Adjust

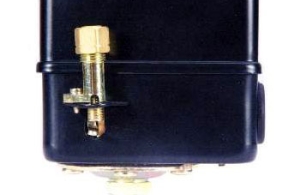

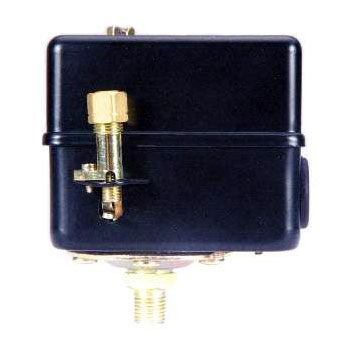

Automatic Unloader Valve Available
?Pulsation Dampener Standard
5HP Heavy Duty Rating
250 PSI Max
| MODEL | Min ON (Cut-In)PSI | Max Off (Cut-Out) PSI | Differential PSI | Factory Setting PSI | Electrical Rating | Pipe Fittings | Contact Arrangement | |
| 120VAC | 240VAC | |||||||
| LF17 | 40 | 250 | 25-60 | 145-175 | 24A | 12A | 1/4", 3/8" Male or Female NPT | NC |
| LF17-S | 15 | 60 | 7-15 | 30-40 | 24A | 12A | 1/4", 3/8" Male or Female NPT | NC |
Conversion: 1Kgf/cm2 = 14.2PSI , 1Bar = 14.5PSI
Approval: UL, CSA
