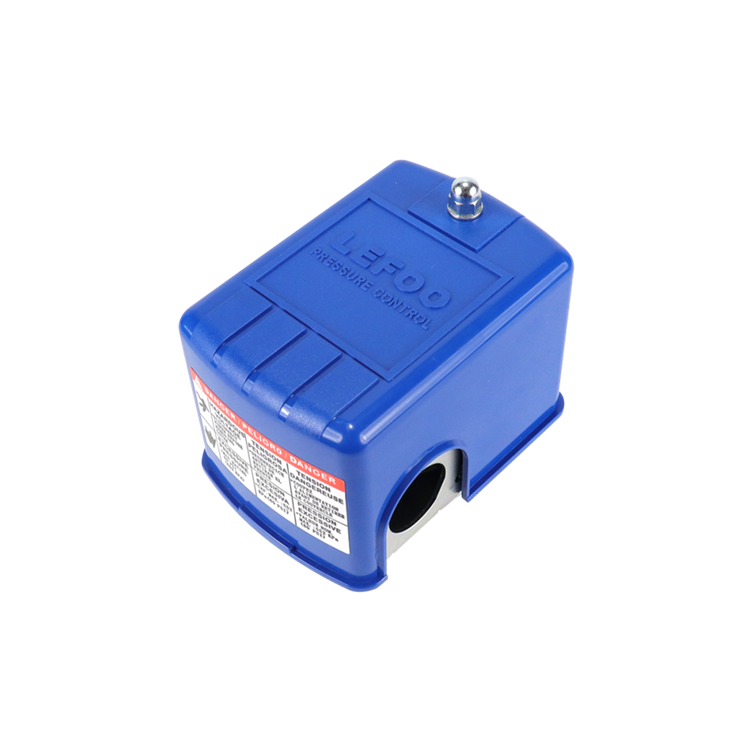

LF16 Water Pressure Switches

LF16 pressure switches provide time tested, reliable control for automatic water systems. The switch is universally acceptable for use as original equipment on water well pumps or pumping systems.

MODEL	Min ON (Cut-In)PSI	Max Off (Cut-Out) PSI	Differential PSI	Factory Setting PSI	Electrical Rating			Pipe Fittings	Contact Arrangement
MODEL	Min ON (Cut-In)PSI	Max Off (Cut-Out) PSI	Differential PSI	Factory Setting PSI	120VAC1-phase	240VAC 1-phase	240VAC 3-phase	Pipe Fittings	Contact Arrangement
LF16	20	80	15-30	20-40	2HP	3HP	5HP	1/4" Male or Female NPT	NC
	20	80	15-35	30-50	2HP	3HP	5HP	1/4" Male or Female NPT	NC
	20	80	15-35	40-60	2HP	3HP	5HP	1/4" Male or Female NPT	NC

MODEL	Min ON (Cut-In)PSI	Max Off (Cut-Out) PSI	Differential PSI	Factory Setting PSI	Electrical Rating			Pipe Fittings	Contact Arrangement
MODEL	Min ON (Cut-In)PSI	Max Off (Cut-Out) PSI	Differential PSI	Factory Setting PSI	120VAC1-phase	240VAC 1-phase	240VAC 3-phase	Pipe Fittings	Contact Arrangement
LF16-1	20	80	15-30	20-40	1.5HP	2HP	3HP	1/4" Male or Female NPT	NC
	20	80	15-35	30-50	1.5HP	2HP	3HP	1/4" Male or Female NPT	NC
	20	80	15-35	40-60	1.5HP	2HP	3HP	1/4" Male or Female NPT	NC
