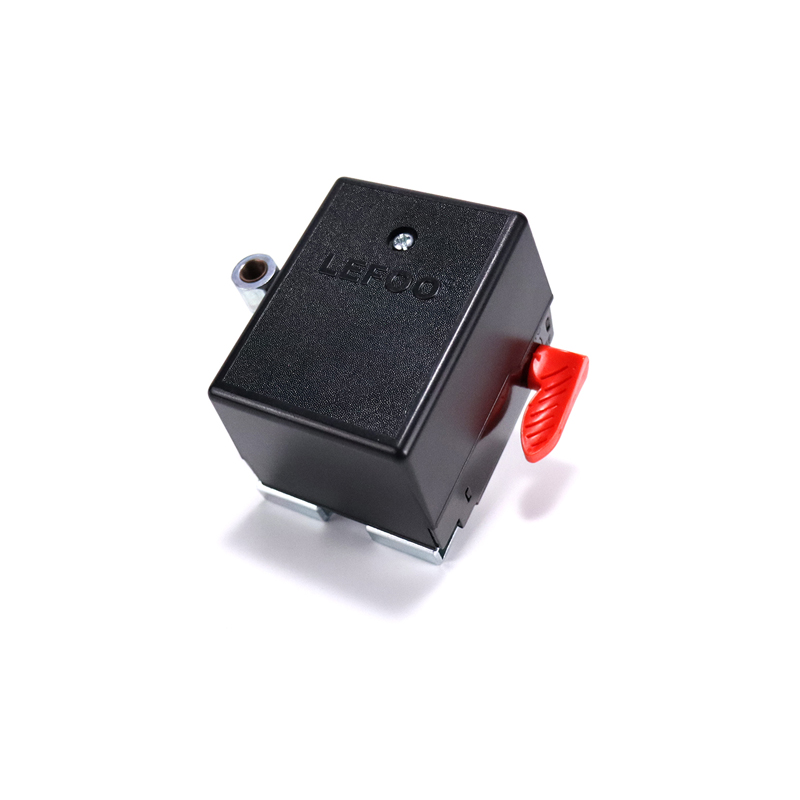

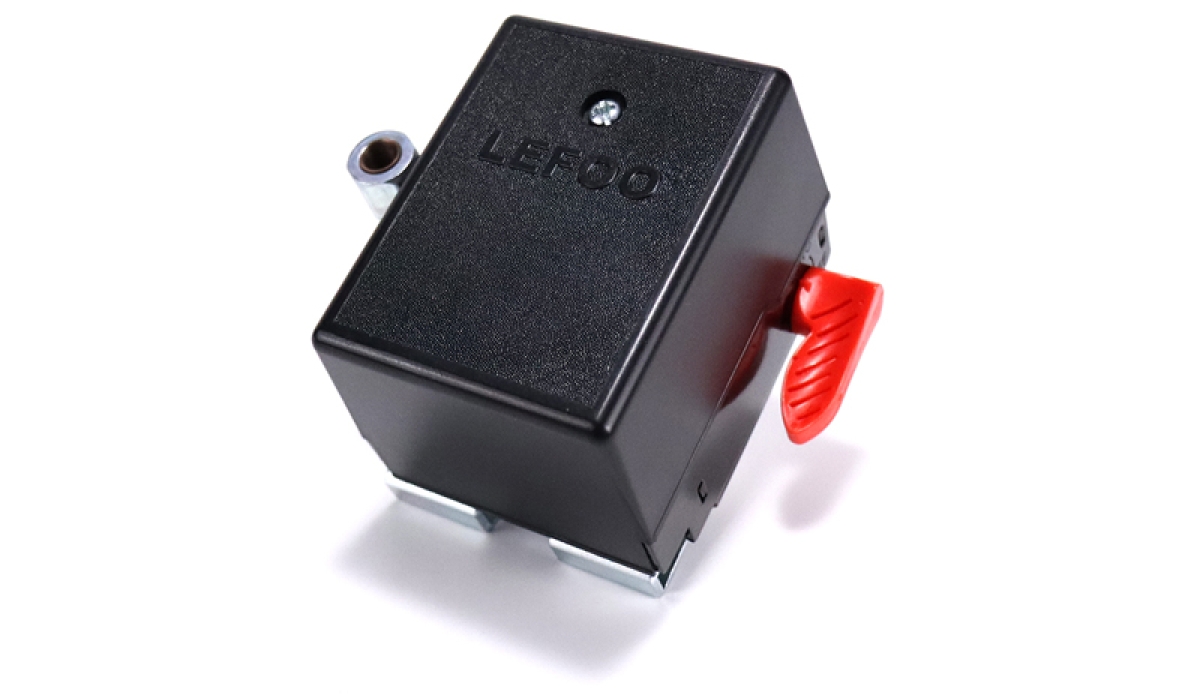

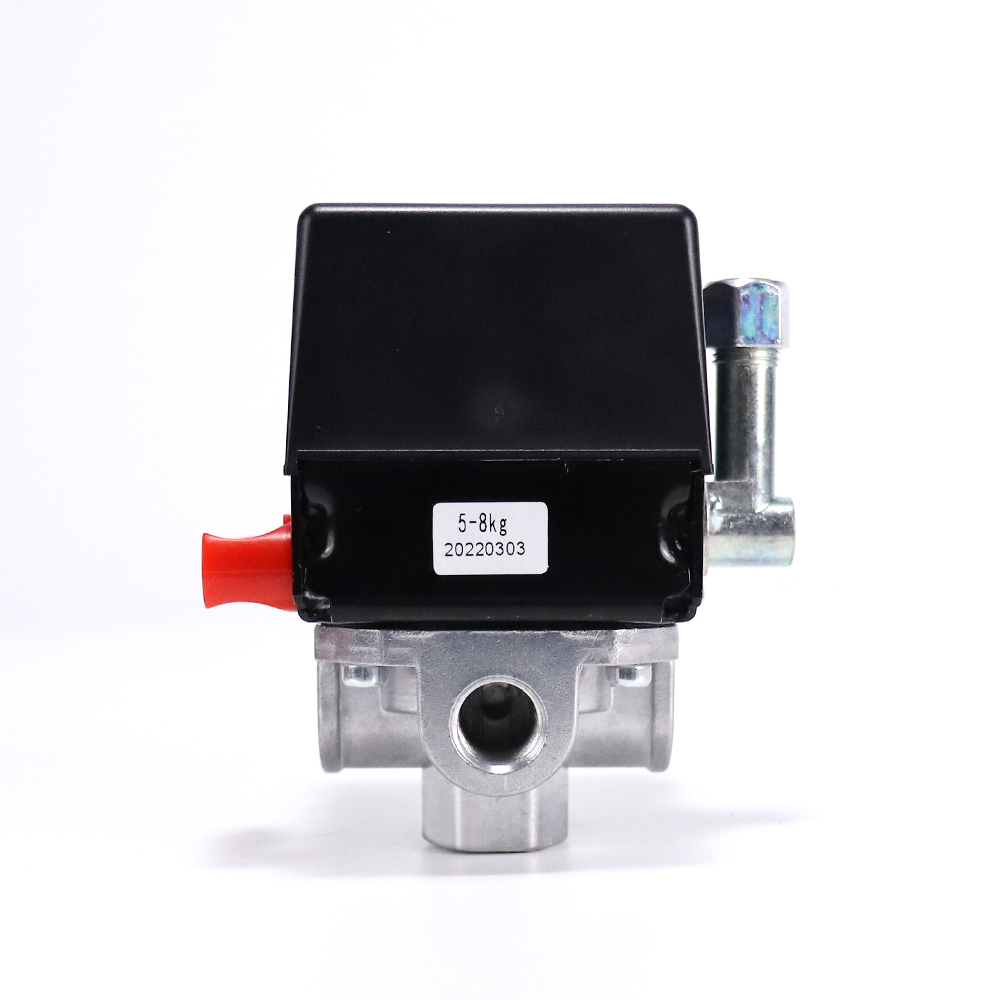

LF15 series air compressor pressure switch

LF15 series pressure switch, which is used to adjust the pressure in the air tank of the air compressor to make it operate between two preset pressure values.

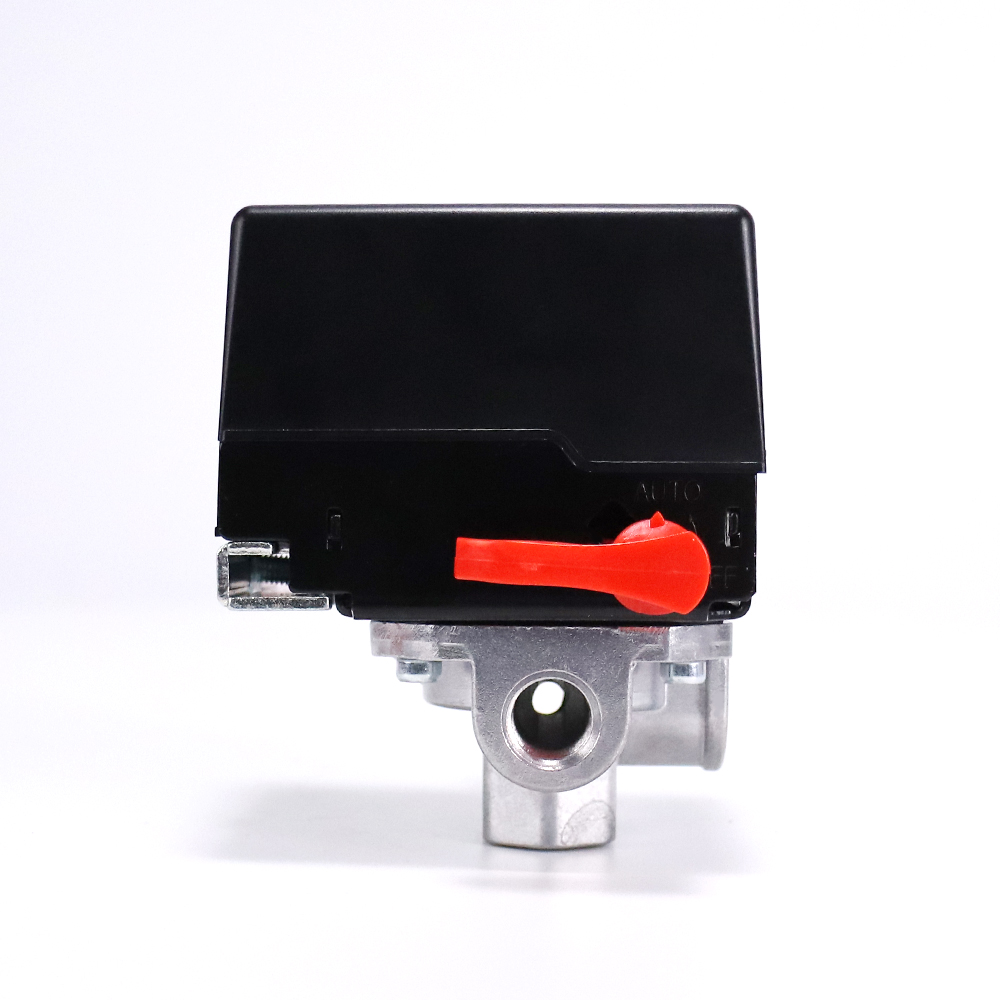

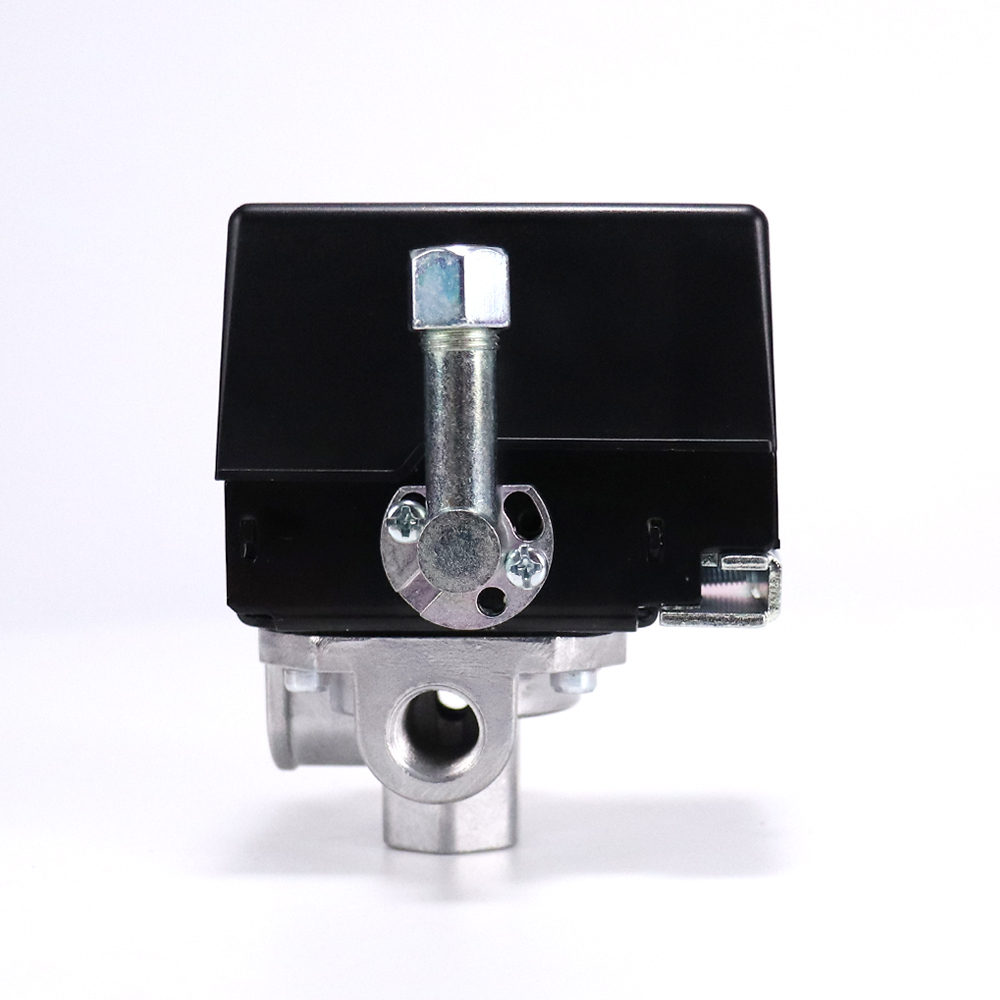

The pressure switch with relief valve can prevent the air compressor from overload starting, and the additional handle can be used to manually cut off the power supply of the compressor. Greater arc extinguishing current

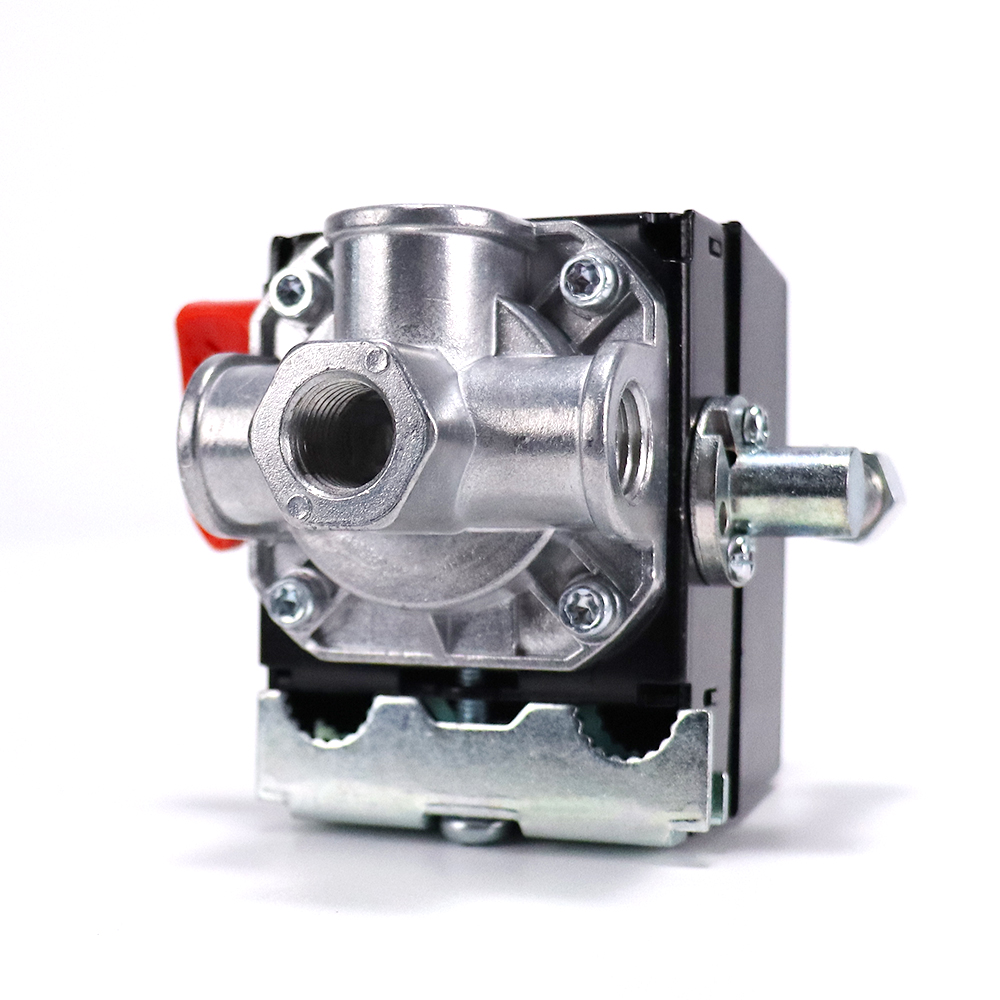

The four-way base interface can make the installation of supporting components such as safety valve and pressure gauge easier.

Technical parameter

model	LF15
medium	Air, non flammable or non hazardous, non corrosive gas
Pressure regulation range	0.3-1.2Mpa
Differential pressure adjustment range	0.15-0.45Mpa
Factory settings	Starting pressure and disconnecting pressure can be set according to customer requirements
Pressure setpoint error	≤ 5% (working pressure value)
Maximum working pressure	1.2Mpa
Rated voltage, current and frequency	120VAC/240VAC?26A/20A?50HZ/60HZ
Contact mode	Normally closed
Interface form	Single way internal thread, single way external thread, double way internal and external thread, four-way internal thread
Interface thread	Npt1/4, R1/4, G1/4 (can be customized)
Unloading valve	None / Yes
Direction of unloading valve	The direction and angle can be selected according to customer requirements
Inner diameter of relief valve	Φ 6.0mm, Φ 6.4mm, Φ 6.5mm (can be customized)
Manual form	No / handle
working temperature	-20°C-80°C
Mechanical life	100000 times
Electrical life	30000 times
Withstand voltage	No breakdown at 2500V for 1 minute
Installation mode	Vertical / horizontal installation
Degree of protection	IP20
