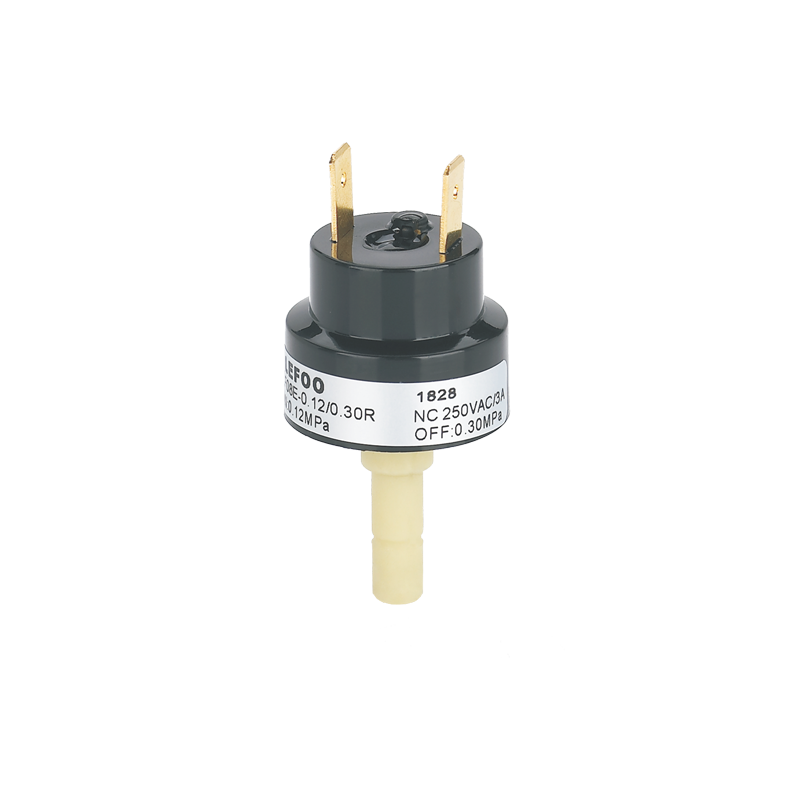

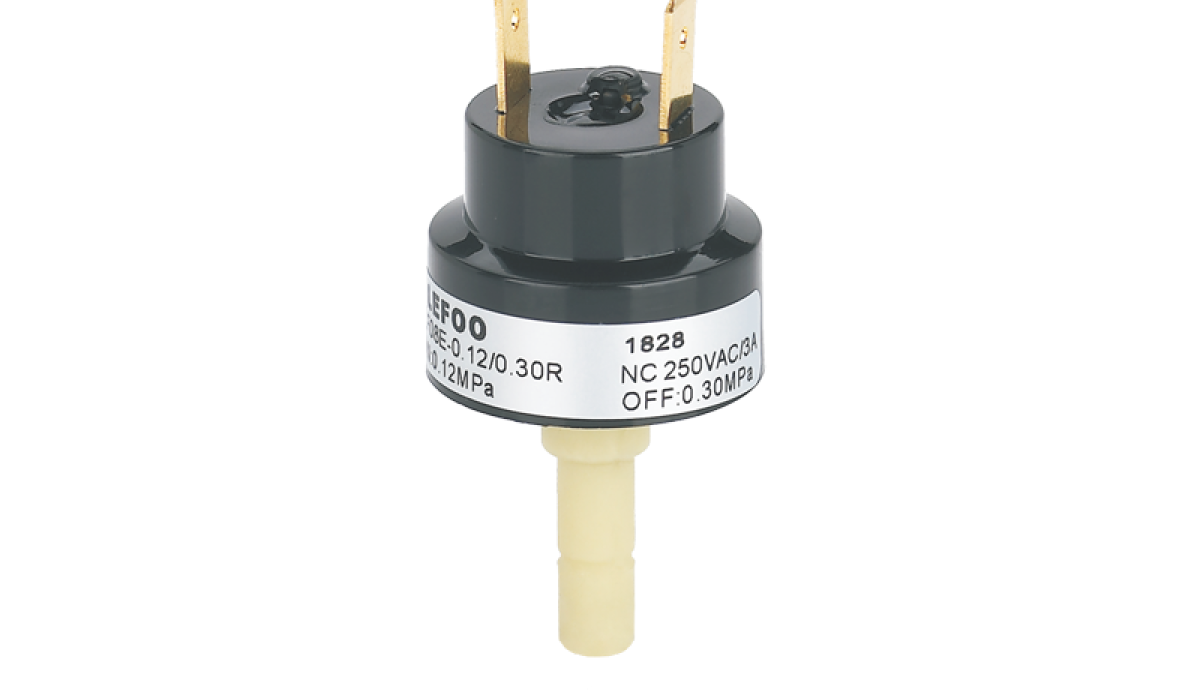

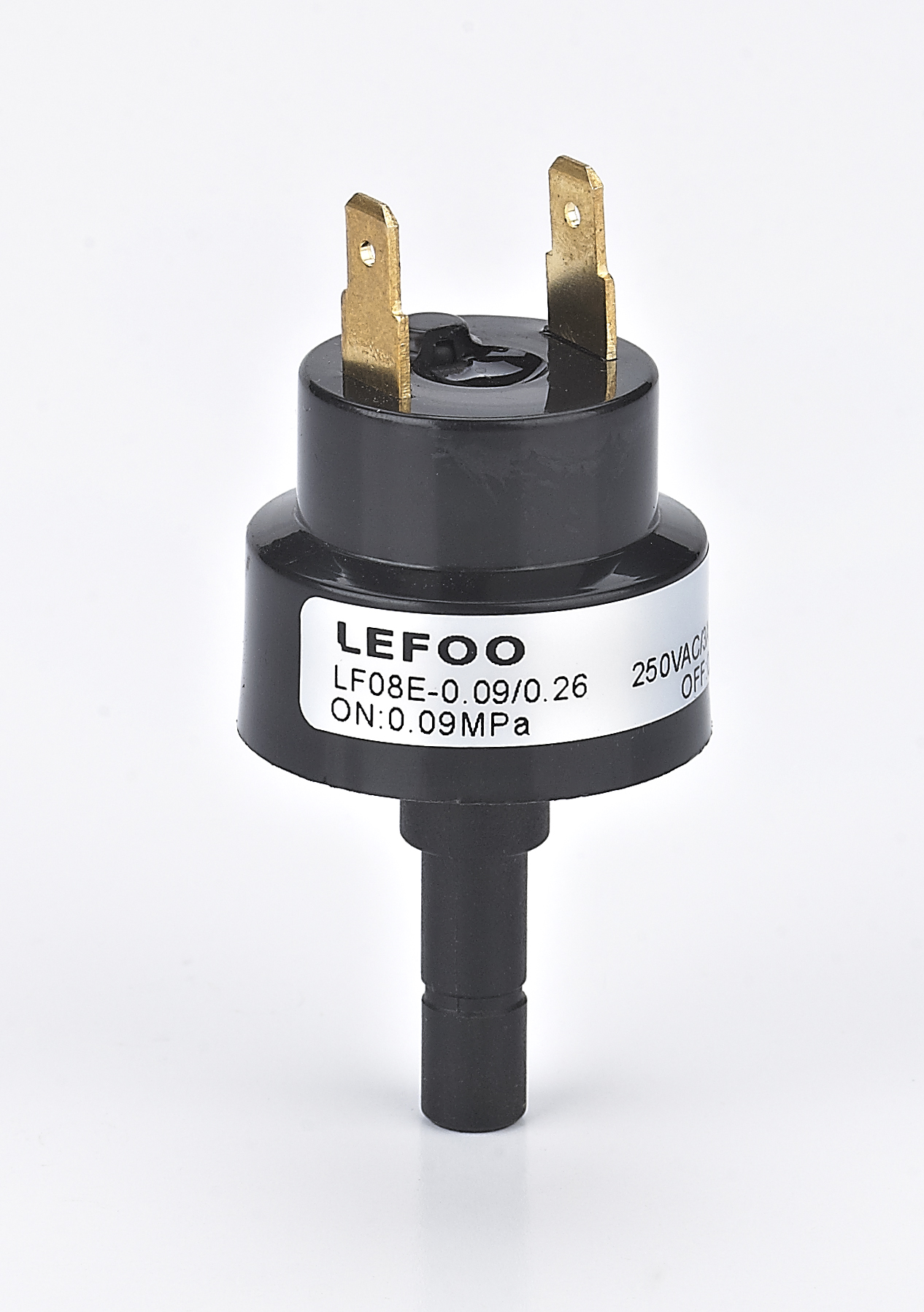

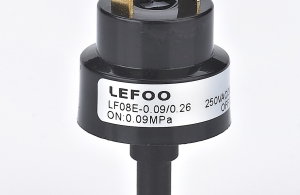

LF08E Pressure Switch for Water Purifier, 0.05~0.35MPa

This product is specially designed for water purifier, which can replace traditional high-low pressure switch. It is more sensitive action and used for wider range of applications.

Specification

Item LF08E
Pressure range 0.05~0.35MPa
Performance One pressure setting/ Two pressure setting
Proof pressure 1.2MPa
Burst pressure 3.2MPa
Terminal 6.3mm or 4.8
Temperature range -20°C~120°C
Circuitry SPST(NC or NO)
Electric rating 250VAC 3A
Media Air, Water

LF08 Small Multi-Purpose Pressure Switch, 0.2~45bar

LF08A High Current Pressure Switch, 0.2~45bar

LF08D Small Multi-Purpose Pressure Switch, 60~250PSI

LF08M Manual Reset Pressure Switch, 0.2~45bar

LF08V Small Vacuum Pressure Switch, -0.5~-0.8bar
