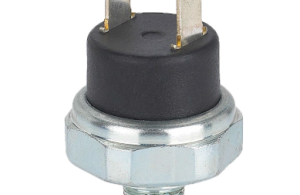

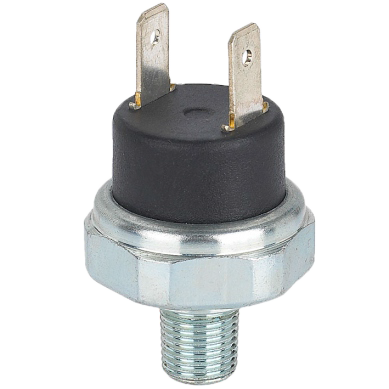

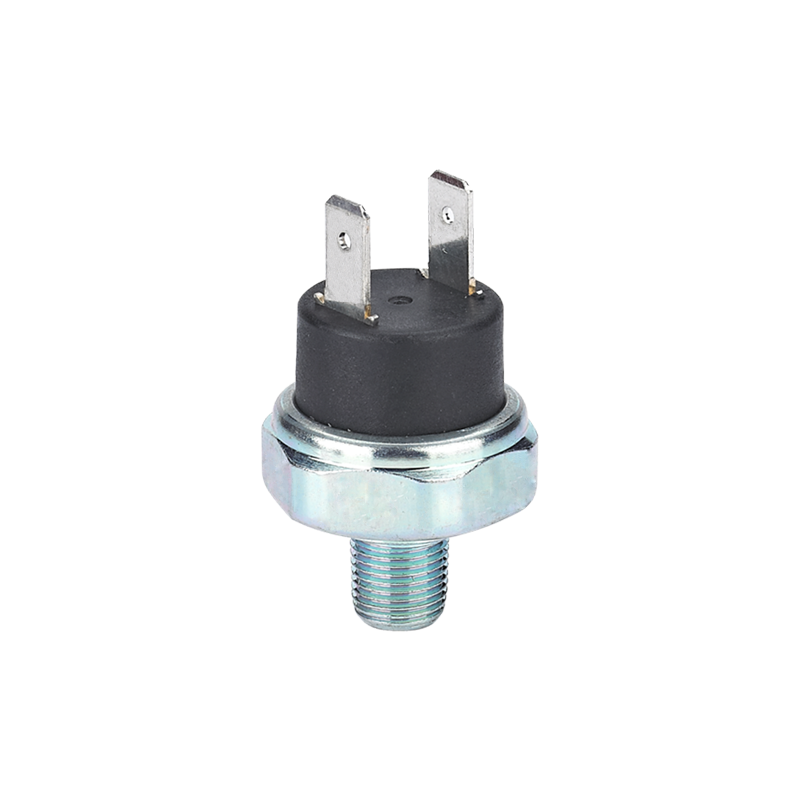

LF08D Small Multi-Purpose Pressure Switch, 60~250PSI

LF08D series pressure switch is a switch with automatic reset design. With a wide pressure setting range, it can be applied to different requirements. It is used for air, water pressure control, electrical refrigeration equipment, indoor air conditioners or internal circuits of indoor cooling devices, domestic cooling systems, and internal circuits of longdistance outdoor condensing devices. Typical applications: High-pressure shutdown switch / airconditioning / freezing equipment.

Specification

Media

Air, Water, motor lils

Pressure Range

60~250PSI

Proof Pressure

20~50PSI

Tolerance

±5PSI

Proof Pressure

±5PSI

Burst Pressure

800psi

Operating Temperature Range

-20~65?

Switch Type

SPST(NC)

Electric Rating

220VAC,15FLA

Base material

Q235 Environmental protection zinc plating

Endurance

100000

Connection

Please see the selection table (customizable)

.
