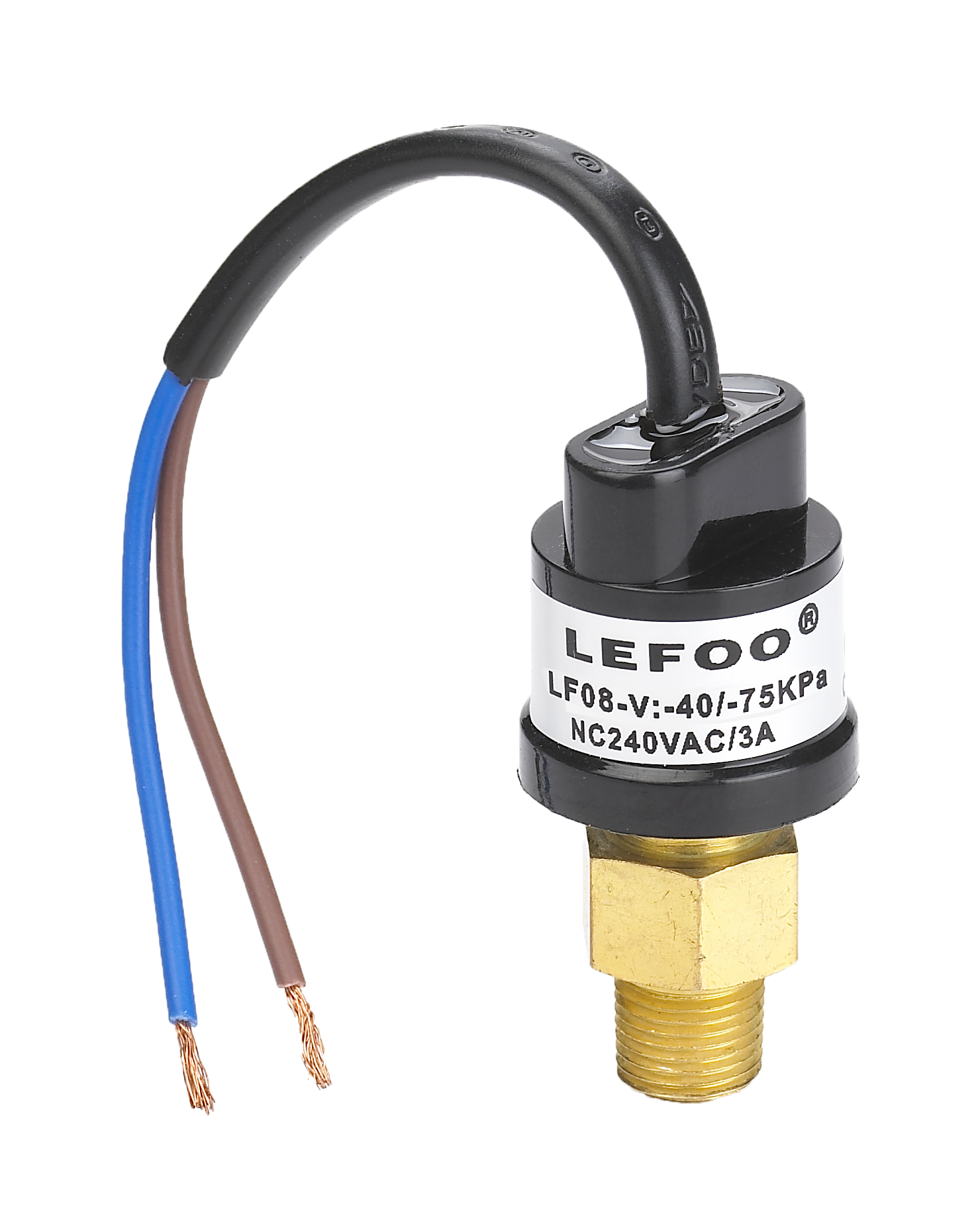

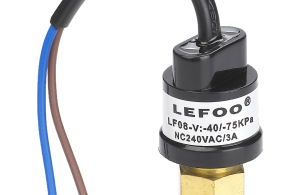

LF08-V vacuum switch is automatic reset pressure switch designed, there is dead band between close and open pressure setpoint.
It can be used for vacuum pressure controlling for vacuum tank, refrigerating equipment or room cooler units or remote outdoor condensing units for domestic cooling systems.
Typical Applications: safety controls / air conditioning / refrigeration / vacuum tank pressure control/ braking system of automobile
| Series No. | LF08-V |
| Medium | Air, Water, motor oils, transmission oils, Hydrocarbon Media, Refrigeration fluid |
| Pressure SetPoint | -0.85 Bar to 1.5 Bar |
| Proof Pressure | 10 Bar |
| Burst Pressure | 100 Bar |
| Operating Temperature Range | -30° C to ~ 80° C |
| Switch Type | SPST- NC, SPST-NO |
| Electric Rating | 120/240VAC, 3A 5~28VDC, 6A |
| Dielectric Strength | 750 Vrms across open contacts 1550 Vrms terminals to fitting |
| Terminals | 1/4” blade, wire lead |
| Life at Related Load | 100,000 cycles |
| Connection | 1/8NPT, G1/8", 1/4NPT, G1/4", 7/16-20 UNF, etc. |
| Options | various connector thread sizes; wire leads (potted & sealed); protective cover. |
