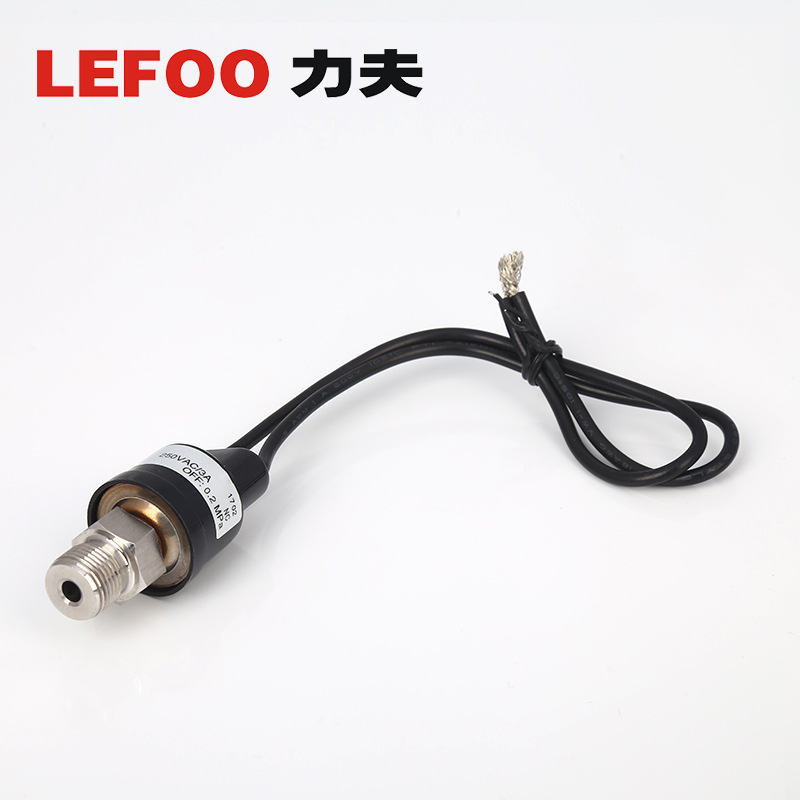

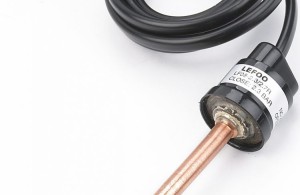

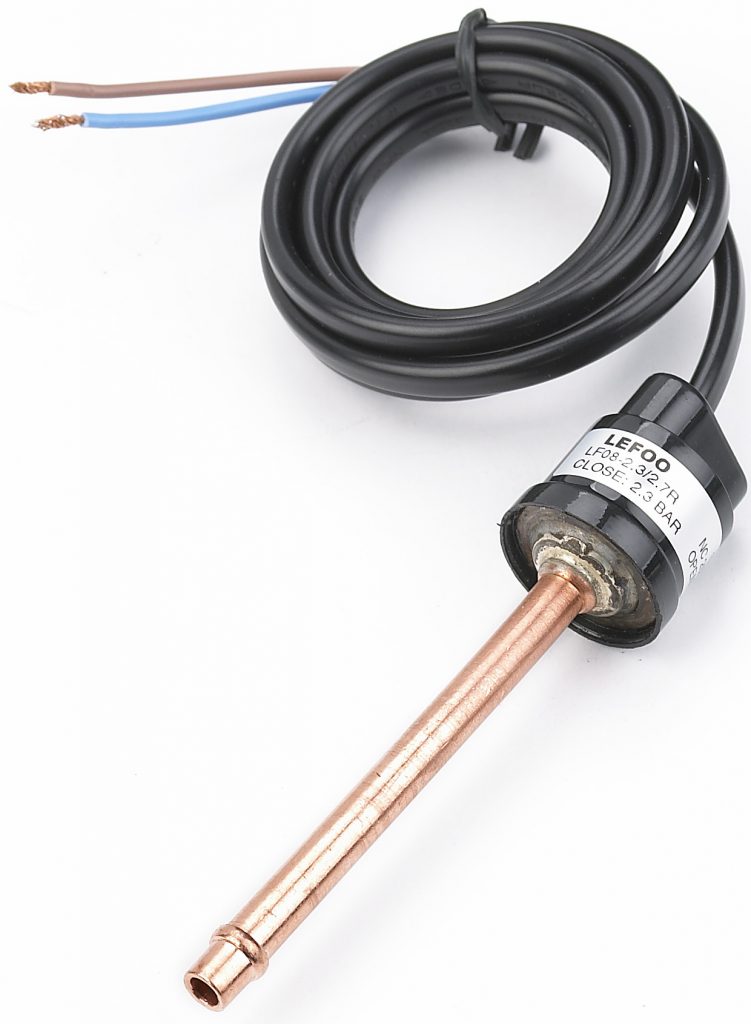

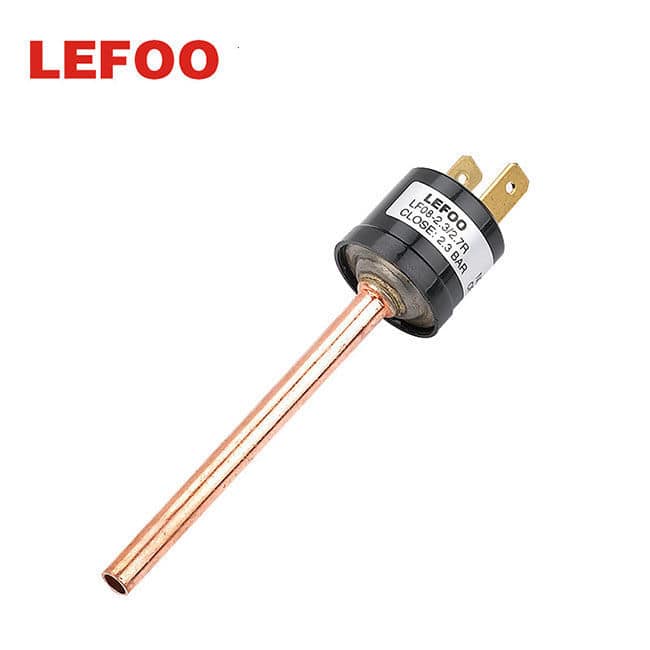

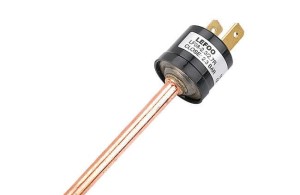

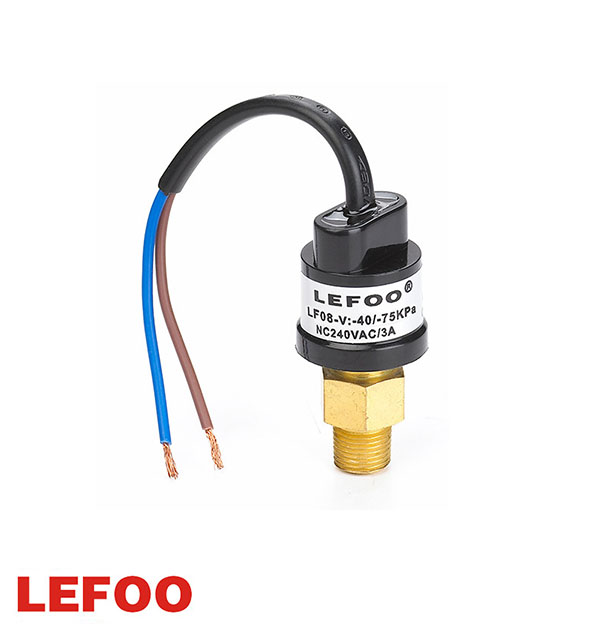

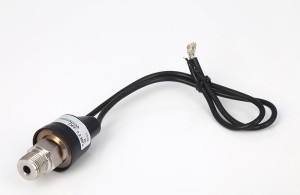

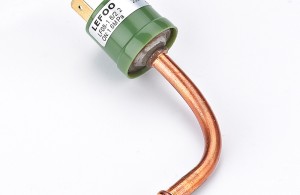

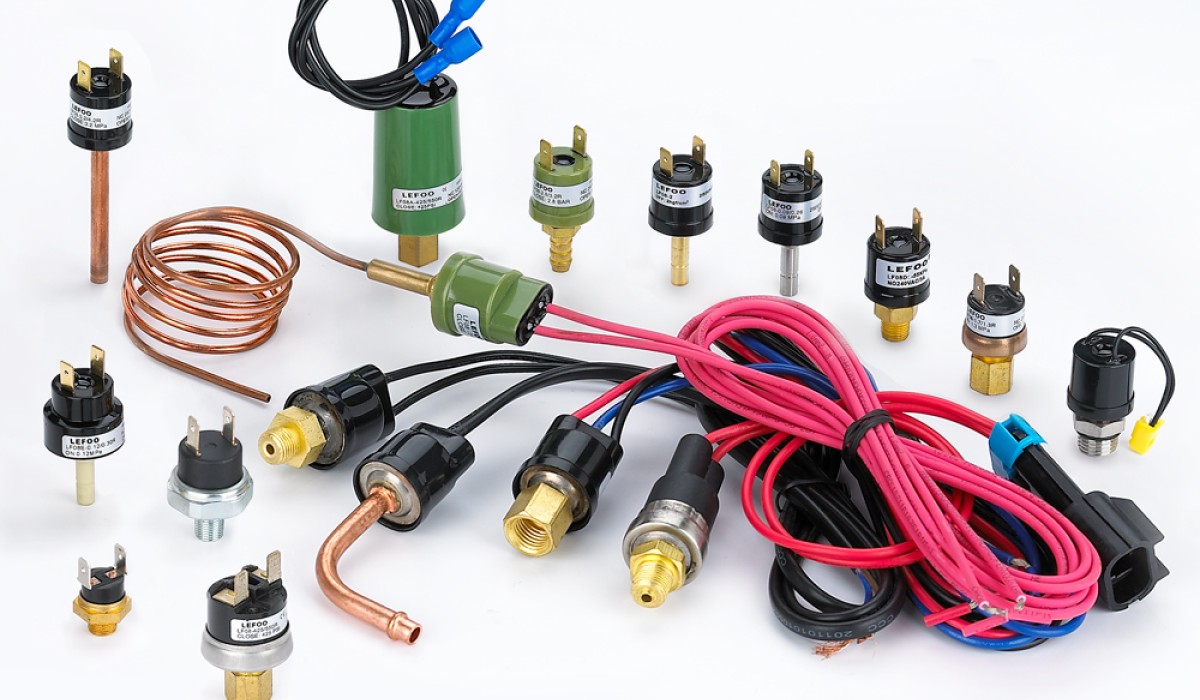

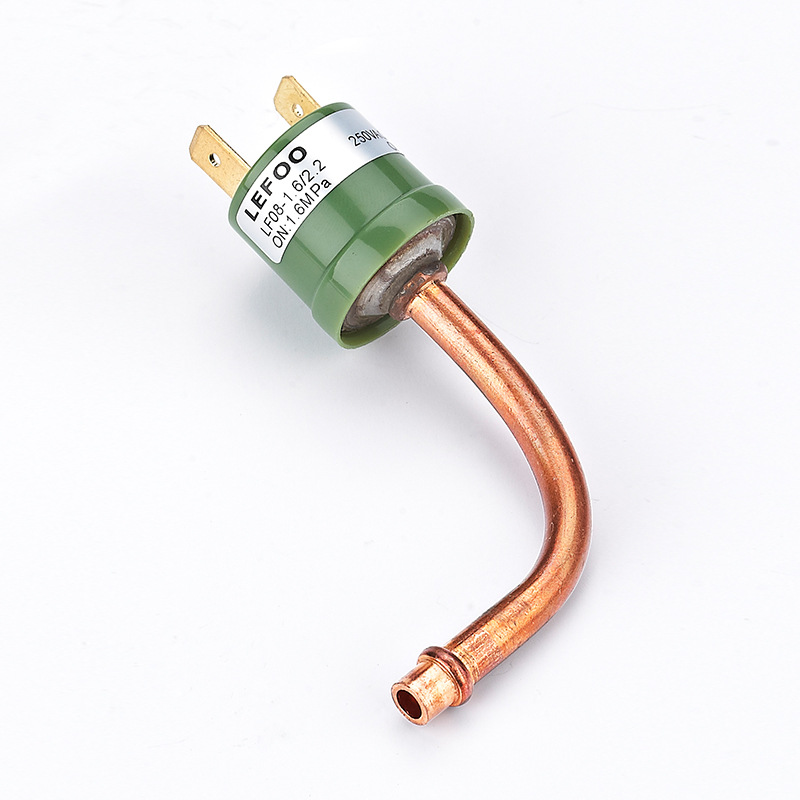

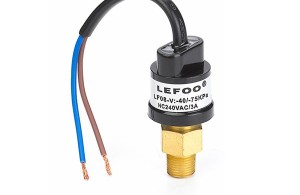

The LF08 switches are fixed set point, factory calibrated pressure switches. It is automatic reset, and can be Normally open or normally close contacts. All metallic wetted components make the LF08 switch compatible with a multitude of chemicals in liquid or gas form. It is offered numerous types of electrical terminations from different size and style push on terminals to wire leads with an array of standard industry connectors. In-house machining capabilities allows Lefoo pressure switch manufacturer to offer a wide variety of pressure fitting from different thread types and sizes to units with internal deflator and cupper tubing for sawing operations. For more selections of mechanical pressure switch.
| Model | LF08 | ||
| Average | Air, Water, engine oils, transmission oils, Hydrocarbon Media, Refrigeration fluid | ||
| Pressure Range/ Tolerance/ Proof Pressure | Action pressure | Tolerance | Proof Pressure |
| 0.2~6bar(low pressure) | +0.5bar | 15bar | |
| 6~ 10bar | +0.7bar | 35bar | |
| 11 ~ 20bar | +1bar | 45bar | |
| 21 ~ 30bar | +1.5bar | ||
| 31 ~ 45bar | +1.5bar | ||
| Burst Pressure | 5000psi | ||
| Operating Temperature Range | Environment temperature: low pressure:-30~ 65C ,High pressure:-35~120C; Medium temperature:-50~ 120 C | ||
| Switch Type | SPST(NC OR NO);SPDT | ||
| Electric Rating | 120Vac 6FLA,40.2LRA; 240Vac 4FLA,26LRA; 120/240Vac 375VA;36Vdc 3A | ||
| Endurance | 100000 | ||
| Connection | Please see the selection table (customizable) | ||
| Electrical connections | 6.35*0.8;4.8*0.8 ; Wire connection (can be customized length and electrical plug) | ||
