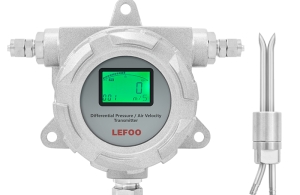

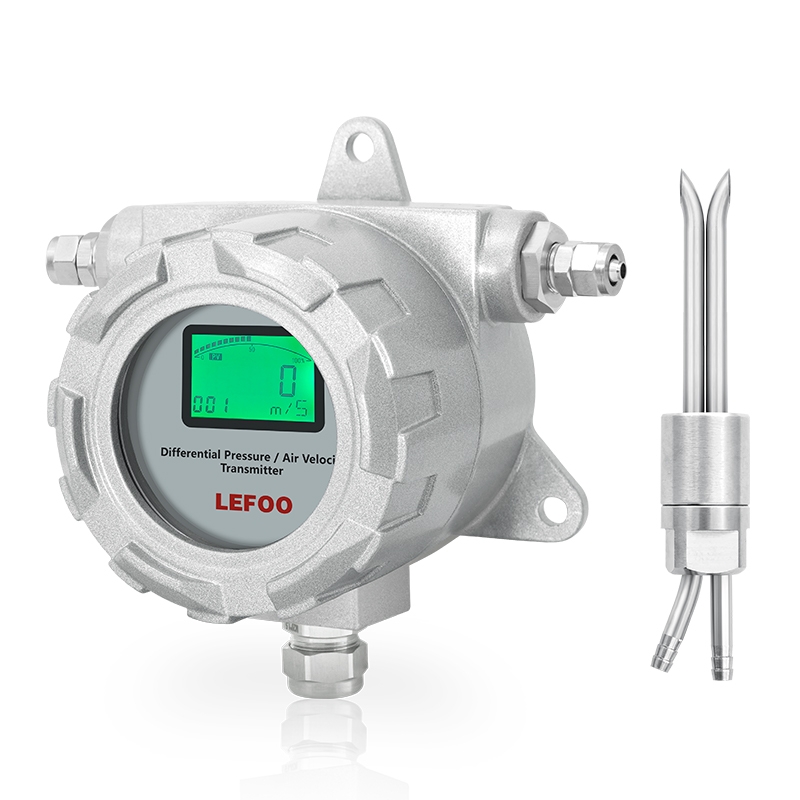

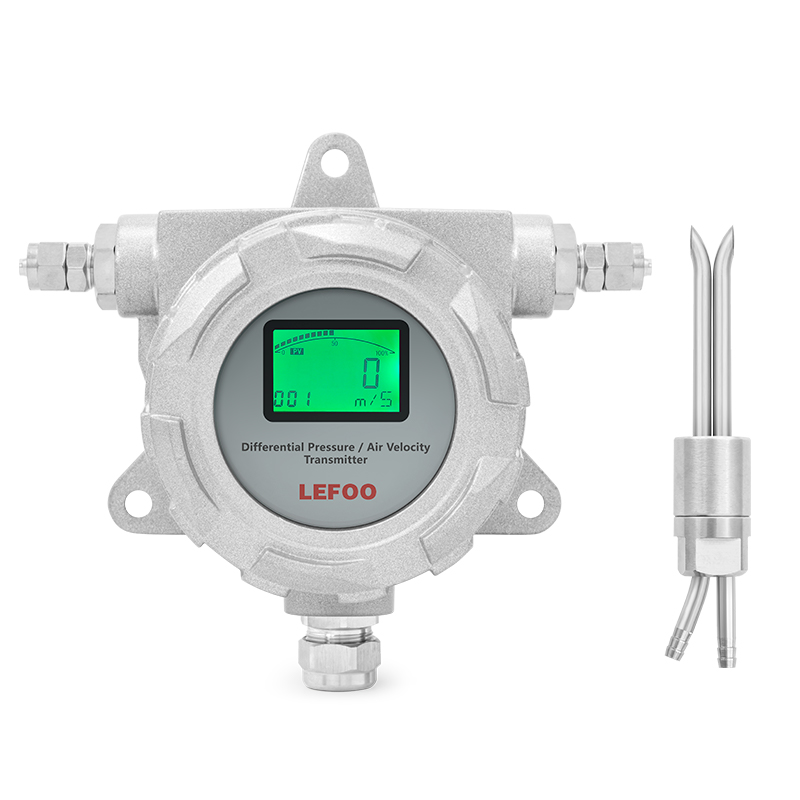

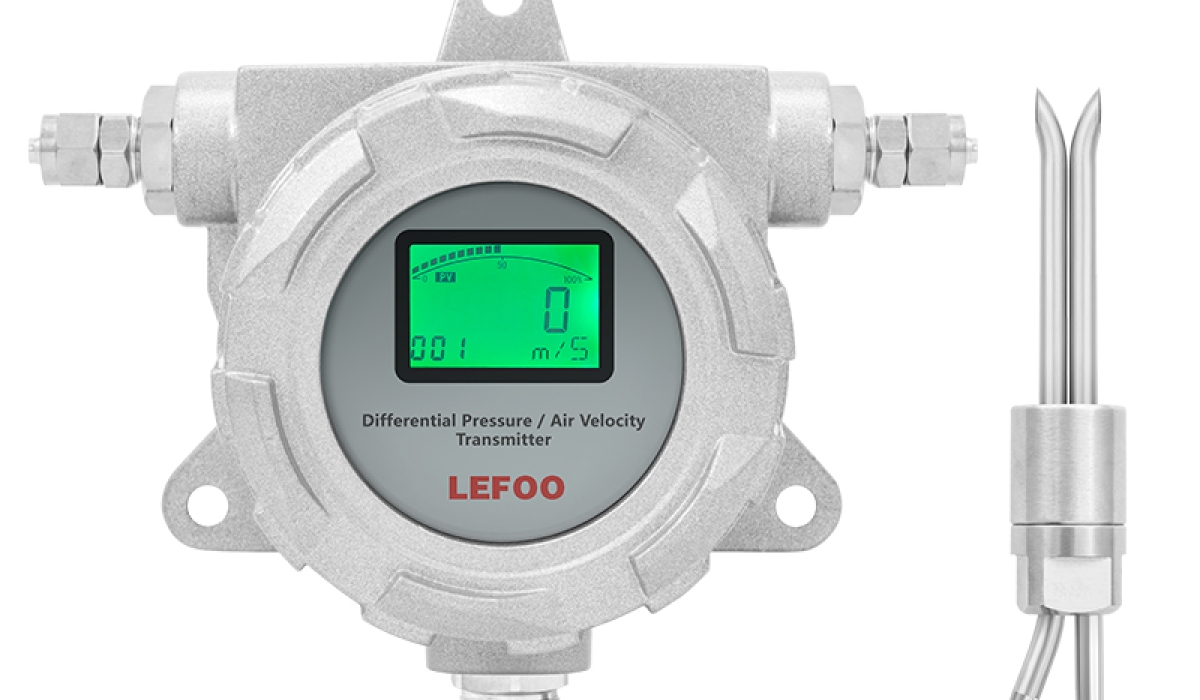

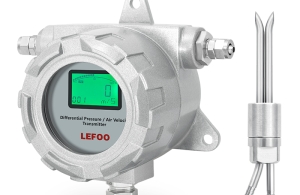

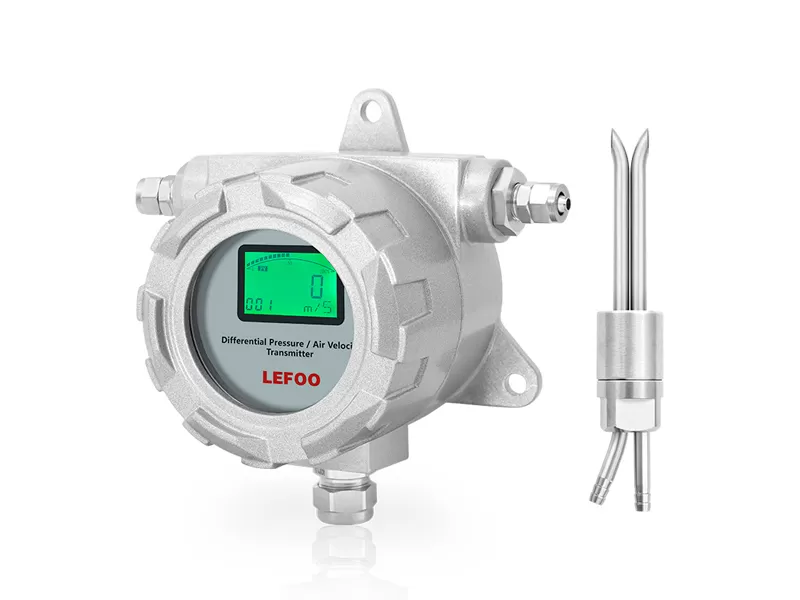

LFS71 Explosion-proof Air Velocity Transmitter is suitable for gas flow measurement in Explosion-proof environments. it can convert the flow rate of gas into an electrical signal and transmit it to the control system. The range can be adjusted on-site through buttons, and the lP65 protection grade casing is used. it is suitable for energy management systems, VAV and fan control, environmental pollution control, smoke hood control, oven and boiler ventilation control and other fields.
Features
* High-precision MEMS micro-pressure core, high precision and wide operating temperature range;
* Clear LCD digital display
* Zero button available on-site, wind speed range adjustable
* Strong stability and long service life
* lP65 protection grade housing
| Medium | Air or neutral gas |
| Range | Speed: 0~10 m/s,0~20 m/s,0~30 m/s, 0~40 m/s (Range can be customized.) |
| Over Voltage | 10KPa |
| Accuracy | ±3.0%FS(Speed >3 m/s) |
| Operating Temperature | Host machine: -20? ~80? ; Probe: -40? ~450? |
| Compensation Temperature | -10? ~60? |
| Storage Temperature | Host machine: -40? ~85? |
| Response Time | 0.5s (default) /1.0s /2s /4s |
| Protection Grade | IP65 |
| Pressure Connection | Stainless steel 1/2" quick connection |
| Signal Output | 4~20mA / 0~10VDC / RS485 |
| Power Supply(1) | 12~30VDC/ 24VAC±20% |
| Power Consumption | ≤1.5W |
| Shell Material | Cast Aluminum |
| Communication | RS-485 standard interface, Modbus RTU protocol |
| Certificates | ROHS, CE |
| Explosion-Proof Grade | EXd IIC T6 Gb |
| Display | LCD digital display |
| Weight (Approximate) | Host machine: 1238g |
(1) When the product is powered by AC power, it is recommended to use an isolated AC power supply.
