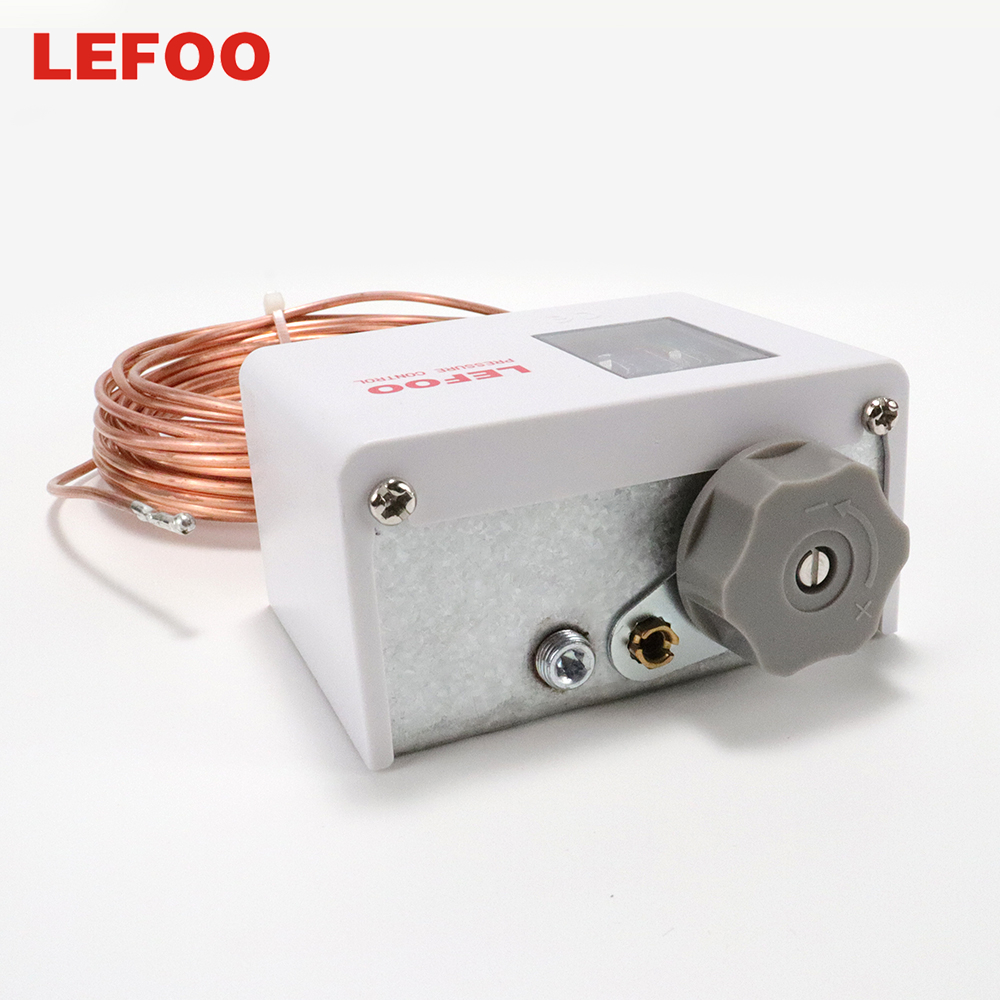

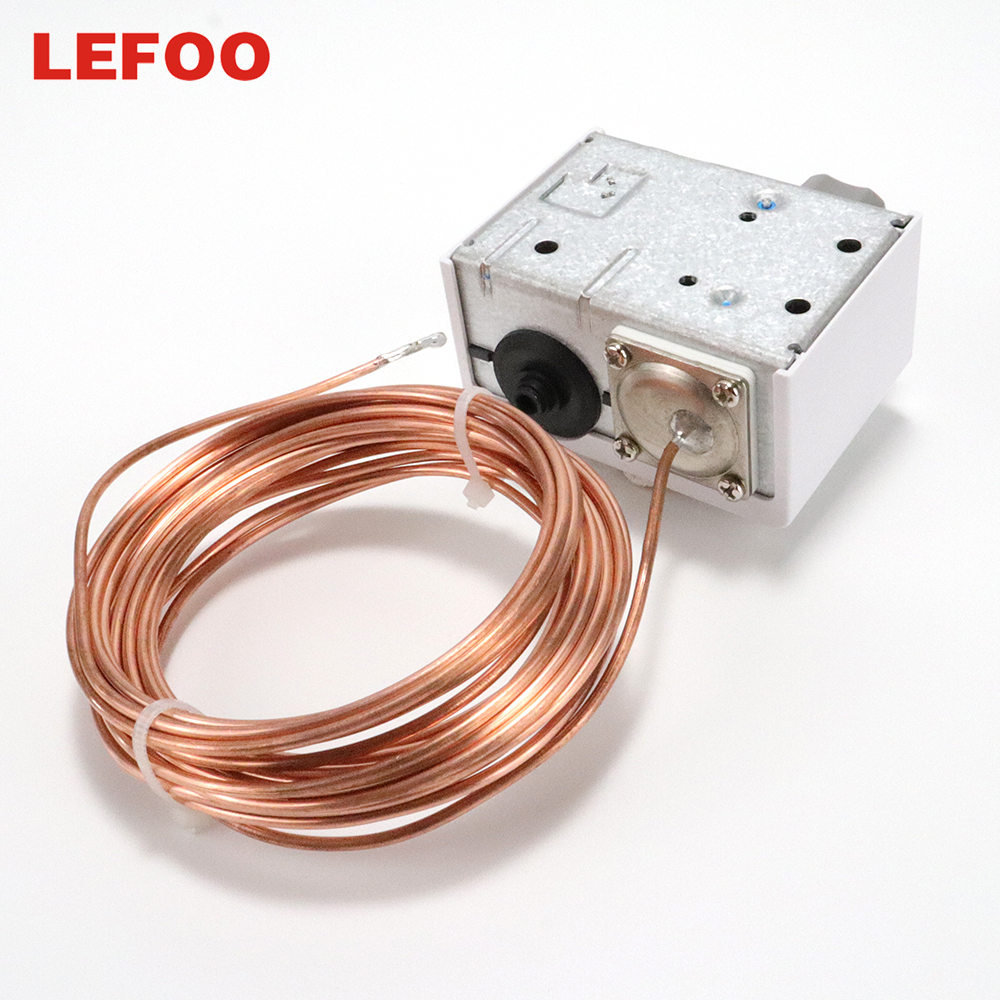

LF55T Temperature Switch, -40 ~ +120°C

The LF55T Ttemperaturecontrol switch which mainly controls the temperature control of the greenhouse.

LF55T are used for regulation, but can also be seen in safety monitoring systems. They are available with vapour charge or with adsorption charge. With vapour charge the differential is very small. The LF55T Thermostats with adsorption charge are widely used to give frost protection.

Specification

Modle	LF55T
Contact agreement	SPDT
Electrical rating	AC:A,V, DCW,V, Contact resistance≤mΩ
Contact material	static contact: fine silver, movable contact:Silver plated
Breakdown voltage	one min at 2000v no breakdown
Protection grade	IP30
Environment Temp	-25 ~+65°C
Media Temp	-40 ~+120°C
Mechanical lifespan	100k times
Electrical lifespan	30k times
Max installation torque	2 N/M
Capillary	Φ2.5, The minimum contacting length of the capillary and environment: 0.43m, Capillary length can be customized
Cable connection	Φ6-14 cable
